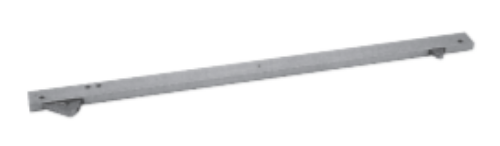

PDQ COORD-54 Door Coordinator - For Door Widths From 48"- 54"

About this item

PDQ COORD-54 Door Coordinator - For Door Widths From 48" - 54" - (Includes 1ea FB18 18" Filler Bar)

ANSI TYPE 21A

Coordinator size and length is a function of the active door size. It is recommended the coordinator extend a min of 6" beyond the active door width.
EXAMPLES:
1 - Active door = 48", inactive door with astragal = 36" Coordinator size = 48 + 6 = 54" = COORD60.
2 - Active door = 36", inactive door with astragal = 24" Coordinator size = 42 + 6 = 48" = COORD52.
3 - Active door = 36", inactive door with astragal = 36" Coordinator size = 36 + 6 = 42" = COORD42.

Features:

- Non-handed.
- Override protection to prevent damage in case of abnormal force on door.
- Mechanism and filler bar completely fill width of opening .
- Suitable for painting to match door and frame finish.
-  Meets requirements of the Buy American Act.
- SMARTSENSEcontrol board automatically accepts AC or DC input voltage.

Specifications:

BASE MATERIAL:
- Steel.
FASTENERS:
- 8 Ea. 12-24 x 1-1/4 PH MS.
- 6 Ea. #8 x 3⁄4" Combo Screws.
- Strike Plates.
COORDINATOR  SIZES:
- COR42: 1-5/8W" x 5⁄8"H x 42L".
- COR52: 1-5/8W" x 5/8"H x 52L".
- COR60: 1-5/8W" x 5/8"H x 60L".
FINISHES:
- 600 (USP) primer.
CERTIFICATIONS, LISTINGS, COMPLIANCES:
- UL listed for 3 hours for use with a pair of swing doors incorporating an astragal
-  Complies with ANSI/BHMA156.3 Type 21A.
-  Meets requirements of Buy American Act.

PDQ Door Coordinator, PDQ Coordinator, COORD54 PDQ, PDQ COORD54, COORD54
