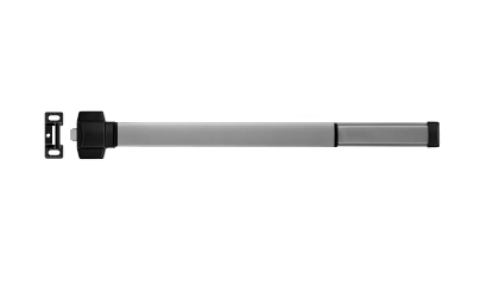

Precission 5100-689 (5103) Reliant Rim Exit Device - Aluminum

Precission 5100-689 (5103) Reliant Rim Exit Device - Aluminum

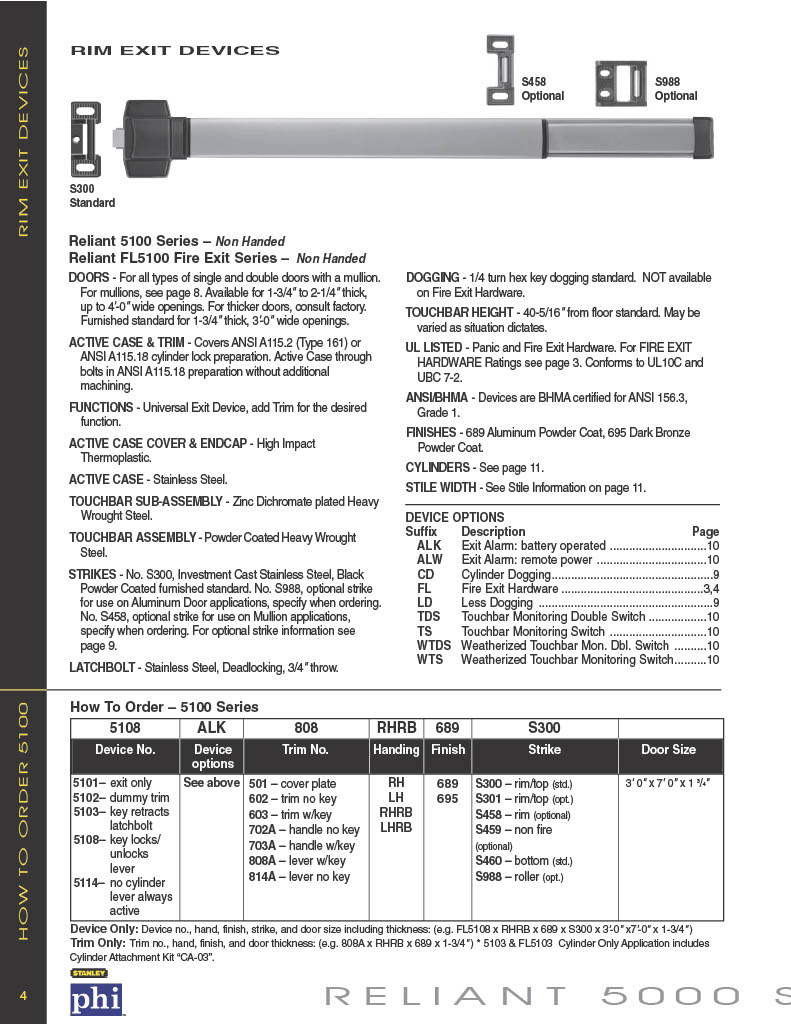

Model:5101,5102,5103,5105,5114,5115 Functions(models) are field selectable. The “03" function is furnished standard

Description and Features:

Door Sizes: 36" - 2'-7" to 3' Door Width 48" - 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Active Case & Trim:Covers ANSI A115.2 (Type 161) or ANSI A115.18 cylinder lock preparation. Active Case through bolts in ANSI A115.18 preparation without additional machining.

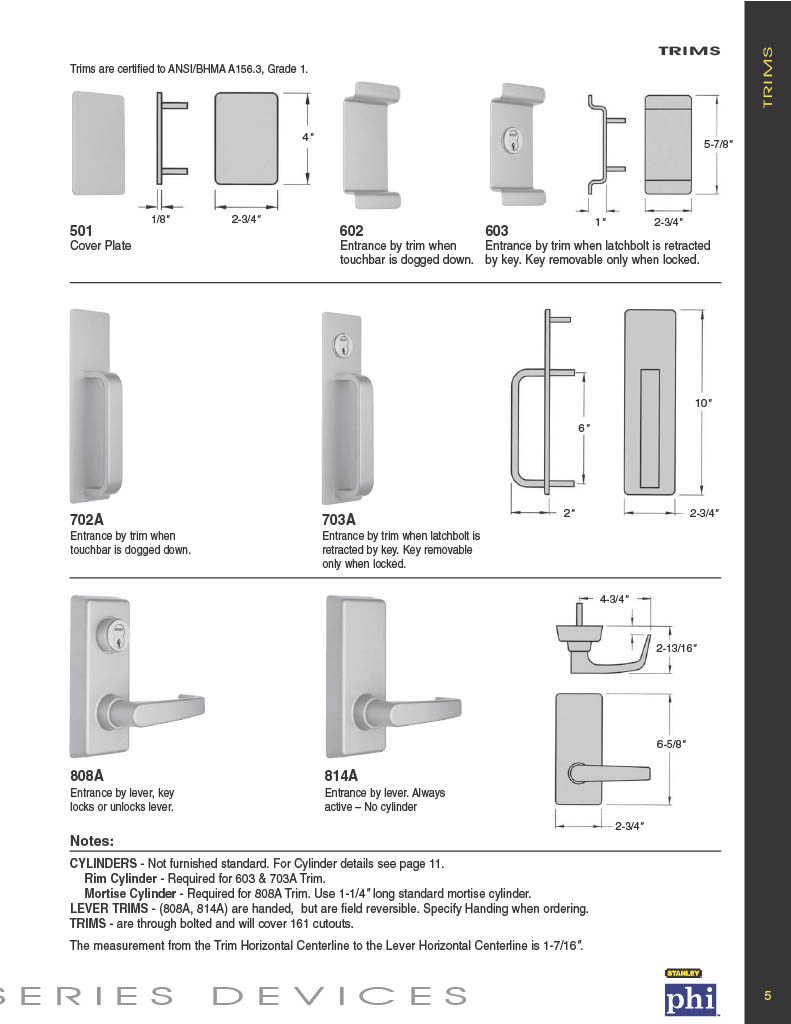

Functions: Universal Exit Device, add Trim for the desired function.

Active Case Cover & Endcap:High Impact Thermoplastic.

Active Case:Stainless Steel.

Touchbar Sub-Assembly:Zinc Dichromate plated Heavy Wrought Steel.

Touchbar Assembly:Powder Coated Heavy Wrought Steel.

Strikes: No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, No. S458, optional strike for use on Mullion applications.

Dogging: 1/4 turn hex key dogging standard.

Touchbar Height: - 40-5/16" from floor standard. May be varied as situation dictates.

Latchbolt: Stainless Steel, Deadlocking, 3/4" throw.

UL LISTED:Panic and Fire Exit Hardware.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

Stile Width:See Catalog Page # 36

Model:5101-689, 5102-689, 5103-689, 5105-689, 5114-689, 5115-689, 5101689, 5102689, 5103 689, 5105 689, 5114689, 5115-689

**
