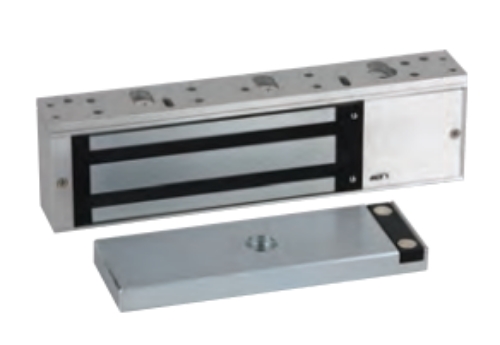

RCI 8310-IQ-28 IntelliMag Electromagnetic Lock For Single Doors

RCI (Rutherford) 8310-IQ-28 IntelliMag Electromagnetic Lock For Single Doors*- Brushed Anodized Aluminum*

Description And Features:

 For single outswinging interior or perimeter doors. 10-1/2"W x 2-7/8"H x 1-5/8"D (268mm x 73mm x 41mm) – Includes 1/4" (6mm) mounting bracket Armature Plate: 7-7/16"W x 2-3/8"H x 5/8"D (190mm x 61mm x 16mm) Mode: Fail-Safe Designed for high security applications, this intelligent magnet recognizes its own armature plate, preventing anyone from “tricking" themagnet with a separate plate – each encoded armature plate is individually registered to match its own electromagnetic lock Two independent relay outputs allow for lock status and alarm status for local and/or remote indication Illegal armature plate alarm Alarm time setting Adjustable keyhole mounting Easy-access wiring cavity Stabilizing 4-bolt “drop stop" mounting Built-in time delay (instant release with adjustable relock, programmable from 0-110 seconds) Includes 5/8" (16mm) armature plate Brushed Anodized Aluminum finish UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour California State Fire Marshal Listed (CSFM: 3774-2127:0100) Energy: 590mA1 Field-Selectable 12/24VDC Strength: Up To 1,500lbf Holding Force (Each Electromagnet) Warranty: Lifetime Limited Warranty Monitoring: Individually Encoded Armature Plate
