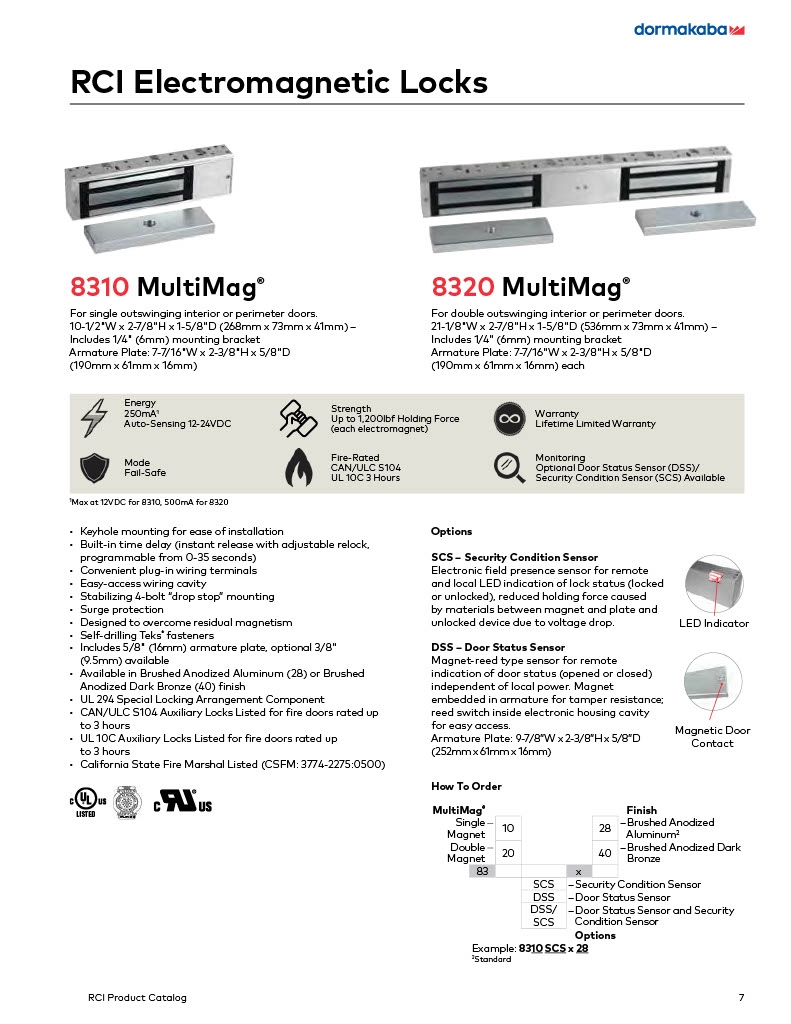

1-page7-RCI-03-24

Product Details

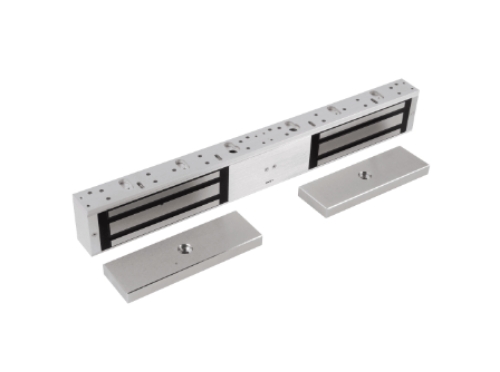

RCI 8320 MultiMag Electromagnetic Lock For Double Doors

Description And Features:

For double outswinging interior or perimeter doors. 21-1/8"W x 2-7/8"H x 1-5/8"D (536mm x 73mm x 41mm) – Includes 1/4" (6mm) mounting bracket Armature Plate: 7-7/16"W x 2-3/8"H x 5/8"D (190mm x 61mm x 16mm) each Mode: Fail-Safe Adjustable keyhole mounting Built-in time delay (instant release with adjustable relock, programmable from 0-90 seconds) Convenient plug-in wiring terminals Easy-access wiring cavity Stabilizing 4-bolt “drop stop" mounting MOV surge protection Designed to overcome residual magnetism Hardened steel armature nut Self-drilling Teks® fasteners Includes 5/8" (16mm) armature plate Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40) finish UL 294 Special Locking Arrangement Component (6th Edition) UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour California State Fire Marshal Listed (CSFM: 3774-2127:0100) Strength: Up To 1,500lbf Holding Force (Each Electromagnet) Energy: 280mA1, Field-Selectable 12/24VDC Warranty: Lifetime Limited WarrantyModel: 8320, 8320-28, 8320-40

RCI 8320 MultiMag Electromagnetic Lock For Double Doors

SKU: 8320

In Stock

$825.60

About this item

Resources

RCI_Product_Catalog-03-24.pdf

RCI 8320 MultiMag Electromagnetic Lock For Double Doors

Description And Features:

For double outswinging interior or perimeter doors. 21-1/8"W x 2-7/8"H x 1-5/8"D (536mm x 73mm x 41mm) – Includes 1/4" (6mm) mounting bracket Armature Plate: 7-7/16"W x 2-3/8"H x 5/8"D (190mm x 61mm x 16mm) each Mode: Fail-Safe Adjustable keyhole mounting Built-in time delay (instant release with adjustable relock, programmable from 0-90 seconds) Convenient plug-in wiring terminals Easy-access wiring cavity Stabilizing 4-bolt “drop stop" mounting MOV surge protection Designed to overcome residual magnetism Hardened steel armature nut Self-drilling Teks® fasteners Includes 5/8" (16mm) armature plate Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40) finish UL 294 Special Locking Arrangement Component (6th Edition) UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour California State Fire Marshal Listed (CSFM: 3774-2127:0100) Strength: Up To 1,500lbf Holding Force (Each Electromagnet) Energy: 280mA1, Field-Selectable 12/24VDC Warranty: Lifetime Limited WarrantyModel: 8320, 8320-28, 8320-40

8320 28

RCI 8320 MultiMag Electromagnetic Lock For Double Doors

Product code: 8320

In Stock

$825.60

$825.60

8320 28

RCI 8320 MultiMag Electromagnetic Lock For Double Doors

Product code: 8320

In Stock

$825.60

$825.60

RCI 8320 MultiMag Electromagnetic Lock For Double Doors

SKU: 8320

Parts & Accessories

RCI (Rutherford) AB-20 Angle Bracket - 1"H x 1"W x 21"L

Product code: W561BD

In Stock

$96.00

$61.44

RCI (Rutherford) AB-21 Angle Bracket - 1-1/2"H x 1"W x 21"L

Product code: W561BD

In Stock

$99.00

$63.36

RCI (Rutherford) AB-22 Angle Bracket - 1-1/2"H x 1-1/4"W x 21"L

Product code: W561BD

In Stock

$101.00

$64.64

armatureplateholders

RCI (Rutherford) AH20 Armature Plate Holder For 8320

Product code: W561BD

In Stock

$223.00

$142.72

RCI (Rutherford) FB-20 Filler Bar - 1/4"H x 3/4"W x 21"L

Product code: W561BD

In Stock

$82.00

$52.48

RCI (Rutherford) FB-21 Filler Bar - 3/8"H x 3/4"W x 21"L

Product code: W561BD

In Stock

$87.00

$55.68

RCI (Rutherford) FB-22 Filler Bar -1/2"H x 3/4"W x 21"L

Product code: W561BD

In Stock

$90.00

$57.60

RCI (Rutherford) FB-23 Filler Bar -5/8"H x 3/4"W x 21"L

Product code: W561BD

In Stock

$93.00

$59.52

RCI (Rutherford) FB-24 Filler Bar -1/2"H x 5/8"W x 21"L

Product code: W561BD

In Stock

$90.00

$57.60

glassdoorbracket

RCI (Rutherford) GB8212-32D Glass Door Bracket - 1/2" - Satin Stainless Steel

Product code: W561BD

In Stock

$450.00

$288.00

glassdoorbracket

RCI (Rutherford) GB8234-32D Glass Door Bracket - 3/4" - Satin Stainless Steel

Product code: W561BD

In Stock

$443.00

$283.52

RCI (Rutherford) LB-20, L Bracket - 2-1/2"H x 2"W x 21"L

Product code: W561BD

In Stock

$223.00

$142.72

RCI (Rutherford) SP-20 Spacer - 1/4"H x 1-1/2"W x 21"L

Product code: W561BD

In Stock

$82.00

$52.48

RCI (Rutherford) SP-21 Spacer - 3/8"H x 1-1/2"W x 21"L

Product code: W561BD

In Stock

$87.00

$55.68

RCI (Rutherford) SP-22 Spacer - 1/2"H x 1-1/2"W x 21"L

Product code: W561BD

In Stock

$90.00

$57.60

RCI (Rutherford) SP-23 Spacer - 5/8"H x 1-1/2"W x 21"L

Product code: W561BD

In Stock

$93.00

$59.52

RCI (Rutherford) TJ20 Top Jamb Z Bracket For 8320

Product code: W561BD

In Stock

$397.00

$254.08

Related products

RCI 8310 MultiMag Electromagnetic Lock For Single Doors

Product code: W561BD

In Stock

$648.00

$414.72

RCI 8320 MultiMag Electromagnetic Lock For Double Doors

Product code: W561BD

In Stock

$1,290.00

$825.60

RCI 8310-SCS MultiMag Electromagnetic Lock W/ Security Condition Sensor, For Single Doors

Product code: W561BD

In Stock

$790.00

$505.60

RCI 8310-DSS MultiMag Electromagnetic Lock W/ Door Status Sensor, For Single Doors

Product code: W561BD

In Stock

$759.00

$485.76

RCI 8310-DSS/SCS MultiMag Electromagnetic Lock For Single Doors

Product code: W561BD

In Stock

$881.00

$563.84

RCI 8320-2DSS MultiMag Electromagnetic Lock W/ Door Status Sensor, For Double Doors

Product code: W561BD

In Stock

$1,511.00

$967.04

RCI 8320-2SCS MultiMag Electromagnetic Lock W/ Security Condition Sensor, For Double Doors

Product code: W561BD

In Stock

$1,574.00

$1,007.36

RCI 8320-2DSS/2SCS MultiMag Electromagnetic Lock For Double Doors

Product code: W561BD

In Stock

$1,762.00

$1,127.68

RCI 8310-IQ-28 IntelliMag Electromagnetic Lock For Single Doors

Product code: W561BD

In Stock

$931.00

$595.84

RCI 8320-IQ IntelliMag Electromagnetic Lock For Double Doors

Product code: W561BD

In Stock

$1,858.00

$1,189.12
