Product Details

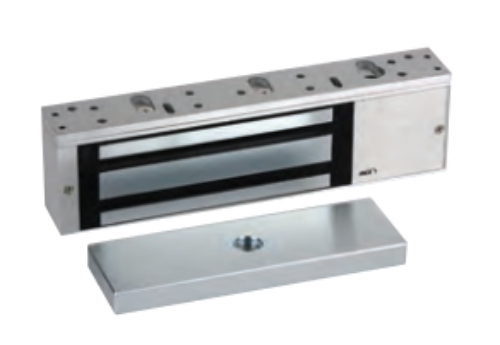

RCI 8310 MultiMag Electromagnetic Lock For Single Doors

Description And Features:

For single outswinging interior or perimeter doors. 10-1/2"W x 2-7/8"H x 1-5/8"D (268mm x 73mm x 41mm) – Includes 1/4" (6mm) mounting bracket Armature Plate: 7-7/16"W x 2-3/8"H x 5/8"D (190mm x 61mm x 16mm) Mode: Fail-Safe Adjustable keyhole mounting Built-in time delay (instant release with adjustable relock, programmable from 0-90 seconds) Convenient plug-in wiring terminals Easy-access wiring cavity Stabilizing 4-bolt “drop stop" mounting MOV surge protection Designed to overcome residual magnetism Hardened steel armature nut Self-drilling Teks® fasteners Includes 5/8" (16mm) armature plate Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40) finish UL 294 Special Locking Arrangement Component (6th Edition) UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour California State Fire Marshal Listed (CSFM: 3774-2127:0100) Strength: Up To 1,500lbf Holding Force (Each Electromagnet) Energy: 280mA1, Field-Selectable 12/24VDC Warranty: Lifetime Limited Warranty

Model: 8310, 8310-28, 8310-40

RCI 8310 MultiMag Electromagnetic Lock For Single Doors

SKU: 8310

In Stock

$434.16

About this item

Resources

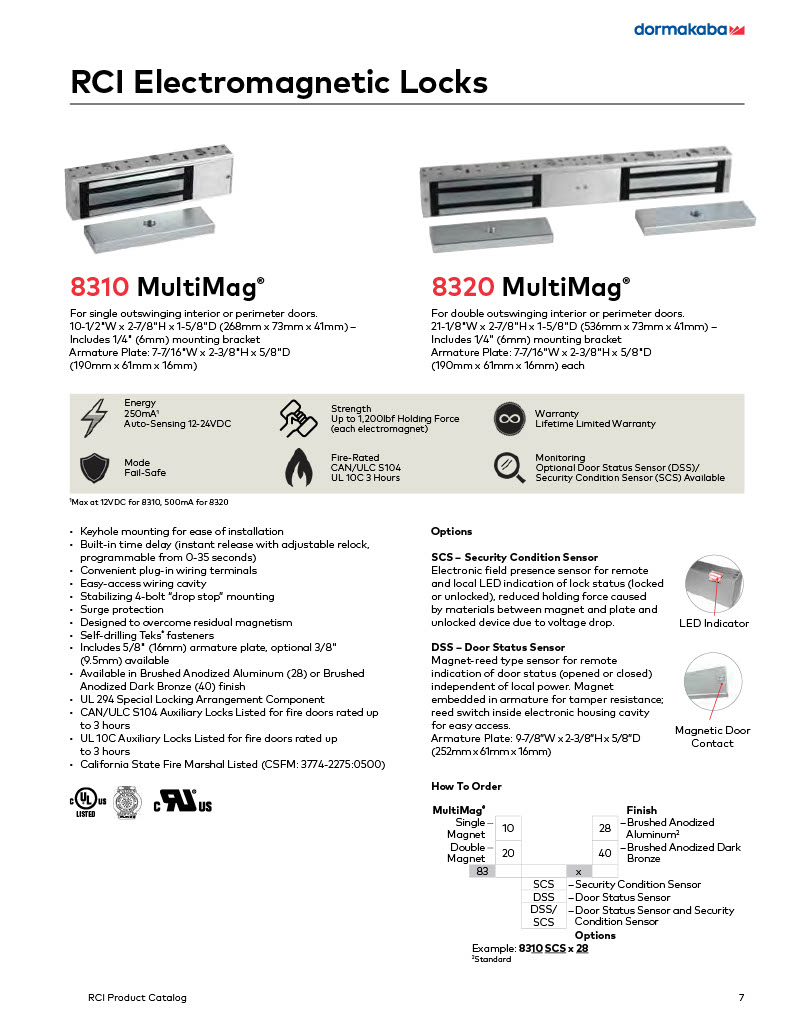

RCI_Product_Catalog-03-24.pdf

RCI 8310 MultiMag Electromagnetic Lock For Single Doors

Description And Features:

For single outswinging interior or perimeter doors. 10-1/2"W x 2-7/8"H x 1-5/8"D (268mm x 73mm x 41mm) – Includes 1/4" (6mm) mounting bracket Armature Plate: 7-7/16"W x 2-3/8"H x 5/8"D (190mm x 61mm x 16mm) Mode: Fail-Safe Adjustable keyhole mounting Built-in time delay (instant release with adjustable relock, programmable from 0-90 seconds) Convenient plug-in wiring terminals Easy-access wiring cavity Stabilizing 4-bolt “drop stop" mounting MOV surge protection Designed to overcome residual magnetism Hardened steel armature nut Self-drilling Teks® fasteners Includes 5/8" (16mm) armature plate Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40) finish UL 294 Special Locking Arrangement Component (6th Edition) UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour California State Fire Marshal Listed (CSFM: 3774-2127:0100) Strength: Up To 1,500lbf Holding Force (Each Electromagnet) Energy: 280mA1, Field-Selectable 12/24VDC Warranty: Lifetime Limited Warranty

Model: 8310, 8310-28, 8310-40

8310

RCI 8310 MultiMag Electromagnetic Lock For Single Doors

Product code: 8310

In Stock

$648.00

$434.16

8310

RCI 8310 MultiMag Electromagnetic Lock For Single Doors

Product code: 8310

In Stock

$648.00

$434.16

Parts & Accessories

RCI (Rutherford) AB-01 Angle Bracket - 1"H x 1"W x 10-1/2"L

Product code: W561BD

In Stock

$59.00

$39.53

RCI (Rutherford) AB-02 Angle Bracket - 1-1/2"H x 1"W x 10-1/2"L

Product code: W561BD

In Stock

$64.00

$42.88

RCI (Rutherford) AB-03 Angle Bracket - 1-1/2"H x 1-1/4"W x 10-1/2"L

Product code: W561BD

In Stock

$67.00

$44.89

RCI (Rutherford) CMB108-28 Conduit Mounting Bracket - 1"D x 2-11/64"H x 10-9/16"L

Product code: W561BD

In Stock

$100.00

$67.00

RCI (Rutherford) FB-01 Filler Bar - 1/4"H x 3/4"W x 10-1/2"L

Product code: W561BD

In Stock

$47.00

$31.49

RCI (Rutherford) FB-02 Filler Bar - 3/8"H x 3/4"W x 10-1/2"L

Product code: W561BD

In Stock

$49.00

$32.83

RCI (Rutherford) FB-03 Filler Bar - 1/2"H x 3/4"W x 10-1/2"L

Product code: W561BD

In Stock

$52.00

$34.84

RCI (Rutherford) FB-04 Filler Bar - 5/8"H x 3/4"W x 10-1/2"L

Product code: W561BD

In Stock

$54.00

$36.18

RCI (Rutherford) FB-05 Filler Bar - 1/2"H x 5/8"W x 10-1/2"L

Product code: W561BD

In Stock

$52.00

$34.84

glassdoorbracket

RCI (Rutherford) GB8112-32D Glass Door Bracket - Satin Stainless Steel

Product code: W561BD

In Stock

$229.00

$153.43

glassdoorbracket

RCI (Rutherford) GB8134-32D Glass Door Bracket - 3/4" - Satin Stainless Steel

Product code: W561BD

In Stock

$229.00

$153.43

RCI (Rutherford) LB-10, L Bracket - 2-1/2"H x 2"W x 10-1/2"L

Product code: W561BD

In Stock

$114.00

$76.38

RCI (Rutherford) SP-01 Spacer - 1/4"H x 1-1/2"W x 10-1/2"L

Product code: W561BD

In Stock

$47.00

$31.49

RCI (Rutherford) SP-02 Spacer - 3/8"H x 1-1/2"W x 10-1/2"L

Product code: W561BD

In Stock

$49.00

$32.83

RCI (Rutherford) SP-03 Spacer - 1/2"H x 1-1/2"W x 10-1/2"L

Product code: W561BD

In Stock

$52.00

$34.84

RCI (Rutherford) SP-04 Spacer - 5/8"H x 1-1/2"W x 10-1/2"L

Product code: W561BD

In Stock

$54.00

$36.18

RCI (Rutherford) SA138 Split Armature Plate - Steel - 3/8"

Product code: W561BD

In Stock

$107.00

$71.69

RCI (Rutherford) TJ10 Top Jamb Z Bracket For 8310

Product code: W561BD

In Stock

$200.00

$134.00

Related products

RCI 8310 MultiMag Electromagnetic Lock For Single Doors

Product code: W561BD

In Stock

$648.00

$434.16

RCI 8320 MultiMag Electromagnetic Lock For Double Doors

Product code: W561BD

In Stock

$1,290.00

$864.30

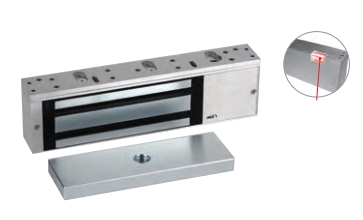

RCI 8310-SCS MultiMag Electromagnetic Lock W/ Security Condition Sensor, For Single Doors

Product code: W561BD

In Stock

$790.00

$529.30

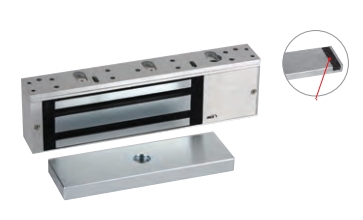

RCI 8310-DSS MultiMag Electromagnetic Lock W/ Door Status Sensor, For Single Doors

Product code: W561BD

In Stock

$759.00

$508.53

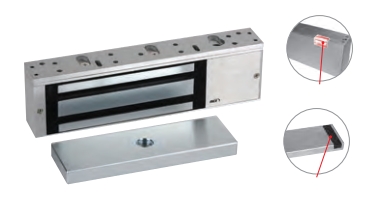

RCI 8310-DSS/SCS MultiMag Electromagnetic Lock For Single Doors

Product code: W561BD

In Stock

$881.00

$590.27

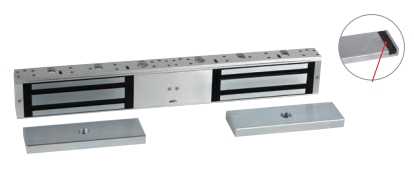

RCI 8320-2DSS MultiMag Electromagnetic Lock W/ Door Status Sensor, For Double Doors

Product code: W561BD

In Stock

$1,511.00

$1,012.37

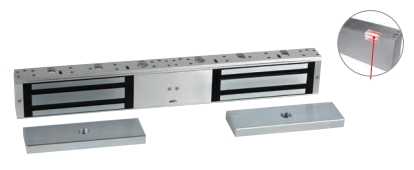

RCI 8320-2SCS MultiMag Electromagnetic Lock W/ Security Condition Sensor, For Double Doors

Product code: W561BD

In Stock

$1,574.00

$1,054.58

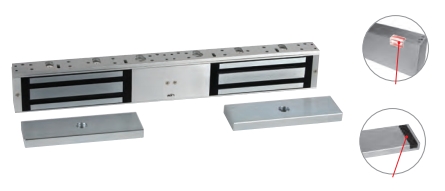

RCI 8320-2DSS/2SCS MultiMag Electromagnetic Lock For Double Doors

Product code: W561BD

In Stock

$1,762.00

$1,180.54

RCI 8310-IQ-28 IntelliMag Electromagnetic Lock For Single Doors

Product code: W561BD

In Stock

$931.00

$623.77

RCI 8320-IQ IntelliMag Electromagnetic Lock For Double Doors

Product code: W561BD

In Stock

$1,858.00

$1,244.86
