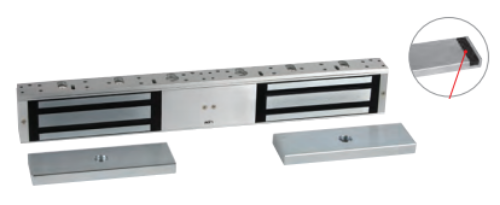

RCI 8320-2DSS MultiMag Electromagnetic Lock W/ Door Status Sensor, For Double Doors

RCI 8320-2DSS MultiMag Electromagnetic Lock W/ Door Status Sensor, For Double Doors

Description And Features:

 For double outswinging interior or perimeter doors. Door Status Sensor (DSS) - Magnet-reed type sensor for remote indication of door status (opened or closed) independent of local power. Magnet embedded in armature for tamper resistance; reed switch inside electronic housing cavity for easy access. 21-1/8"W x 2-7/8"H x 1-5/8"D (536mm x 73mm x 41mm) – Includes 1/4" (6mm) mounting bracket Armature Plate: 9-7/8"W x 2-3/8"H x 5/8"D (252mm x 61mm x 16mm) Mode: Fail-Safe Adjustable keyhole mounting Built-in time delay (instant release with adjustable relock, rogrammable from 0-90 seconds) Convenient plug-in wiring terminals Easy-access wiring cavity Stabilizing 4-bolt “drop stop" mounting MOV surge protection Designed to overcome residual magnetism Hardened steel armature nut Self-drilling Teks® fasteners Includes 5/8" (16mm) armature plate Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40) finish UL 294 Special Locking Arrangement Component (6th Edition) UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour California State Fire Marshal Listed (CSFM: 3774-2127:0100) Strength: Up To 1,500lbf Holding Force (Each Electromagnet) Energy: 280mA1, Field-Selectable 12/24VDC Warranty: Lifetime Limited WarrantyModel:8320, 8320-2DSS-28, 8320DSS-40, 83202DSS, 83202DSS28, 8320-DSS-40
