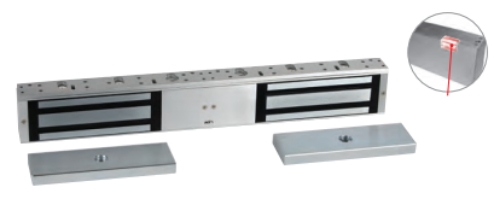

RCI 8320-2SCS MultiMag Electromagnetic Lock W/ Security Condition Sensor, For Double Doors

RCI 8320-2SCS MultiMag Electromagnetic Lock W/ Security Condition Sensor, For Double Doors

Description And Features:

 For double outswinging interior or perimeter doors.  Security Condition Sensor (SCS) - Electronic field presence sensor for remote and local LED indication of lock status (locked or unlocked), reduced holding force caused by materials between magnet and plate and unlocked device due to current loss. 21-1/8"W x 2-7/8"H x 1-5/8"D (536mm x 73mm x 41mm) – Includes 1/4" (6mm) mounting bracket Armature Plate: 7-7/16"W x 2-3/8"H x 5/8"D (190mm x 61mm x 16mm) each Mode: Fail-Safe Adjustable keyhole mounting Built-in time delay (instant release with adjustable relock, programmable from 0-90 seconds) Convenient plug-in wiring terminals Easy-access wiring cavity Stabilizing 4-bolt “drop stop" mounting MOV surge protection Designed to overcome residual magnetism Hardened steel armature nut Self-drilling Teks® fasteners Includes 5/8" (16mm) armature plate Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40) finish UL 294 Special Locking Arrangement Component (6th Edition) UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour California State Fire Marshal Listed (CSFM: 3774-2127:0100) Strength: Up To 1,500lbf Holding Force (Each Electromagnet) Energy: 280mA1, Field-Selectable 12/24VDC Warranty: Lifetime Limited WarrantyModel:8320, 8320-2SCS-28, 8320DSS-40, 83202SCS, 83202SCS28, 8320-SCS-40
