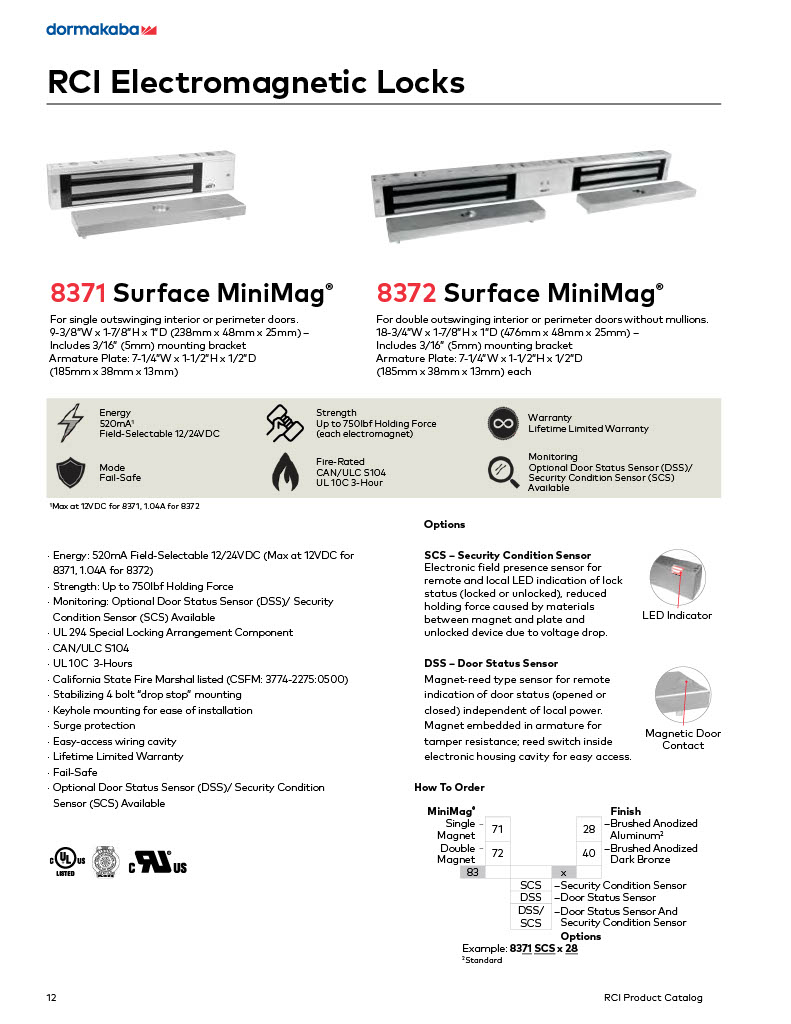

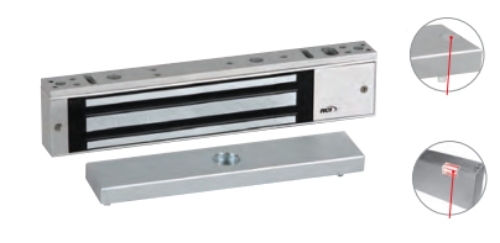

RCI 8371-DSS/SCS Surface MiniMag Electromagnetic Lock, For Single Doors

RCI ( Rutherford) 8371-DSS/SCS Surface MiniMag Electromagnetic Lock W/ Door Status Sensor &*Security Condition Sensor*, For Single Doors

Description And Features:

 For single outswinging interior doors.Door Status Sensor (DSS)– Magnet-reed type sensor for remote indication of door status (opened or closed) independent of local power. Magnet embeddedin armature for tamper resistance; reed switch inside electronic housing cavity for easy access.Security Condition Sensor (SCS)– Electronic field presence sensor for remote and local LED indication of lock status (locked or unlocked), reduced holdingforce caused by materials between magnet and plate and unlocked device due to current loss. 9-3/8"W x 1-7/8"H x 1"D (238mm x 48mm x 25mm) – Includes 3/16" (5mm) mounting bracket Armature Plate: 7-1/4"W x 1-1/2"H x 1/2"D (185mm x 38mm x 13mm) Mode: Fail-Safe Stabilizing 4 bolt “drop stop" mountingAdjustable keyhole mounting Surge protection Designed to overcome residual magnetism Easy-access wiring cavity Hardened steel armature nut Includes 3/8" (9.5mm) armature plate Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40) finish UL 294 Special Locking Arrangement Component (6th Edition) UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour California State Fire Marshal Listed (CSFM: 3774-2127:0100) Warranty: Lifetime Limited Warranty Fire-Rated: CAN/ULC S104, UL 10C 1-Hour Strength: Up To 750lbf Holding Force Energy: 520mA1, Field-Selectable 12/24VDC Model:8371, 8371DSS/SCS-28, 8371DSS-SCS-40, 8371DSS/SCS28, 8371DSS/SCS40, 8371-DSS/SCS-28, 8371-DSS-SCS-40
