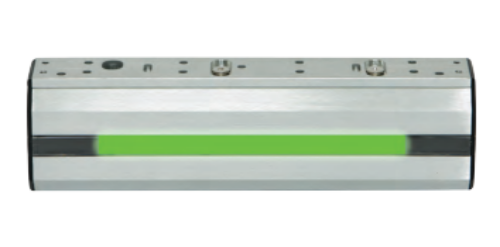

RCI EW8310-28 Early Warning Electromagnetic Lock For Single Doors

About this item

RCI (Rutherford) EW8310-28 Early Warning Electromagnetic Lock For Single Doors - Brushed Anodized Aluminum

Description And Features:

• For single outswinging perimeter doors.

• 10-13/16"W x 2-7/8"H x 2-1/8"D (275mm x 73mm x 54mm) – Includes 1/4" (6mm) mounting bracket

• Armature Plate: 7-7/16"W x 2-3/8"H x 5/8"D (190mm x 61mm x 16mm)

• Mode: Fail-Safe

• Built-in sensor detects door movement and initiates a local and/or remote alarm prior to the integrity of the door being compromised

• Unique highly visible red/green light panel indicates status of door (local)

• Built-in security condition sensor indicates that the door is closed, bonded and that the electromagnetic lock is functioning normally

• Dry contact SPDT and DPDT relays provided for local and/or remote monitoring

• Nuisance delay feature accommodates accidental triggering

• Adjustable keyhole mounting

• Convenient plug-in wiring harnesses

• Easy-access wiring cavity

• Stabilizing 4-bolt “drop stop" mounting

• Surge protection

• Designed to overcome residual magnetism

• Hardened steel armature nut

• Includes self-drilling Teks® fasteners

• Includes 5/8" (16mm) armature plate

• Brushed Anodized Aluminum (28) finish

• UL 10C Auxiliary Locks Listed for fire doors rated up to 1-1/2-hour

• Fire-Rated: CAN/ULC S104, UL 10C 1-1/2-Hour

• Strength: Up To 1,200lbf Holding Force

• Energy: 580mA1, Field-Selectable 12/24VDC

• Monitoring: Built-In Security Condition Sensor

• Warranty: 10 Year Limited Warranty
