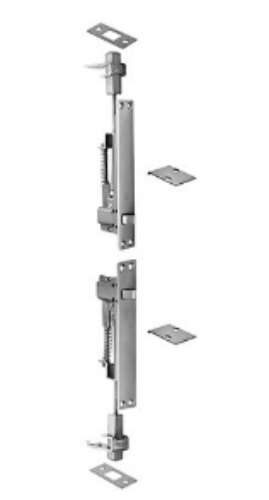

Rockwood 2842 Automatic Flush Bolt Set - Metal Doors

About this item

Rockwood 2842 Automatic Flush Bolt Set - Metal Doors

Material: Brass, Stainless Steel

Features:

For Metal Doors Fire Rated up to and Including 3 Hours, up to 4'w x 8'h

Non-handed

Fully automatic–opening active door retracts top and bottom bolts

Low closing force

Override feature prevents damage to doors or bolts if bolt heads are blocked from entering strikes

Bolt head rods are adjustable up to 1-1/2"

Thermal lock automatically locks the inactive door under high heat conditions due to fire

UL Listed

Options: Can be used with the No. 570 Dust Proof Strike

Fastener: 20 ea. #8 x 3⁄4" FH combo screws, 2 ea. #6 - 8 plastic anchors

Size: 1" x 6-3/4"

ANSI A156.3: Type 25

Model: 2842-US26D, 2842-US32D, 2842US26D, 2842US32D
