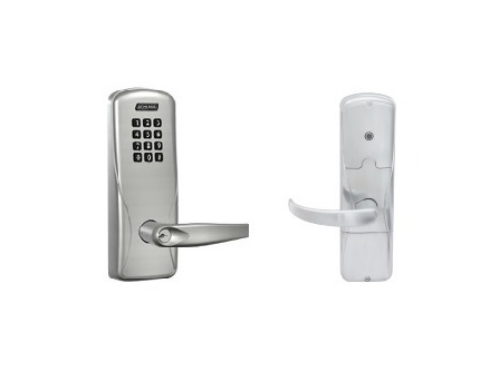

Schlage AD-200-CY-40-KP Cylindrical Keypad Standalone Electronic Lock W/ Audit Trail - Privacy Function

AD-200

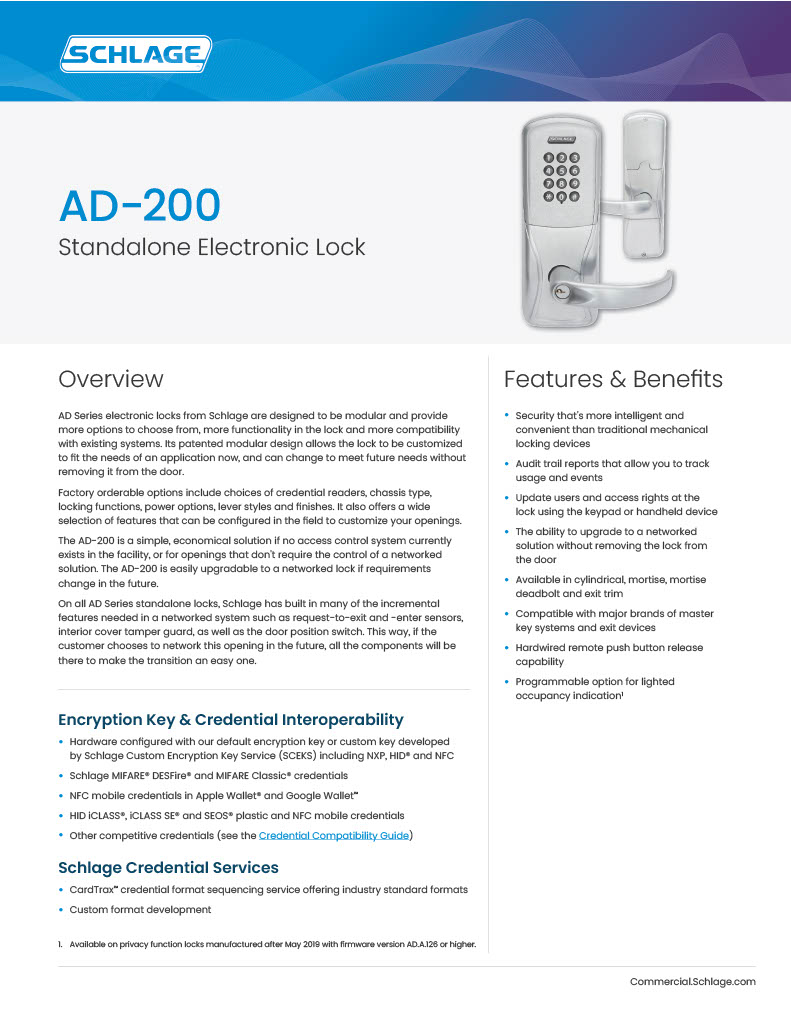

1-Page1-AD-200

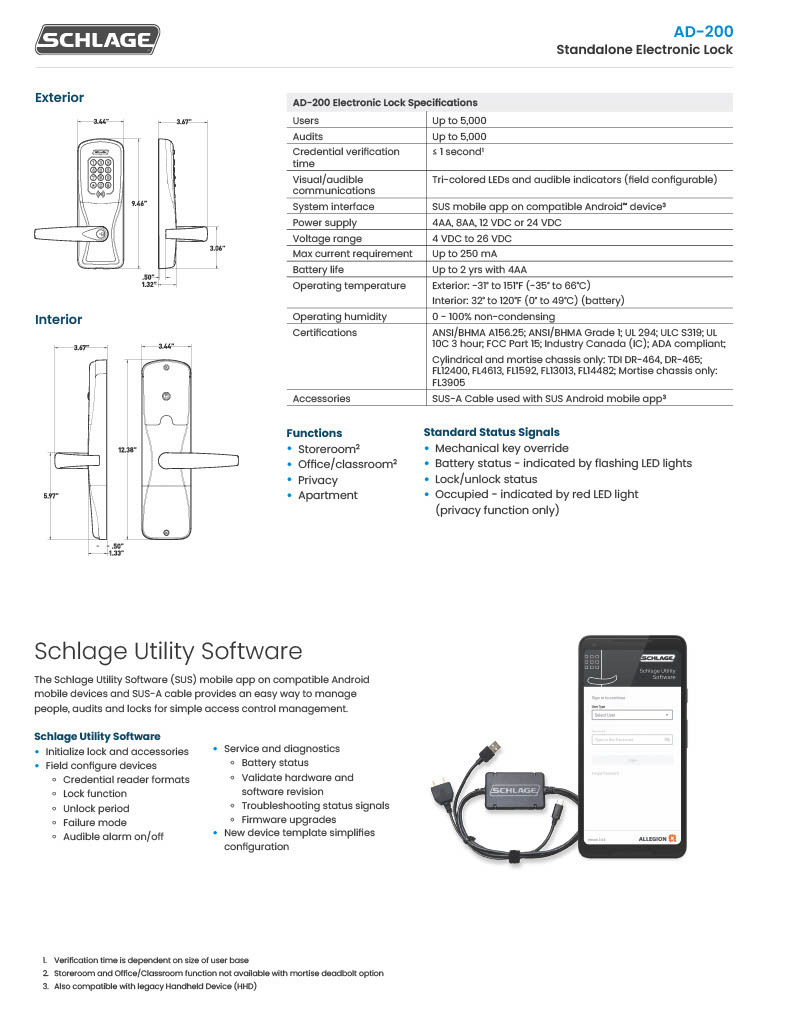

1-Page2-AD-200

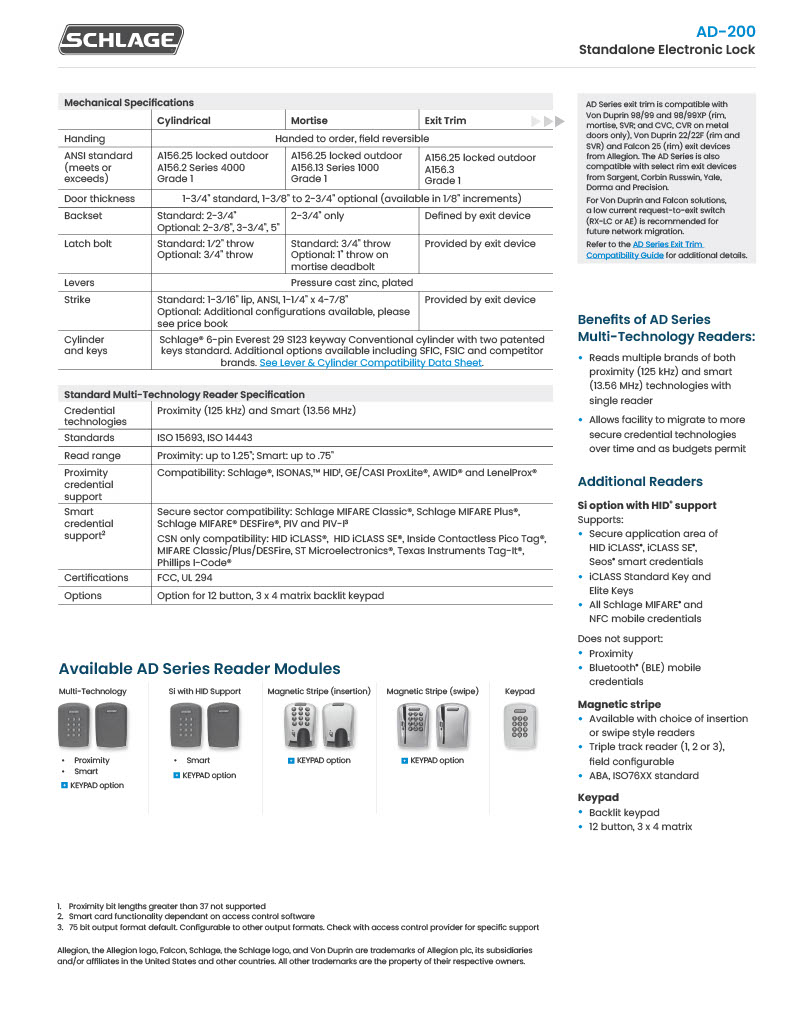

1-Page3-AD-200

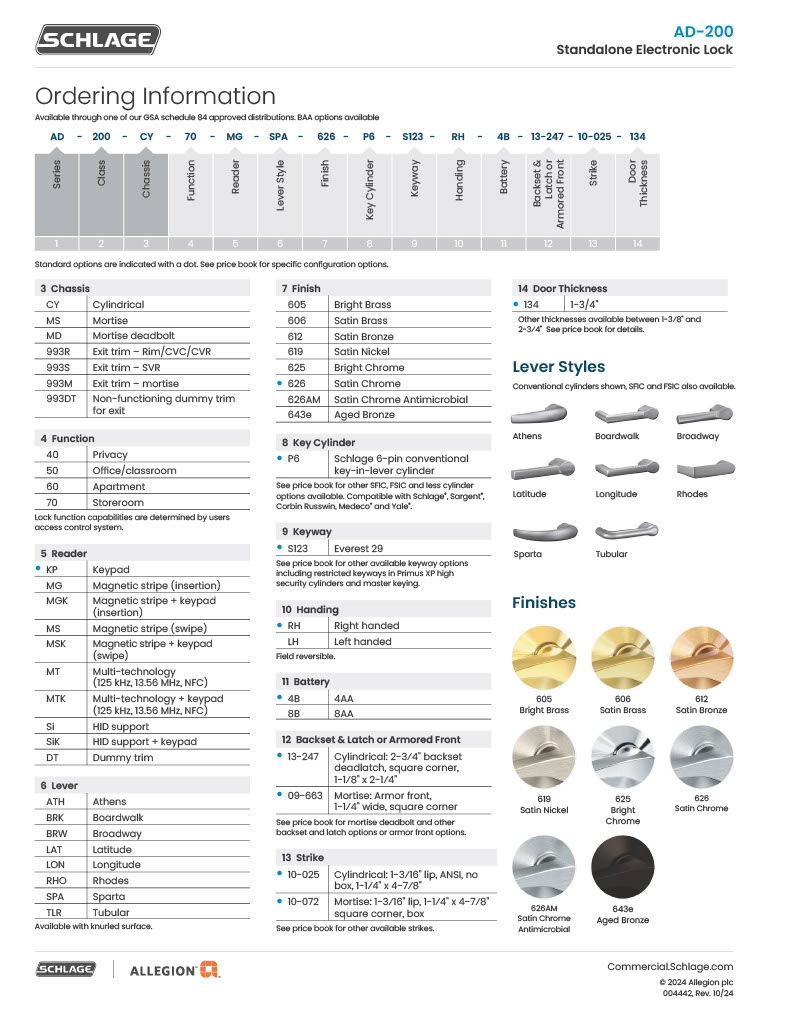

1-Page4-AD-200
AD-200
1-Page1-AD-200
1-Page2-AD-200
1-Page3-AD-200
1-Page4-AD-200
naxt
prev

Product Details

Schlage AD-200-CY-40-KP Cylindrical Keypad Standalone Electronic Lock W/ Audit Trail - Privacy Function

Audit trail reports that allow you to track usage and events

Update users and access rights at the lock using the keypad or handheld device

The Schlage Utility Software (SUS) mobile app for Android devices is designed specifically for use with the SUS-A cable to set up and act as the link between access control software and select Schlage electronic locks and accessories. This new SUS mobile app and cable replaces the previous SUS solution using a Handheld Device(HHD).  (sold  separately, Click Hare)

Lever Styles: Sparta, Rhodes, Athens, Tubular.

**

**

**



Privacy (40)

Lockset is normally secure. Inside lever always allows free egress.

Interior pushbutton on inside housing may be used to select a privacy status.

The interior pushbutton will disable normal electronic access from the exterior.

Opening the door or pressing the interior pushbutton a second time on the inside housing deactivates the privacy status.

Electronical specifications

12 button keypad  - 3 x 4 Matrix - Backlit keypad

Up to 5000 Users & up to 5000 Audits

Credential verification time ≤ 1 second*

Tri-colored LEDs and audible indicators (field configurable)

Power Supply: 4 AA batteries (standard off the shelf: included)

Voltage range: 4 VDC to 26 VDC

Max current requirement Up to 250 mA

Battery life Up to 2 yrs with 4AA

Operating temperature - exterior -31 Degree to 151 *Degree F (-35 Degree to 66 Degree *C)

Operating temperature - interior 32* Degree to 120 Degree F (0 Degree to 49 Degree *C) (battery)

Operating humidity 0 - 100% non-condensing

Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS

** Mechanical specifications

Handing: Field reversible

ANSI standard: Meets or exceeds A156.25 and A156.2 Series 4000, Grade 1 strength and operational requirements

Door thickness: 1 3⁄4" standard, 1 3⁄8" to 2 3⁄4" optional (available in 1⁄8" increments)

Backset: 2 3⁄4" standard, 2 3⁄8", 3 3⁄4" and 5" optional

Latch bolt: 1⁄2" throw security latch standard 3⁄4" throw optional

Levers: Pressure cast zinc, plated to match finish symbols

Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" x 1-3⁄16" lip to center standard

**Model:Schlage AD200CY40KPRHO626PD, AD200CY40KPRHO626BD, AD200CY40KPRHO626JD

Schlage AD200CY40KPSPA626PD, AD200CY40KPSPA626BD, AD200CY40KPSPA626JD

Schlage AD200CY40KPATH626PD, AD200CY40KPATH626BD, AD200CY40KPATH626JD

Schlage AD200CY40KPTLR626PD, AD200CY40KPTLR626BD, AD200CY40KPTLR626JD

Schlage AD-200-CY-40-KP Cylindrical Keypad Standalone Electronic Lock W/ Audit Trail - Privacy Function

SKU: AD200CY40KP

In Stock
icon Chat
Picture for manufacturer Schlage

Lever *

RHO - Rhodes Lever
RHO - Rhodes Lever
SPA - Sparta Lever
SPA - Sparta Lever
ATH - Athens Lever
ATH - Athens Lever
TLR - Tubular Lever
TLR - Tubular Lever

Finish *

626 - Satin Chrome
626 - Satin Chrome
605 - Bright Brass [+$76.20]
605 - Bright Brass [+$76.20]
606 - Satin Brass [+$76.20]
606 - Satin Brass [+$76.20]
612 - Satin Bronze [+$76.20]
612 - Satin Bronze [+$76.20]
643E - Aged Bronze [+$76.20]
643E - Aged Bronze [+$76.20]
625 - Bright Chrome [+$76.20]
625 - Bright Chrome [+$76.20]

Cylinder *

PD - Standard Cylinder
PD - Standard Cylinder
BD - Accepts Small format IC core - less core
BD - Accepts Small format IC core - less core
JD - Accepts Large format IC core - less core [-$19.20]
JD - Accepts Large format IC core - less core [-$19.20]
LD - Accepts Standard Cylinder - less Cylinder [-$34.80]
LD - Accepts Standard Cylinder - less Cylinder [-$34.80]

$1,779.49

$2,684.00

You saved $904.51

About this item

AD-Series standalone locks are a cost-effective way to upgrade from traditional mechanical locking devices. They allow you to easily add and delete users, track usage and manage data – all without installing a facility-wide network. This gives you more control and allows you to manage your system more efficiently than with a traditional mechanical system.

Resources

Schlage AD-200-CY-40-KP Cylindrical Keypad Standalone Electronic Lock W/ Audit Trail - Privacy Function

Audit trail reports that allow you to track usage and events

Update users and access rights at the lock using the keypad or handheld device

The Schlage Utility Software (SUS) mobile app for Android devices is designed specifically for use with the SUS-A cable to set up and act as the link between access control software and select Schlage electronic locks and accessories. This new SUS mobile app and cable replaces the previous SUS solution using a Handheld Device(HHD).  (sold  separately, Click Hare)

Lever Styles: Sparta, Rhodes, Athens, Tubular.

**

**

**



Privacy (40)

Lockset is normally secure. Inside lever always allows free egress.

Interior pushbutton on inside housing may be used to select a privacy status.

The interior pushbutton will disable normal electronic access from the exterior.

Opening the door or pressing the interior pushbutton a second time on the inside housing deactivates the privacy status.

Electronical specifications

12 button keypad  - 3 x 4 Matrix - Backlit keypad

Up to 5000 Users & up to 5000 Audits

Credential verification time ≤ 1 second*

Tri-colored LEDs and audible indicators (field configurable)

Power Supply: 4 AA batteries (standard off the shelf: included)

Voltage range: 4 VDC to 26 VDC

Max current requirement Up to 250 mA

Battery life Up to 2 yrs with 4AA

Operating temperature - exterior -31 Degree to 151 *Degree F (-35 Degree to 66 Degree *C)

Operating temperature - interior 32* Degree to 120 Degree F (0 Degree to 49 Degree *C) (battery)

Operating humidity 0 - 100% non-condensing

Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS

** Mechanical specifications

Handing: Field reversible

ANSI standard: Meets or exceeds A156.25 and A156.2 Series 4000, Grade 1 strength and operational requirements

Door thickness: 1 3⁄4" standard, 1 3⁄8" to 2 3⁄4" optional (available in 1⁄8" increments)

Backset: 2 3⁄4" standard, 2 3⁄8", 3 3⁄4" and 5" optional

Latch bolt: 1⁄2" throw security latch standard 3⁄4" throw optional

Levers: Pressure cast zinc, plated to match finish symbols

Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" x 1-3⁄16" lip to center standard

**Model:Schlage AD200CY40KPRHO626PD, AD200CY40KPRHO626BD, AD200CY40KPRHO626JD

Schlage AD200CY40KPSPA626PD, AD200CY40KPSPA626BD, AD200CY40KPSPA626JD

Schlage AD200CY40KPATH626PD, AD200CY40KPATH626BD, AD200CY40KPATH626JD

Schlage AD200CY40KPTLR626PD, AD200CY40KPTLR626BD, AD200CY40KPTLR626JD
