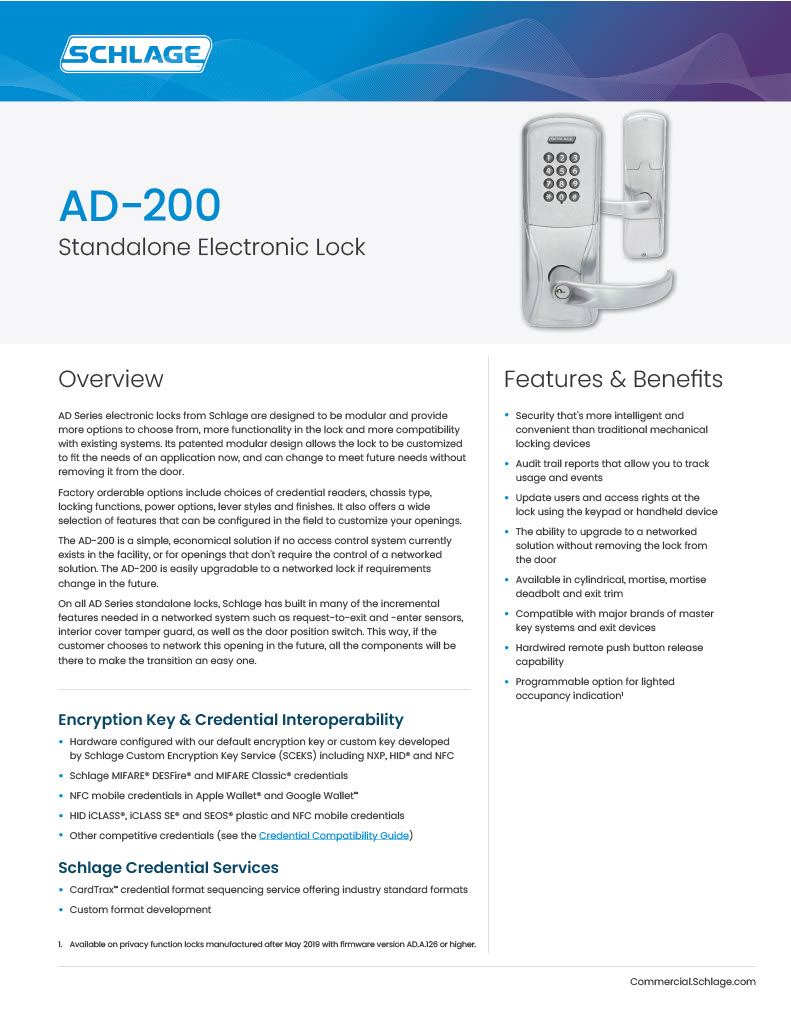

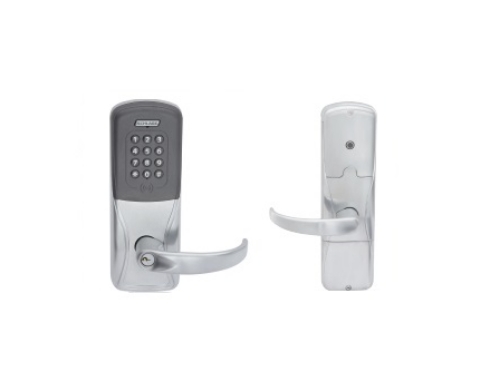

Schlage AD-200-CY-50-MTK Cylindrical Multi-technology with Keypad Electronic Lock W/ Audit Trail - Office Function

Schlage AD-200-CY-50-MTK Cylindrical Multi-technology with Keypad Electronic Lock W/ Audit Trail - Office Function

Reads both proximity (125 kHz) and smart (13.56 MHz) technologies with single device

Audit trail reports that allow you to track usage and events

Update users and access rights at the lock using the keypad or handheld device

The Handheld Device (HHD) used in conjunction with your access control software, allows you to easily add or delete users and retrieve audits.(sold separately)

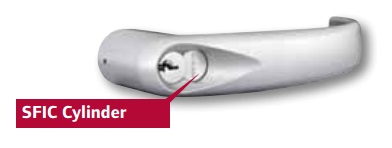

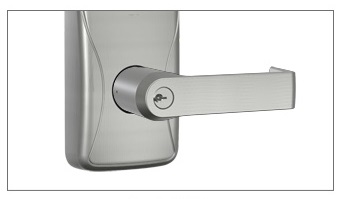

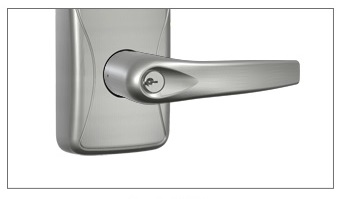

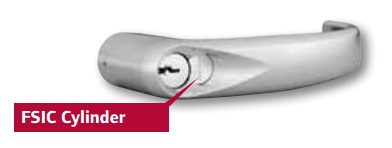

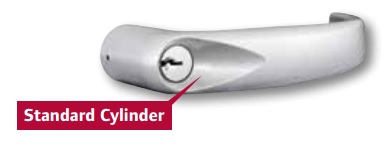

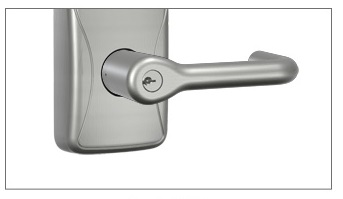

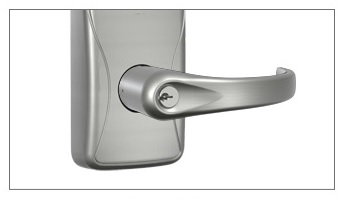

Lever Styles: Sparta, Rhodes, Athens, Tubular.

**

**

**

Office (50)

Lockset is normally secure. Inside lever always allows free egress.

Interior pushbutton on inside housing may be used to select a passage or secured status.

Meets need for lockdown function for safety and security.

NOTE: Valid toggle credentials on the exterior may also be used to change status.

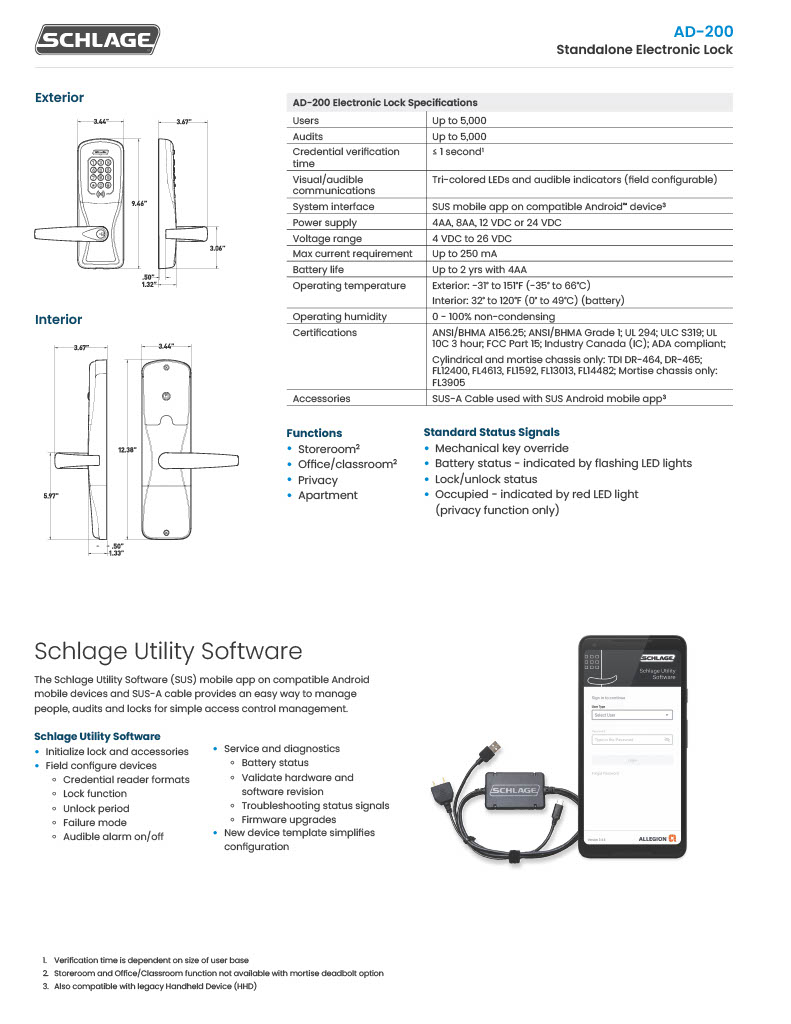

Electronical specifications

12 button keypad  - 3 x 4 Matrix - Backlit keypad

Up to 5000 Users & up to 5000 Audits

Credential verification time ≤ 1 second*

Tri-colored LEDs and audible indicators (field configurable)

Power Supply: 4 AA batteries (standard off the shelf: included)

Voltage range: 4 VDC to 26 VDC

Max current requirement Up to 250 mA

Battery life Up to 2 yrs with 4AA

Operating temperature - exterior -31 Degree to 151* Degree F (-35 Degree to 66 Degree *C)

Operating temperature - interior 32* Degree to 120 Degree F (0 Degree to 49 Degree *C) (battery)

Operating humidity 0 - 100% non-condensing

Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS

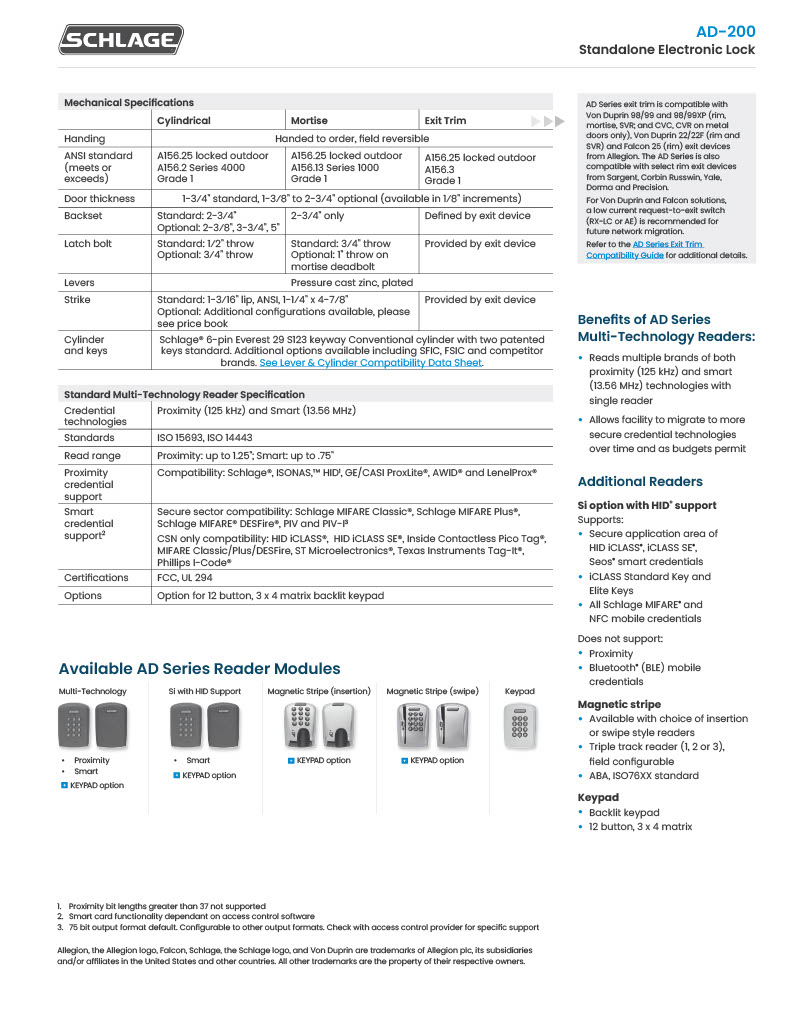

** Mechanical specifications

Handing: Field reversible

ANSI standard: Meets or exceeds A156.25 and A156.2 Series 4000, Grade 1 strength and operational requirements

Door thickness: 1 3⁄4" standard, 1 3⁄8" to 2 3⁄4" optional (available in 1⁄8" increments)

Backset: 2 3⁄4" standard, 2 3⁄8", 3 3⁄4" and 5" optional

Latch bolt: 1⁄2" throw security latch standard 3⁄4" throw optional

Levers: Pressure cast zinc, plated to match finish symbols

Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" x 1-3⁄16" lip to center standard

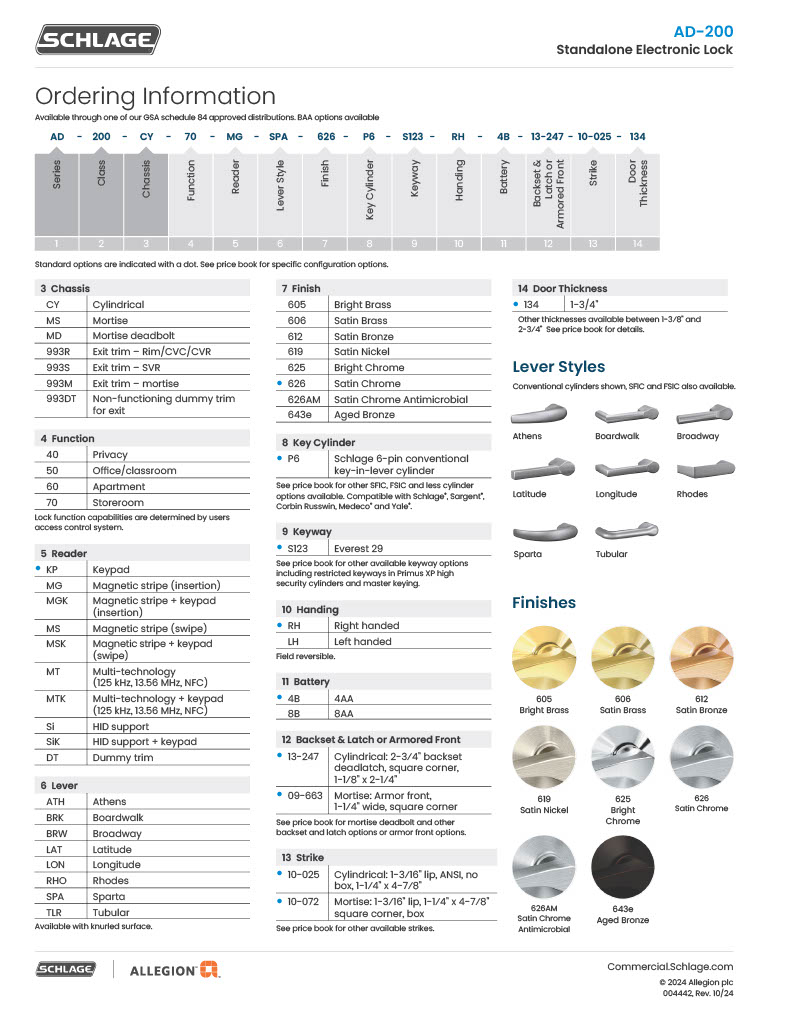

**Model:AD200CY50MTKSPA612BD, AD200CY50MTKSPA625BD, AD200CY50MTKSPA626BD, AD200CY50MTKSPA643EBD, AD200CY50MTKSPA605JD, AD200CY50MTKSPA606JD, AD200CY50MTKSPA612JD, AD200CY50MTKSPA625JD, AD200CY50MTKSPA626JD, AD200CY50MTKSPA643EJD

Schlage AD200CY50MTKATH605PD, AD200CY50MTKATH606PD, AD200CY50MTKATH612PD, AD200CY50MTKATH625PD, AD200CY50MTKATH626PD, AD200CY50MTKATH643EPD, AD200CY50MTKATH605BD, AD200CY50MTKATH606BD, AD200CY50MTKATH612BD, AD200CY50MTKATH625BD, AD200CY50MTKATH626BD, AD200CY50MTKATH643EBD, AD200CY50MTKATH605JD, AD200CY50MTKATH606JD, AD200CY50MTKATH612JD, AD200CY50MTKATH625JD, AD200CY50MTKATH626JD, AD200CY50MTKATH643EJD

Schlage AD200CY50MTKTLR605PD, AD200CY50MTKTLR606PD, AD200CY50MTKTLR612PD, AD200CY50MTKTLR625PD, AD200CY50MTKTLR626PD, AD200CY50MTKTLR643EPD, AD200CY50MTKTLR605BD, AD200CY50MTKTLR606BD, AD200CY50MTKTLR612BD, AD200CY50MTKTLR625BD, AD200CY50MTKTLR626BD, AD200CY50MTKTLR643EBD, AD200CY50MTKTLR605JD, AD200CY50MTKTLR606JD, AD200CY50MTKTLR612JD, AD200CY50MTKTLR625JD, AD200CY50MTKTLR626JD, AD200CY50MTKTLR643EJD

**

Multi-technology reader specification

Frequency: 125 kHz proximity and 13.56 MHz smart card

Standards: ISO standard 15693 and ISO 14443

Maximum read range: Up to 1.25" on 125 kHz proximity, up to 0.75" on 13.56 MHz smart card

125 kHz compatibility: Schlage Proximity, XceedIDTM Proximity, HID® Proximity, GE/CASI ProxLite®, AWID® Proximity, LenelProx®

13.56 MHz compatibility: Schlage MIFARE® Secure Sector, XceedIDTM MIFARE® Secure Sector, aptiQTM smart cards using MIFARE DESFireTM EV1 with  PACSA; PIV and PIV-I*

13.56 MHz compatibility (serial number only): DESFire® CSN, HID iCLASS® CSN, Inside Contactless PicoTag® CSN, MIFARE®, MIFAREDESFireTM EV1, ST Microelectronics® CSN, Texas Instruments Tag-It® Serial Number, Phillips I-Code® CSN

125 kHz compatible XceedID credentials: 125 kHz clamshell, ISO card, ISO card with magnetic stripe, keyfob, and PVC disk (7000 Series)

13.56 MHz compatible aptiQTM credentials: aptiQTM smart cards using MIFARE® in clamshell, ISO card, ISO card with magnetic stripe, Keyfob and PVC Patch(9000 Series); aptiQTM smart cards using MIFARE DESFireTM EV1 in clamshell, ISO card, ISO card with magnetic stripe, keyfob, and PVC disk (8000 Series)

Certifications/standards: FCC, UL 294 Listed, ISO standard 15693, and ISO standard 14443
