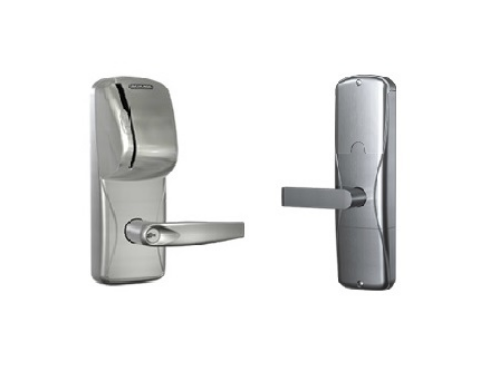

Schlage AD-200-CY-70-MS Cylindrical Magnetic Stripe (Swipe) Standalone Electronic Lock W/ Audit Trail - Classroom / Storeroom

Schlage AD-200-CY-70-MS Cylindrical - Magnetic Stripe (Swipe) - Standalone Electronic Lock W/ Audit Trail - Classroom / Storeroom Function

Audit trail reports that allow you to track usage and events

Update users and access rights at the lock using the handheld device

The Handheld Device (HHD) used in conjunction with your access control software, allows you to easily add or delete users and retrieve audits.(sold separately)

Lever Styles: Sparta, Rhodes, Athens, Tubular.

**

**

*Classroom /Storeroom Function (70)*

**In a classroom application a toggle credential can be used to put the lock into a locked or unlocked state

The state of the lock cannot be changed from the interior

In a storeroom application the lock unlocks when a credential is presented and relocks automatically.

you can also use this lock with your ownmagnetic stripe plastic key cards, customized to your needs.

**

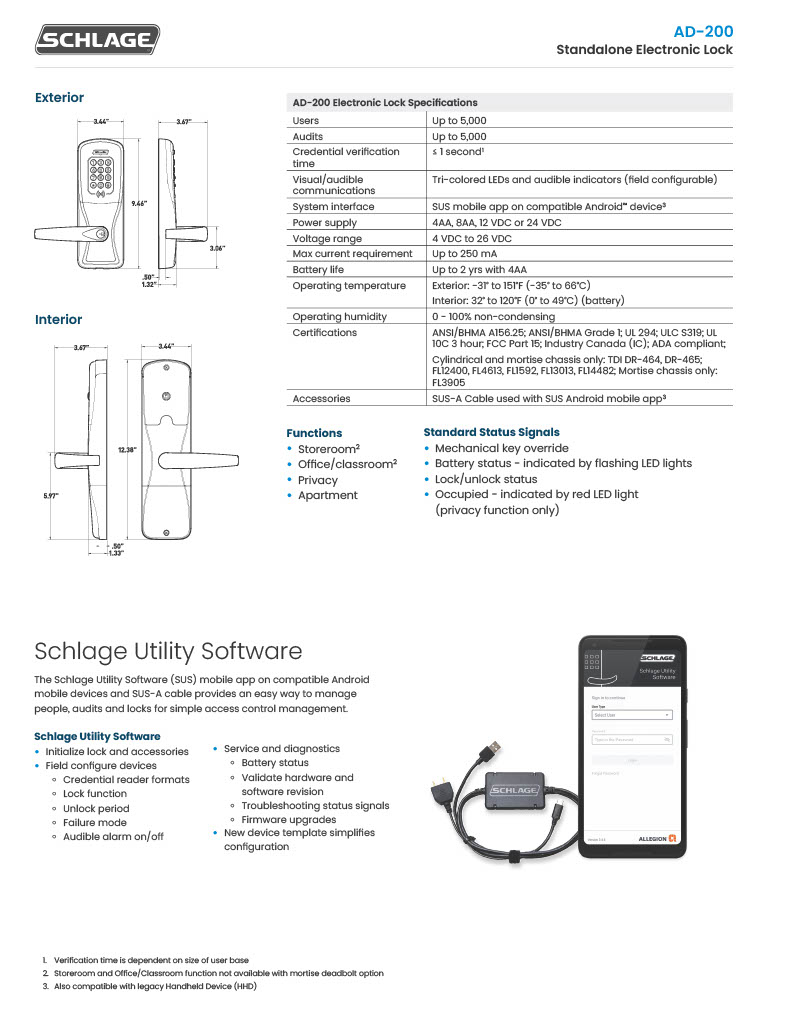

Electronical specifications

**Triple track reader (1, 2 or 3), field configurable

ABA, ISO76XX Standard**

Up to 5000 Users & up to5000 Audits

Credential verification time ≤ 1 second*

Tri-colored LEDs and audible indicators (field configurable)

Power Supply: 4 AA batteries (standard off the shelf: included)

Voltage range: 4 VDC to 26 VDC

Max current requirement Up to 250 mA

Battery life Up to 2 yrs with 4AA

Operating temperature - exterior -31* Degree to 151 Degree F (-35 Degree to 66 Degree *C)

Operating temperature - interior 32* Degree to 120 Degree F (0 Degree to 49 Degree *C) (battery)

Operating humidity 0 - 100% non-condensing

Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS

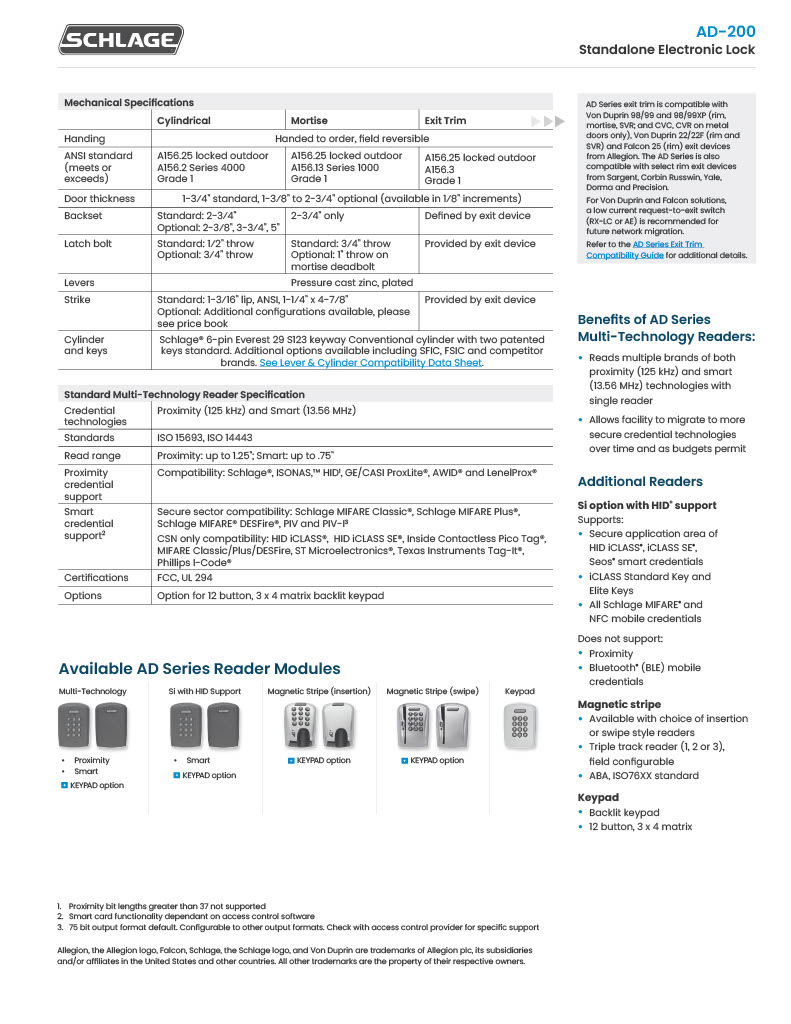

** Mechanical specifications

Handing: Field reversible

ANSI standard: Meets or exceeds A156.25 and A156.2 Series 4000, Grade 1 strength and operational requirements

Door thickness: 1 3⁄4" standard, 1 3⁄8" to 2 3⁄4" optional (available in 1⁄8" increments)

Backset: 2 3⁄4" standard, 2 3⁄8", 3 3⁄4" and 5" optional

Latch bolt: 1⁄2" throw security latch standard 3⁄4" throw optional

Levers: Pressure cast zinc, plated to match finish symbols

Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" x 1-3⁄16" lip to center standard

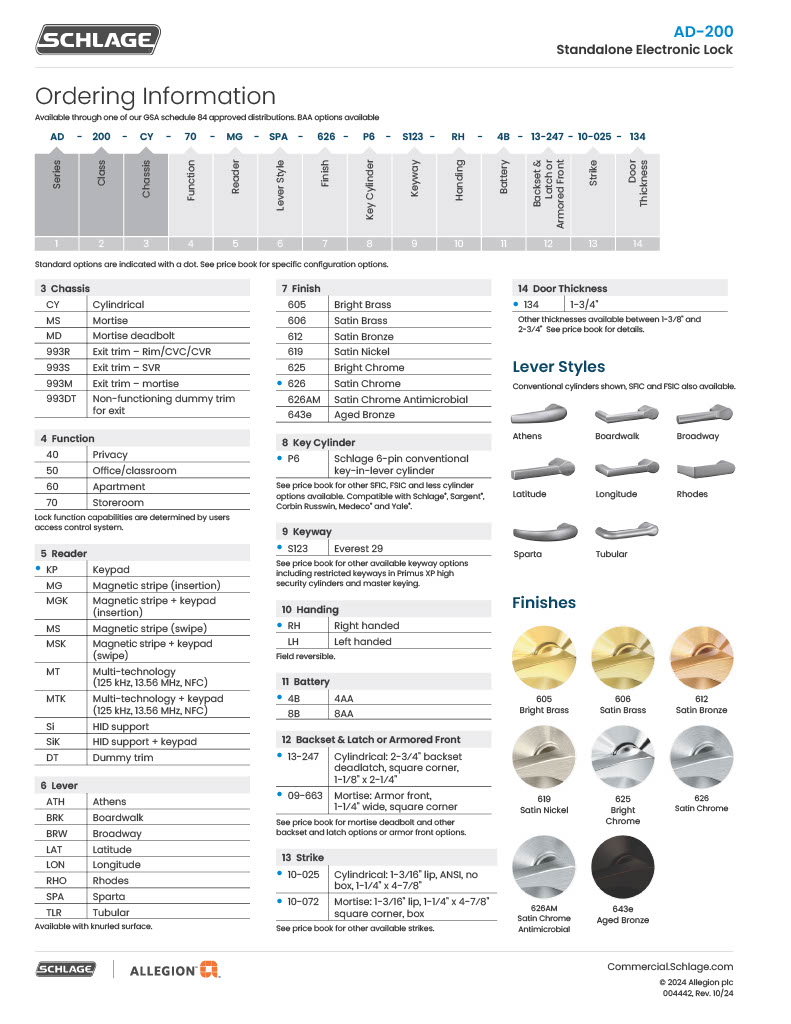

**Model:Schlage AD200CY70MSRHO605PD, AD200CY70MSRHO606PD, AD200CY70MSRHO612PD, AD200CY70MSRHO625PD, AD200CY70MSRHO626PD, AD200CY70MSRHO643EPD, AD200CY70MSRHO605BD, AD200CY70MSRHO606BD, AD200CY70MSRHO612BD, AD200CY70MSRHO625BD, AD200CY70MSRHO626BD, AD200CY70MSRHO643EBD, AD200CY70MSRHO605JD, AD200CY70MSRHO606JD, AD200CY70MSRHO612JD, AD200CY70MSRHO625JD, AD200CY70MSRHO626JD, AD200CY70MSRHO643EJD

Schlage AD200CY70MSSPA605PD, AD200CY70MSSPA606PD, AD200CY70MSSPA612PD, AD200CY70MSSPA625PD, AD200CY70MSSPA626PD, AD200CY70MSSPA643EPD, AD200CY70MSSPA605BD, AD200CY70MSSPA606BD, AD200CY70MSSPA612BD, AD200CY70MSSPA625BD, AD200CY70MSSPA626BD, AD200CY70MSSPA643EBD, AD200CY70MSSPA605JD, AD200CY70MSSPA606JD, AD200CY70MSSPA612JD, AD200CY70MSSPA625JD, AD200CY70MSSPA626JD, AD200CY70MSSPA643EJD

Schlage AD200CY70MSATH605PD, AD200CY70MSATH606PD, AD200CY70MSATH612PD, AD200CY70MSATH625PD, AD200CY70MSATH626PD, AD200CY70MSATH643EPD, AD200CY70MSATH605BD, AD200CY70MSATH606BD, AD200CY70MSATH612BD, AD200CY70MSATH625BD, AD200CY70MSATH626BD, AD200CY70MSATH643EBD, AD200CY70MSATH605JD, AD200CY70MSATH606JD, AD200CY70MSATH612JD, AD200CY70MSATH625JD, AD200CY70MSATH626JD, AD200CY70MSATH643EJD

Schlage AD200CY70MSTLR605PD, AD200CY70MSTLR606PD, AD200CY70MSTLR612PD, AD200CY70MSTLR625PD, AD200CY70MSTLR626PD, AD200CY70MSTLR643EPD, AD200CY70MSTLR605BD, AD200CY70MSTLR606BD, AD200CY70MSTLR612BD, AD200CY70MSTLR625BD, AD200CY70MSTLR626BD, AD200CY70MSTLR643EBD, AD200CY70MSTLR605JD, AD200CY70MSTLR606JD, AD200CY70MSTLR612JD, AD200CY70MSTLR625JD, AD200CY70MSTLR626JD, AD200CY70MSTLR643EJD
