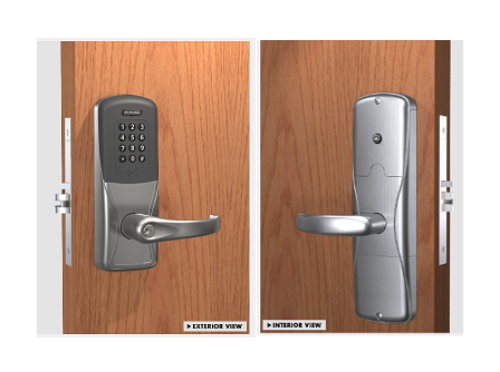

Schlage AD-200-MS-40-MSK Mortise Multi-technology with Keypad Electronic Lock W/ Audit Trail - Privacy Function

AD-200-MS-40-MSK

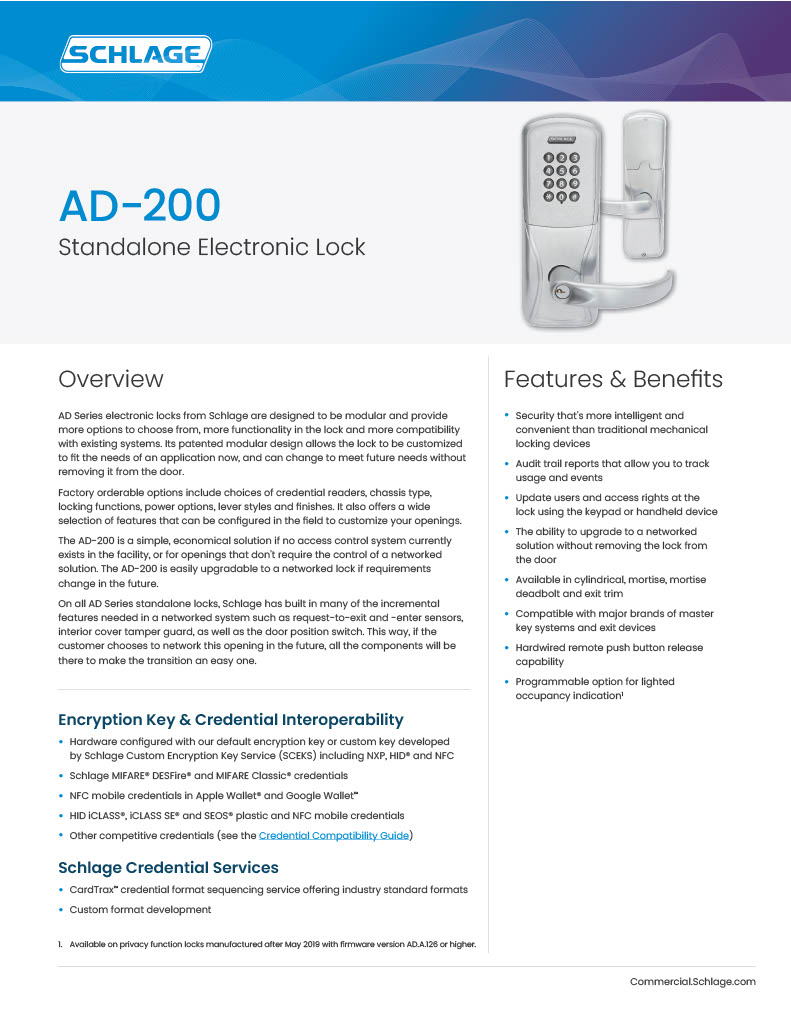

1-Page1-AD-200

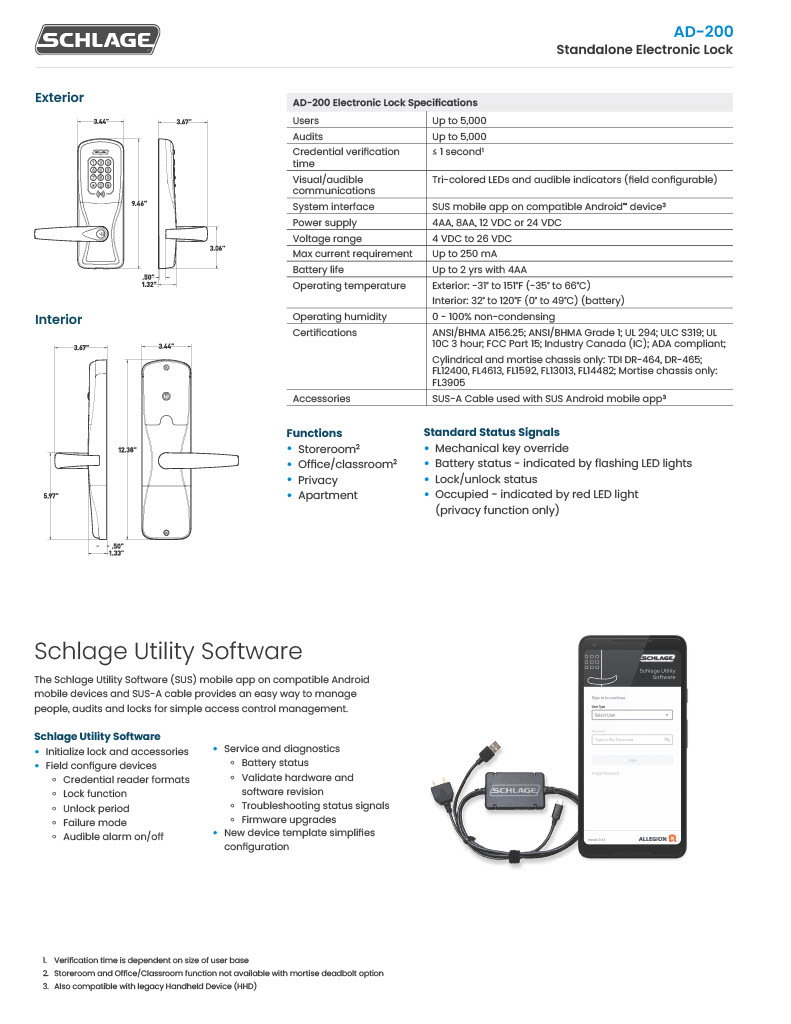

1-Page2-AD-200

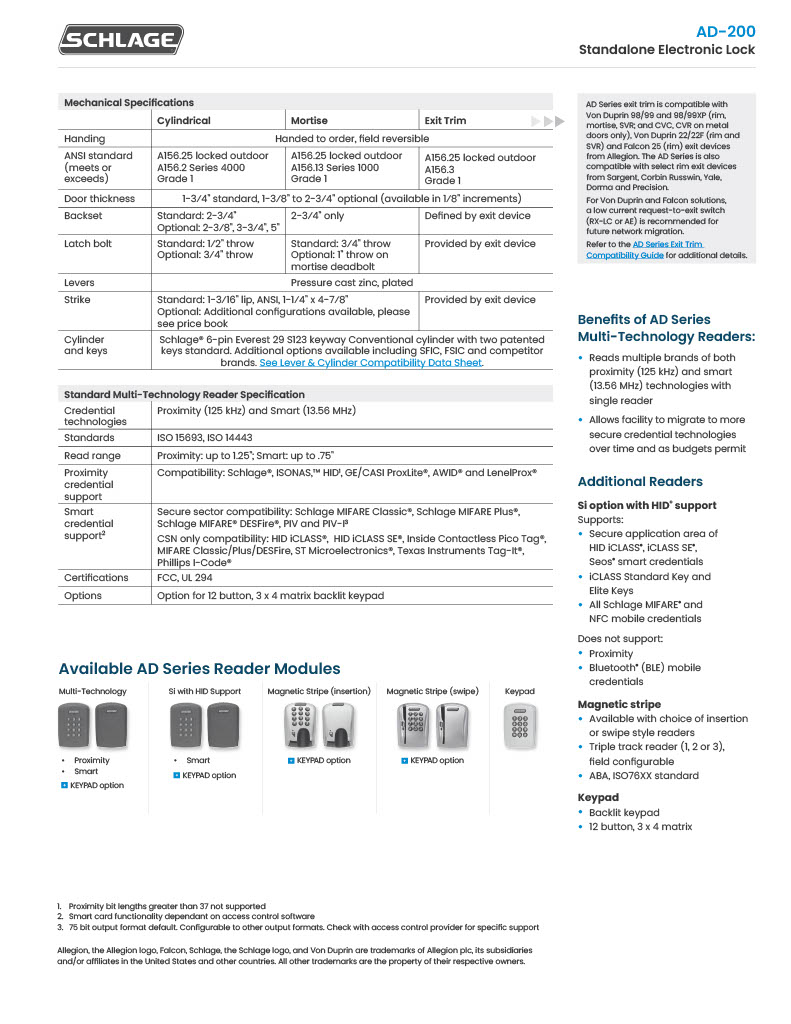

1-Page3-AD-200

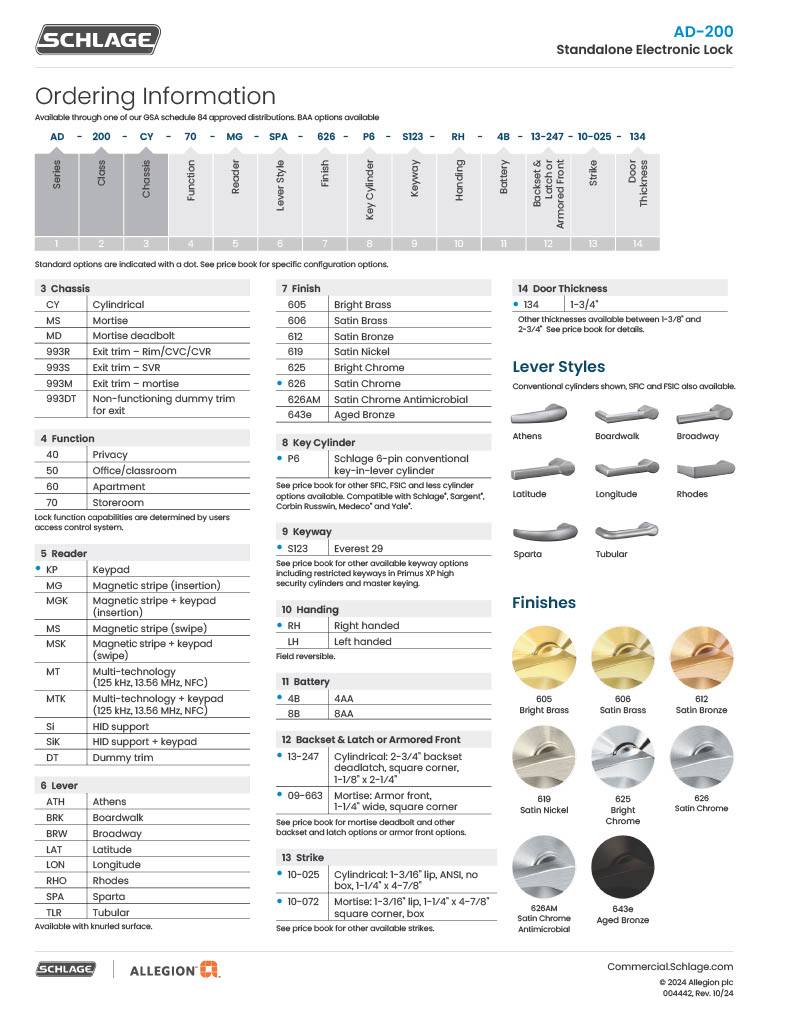

1-Page4-AD-200
AD-200-MS-40-MSK
1-Page1-AD-200
1-Page2-AD-200
1-Page3-AD-200
1-Page4-AD-200
naxt
prev

Product Details

Schlage AD-200-MS-40-MTK Mortise*Multi-technology with *Keypad Electronic Lock W/ Audit Trail - Privacy Function

Reads both proximity (125 kHz) and smart (13.56 MHz) technologies with single device

Audit trail reports that allow you to track usage and events

Update users and access rights at the lock using the keypad or handheld device

The Handheld Device (HHD) used in conjunction with your access control software, allows you to easily add or delete users and retrieve audits.(sold separately)

Lever Styles: Sparta, Rhodes, Athens, Tubular.

**

**

**





Privacy Function   (40)

Unlocks with a valid credential

When the interior push button is pressed, a normal credential is ignored

Lock returns to normal state when the interior push button is pressed, or door is opened

Electronical specifications

12 button keypad  - 3 x 4 Matrix - Backlit keypad

Reads proximity (125 kHz) and smart (13.56 MHz)

Up to 5000 Users & up to 5000 Audits

Credential verification time ≤ 1 second*

Tri-colored LEDs and audible indicators (field configurable)

Power Supply: 4 AA batteries (standard off the shelf: included)

Voltage range: 4 VDC to 26 VDC

Max current requirement Up to 250 mA

Battery life Up to 2 yrs with 4AA

Operating temperature - exterior -31 Degree to 151* Degree F (-35 Degree to 66 Degree *C)

Operating temperature - interior 32* Degree to 120 Degree F (0 Degree to 49 Degree *C) (battery)

Operating humidity 0 - 100% non-condensing

Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS

** Mechanical specifications

Handing: Field reversible

ANSI standard: Meets or exceeds A156.25 and A156.13 Series 1000, Grade 1 operational and security

Door thickness: 1 3⁄4" standard, 1 3⁄8" to 2 3⁄4" optional (available in 1⁄8" increments)

Backset: 2 3⁄4" only

Latch bolt: 3⁄4" throw with anti-friction tongue standard

Levers: Steel, plated to match finish symbols

Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" x 1-3⁄16" lip to center with dust box standard

**Model:Schlage AD200MS40MTKRHO626PD, AD200MS40MTKRHO626BD, AD200MS40MTKRHO626JD

Schlage AD200MS40MTKSPA626PD, AD200MS40MTKSPA626BD, AD200MS40MTKSPA626JD

Schlage AD200MS40MTKATH626PD, AD200MS40MTKATH626BD, AD200MS40MTKATH626JD

Schlage AD200MS40MTKTLR626PD, AD200MS40MTKTLR626BD, AD200MS40MTKTLR626JD

Schlage AD-200-MS-40-MSK Mortise Multi-technology with Keypad Electronic Lock W/ Audit Trail - Privacy Function

SKU: AD200MS40MTK

In Stock
icon Chat
Picture for manufacturer Schlage

Lever *

RHO - Rhodes Lever
RHO - Rhodes Lever
SPA - Sparta Lever
SPA - Sparta Lever
ATH - Athens Lever
ATH - Athens Lever
TLR - Tubular Lever
TLR - Tubular Lever

Finish *

626 - Satin Chrome
626 - Satin Chrome
605 - Bright Brass [+$76.20]
605 - Bright Brass [+$76.20]
606 - Satin Brass [+$76.20]
606 - Satin Brass [+$76.20]
612 - Satin Bronze [+$76.20]
612 - Satin Bronze [+$76.20]
643E - Aged Bronze [+$76.20]
643E - Aged Bronze [+$76.20]
625 - Bright Chrome [+$76.20]
625 - Bright Chrome [+$76.20]

Cylinder *

PD - Standard Cylinder
PD - Standard Cylinder
BD - Accepts Small format IC core - less core
BD - Accepts Small format IC core - less core
JD - Accepts Large format IC core - less core [-$19.20]
JD - Accepts Large format IC core - less core [-$19.20]
LD - Accepts Standard Cylinder - less Cylinder [-$34.80]
LD - Accepts Standard Cylinder - less Cylinder [-$34.80]

$2,190.54

$3,319.00

You saved $1,128.46

About this item

AD-Series standalone locks are a cost-effective way to upgrade from traditional mechanical locking devices. They allow you to easily add and delete users, track usage and manage data – all without installing a facility-wide network. This gives you more control and allows you to manage your system more efficiently than with a traditional mechanical system.

Resources

Schlage AD-200-MS-40-MTK Mortise*Multi-technology with *Keypad Electronic Lock W/ Audit Trail - Privacy Function

Reads both proximity (125 kHz) and smart (13.56 MHz) technologies with single device

Audit trail reports that allow you to track usage and events

Update users and access rights at the lock using the keypad or handheld device

The Handheld Device (HHD) used in conjunction with your access control software, allows you to easily add or delete users and retrieve audits.(sold separately)

Lever Styles: Sparta, Rhodes, Athens, Tubular.

**

**

**





Privacy Function   (40)

Unlocks with a valid credential

When the interior push button is pressed, a normal credential is ignored

Lock returns to normal state when the interior push button is pressed, or door is opened

Electronical specifications

12 button keypad  - 3 x 4 Matrix - Backlit keypad

Reads proximity (125 kHz) and smart (13.56 MHz)

Up to 5000 Users & up to 5000 Audits

Credential verification time ≤ 1 second*

Tri-colored LEDs and audible indicators (field configurable)

Power Supply: 4 AA batteries (standard off the shelf: included)

Voltage range: 4 VDC to 26 VDC

Max current requirement Up to 250 mA

Battery life Up to 2 yrs with 4AA

Operating temperature - exterior -31 Degree to 151* Degree F (-35 Degree to 66 Degree *C)

Operating temperature - interior 32* Degree to 120 Degree F (0 Degree to 49 Degree *C) (battery)

Operating humidity 0 - 100% non-condensing

Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS

** Mechanical specifications

Handing: Field reversible

ANSI standard: Meets or exceeds A156.25 and A156.13 Series 1000, Grade 1 operational and security

Door thickness: 1 3⁄4" standard, 1 3⁄8" to 2 3⁄4" optional (available in 1⁄8" increments)

Backset: 2 3⁄4" only

Latch bolt: 3⁄4" throw with anti-friction tongue standard

Levers: Steel, plated to match finish symbols

Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" x 1-3⁄16" lip to center with dust box standard

**Model:Schlage AD200MS40MTKRHO626PD, AD200MS40MTKRHO626BD, AD200MS40MTKRHO626JD

Schlage AD200MS40MTKSPA626PD, AD200MS40MTKSPA626BD, AD200MS40MTKSPA626JD

Schlage AD200MS40MTKATH626PD, AD200MS40MTKATH626BD, AD200MS40MTKATH626JD

Schlage AD200MS40MTKTLR626PD, AD200MS40MTKTLR626BD, AD200MS40MTKTLR626JD

AD-200-MS-40-MSK
Schlage AD-200-MS-40-MSK Mortise Multi-technology with Keypad Electronic Lock W/ Audit Trail - Privacy Function

Product code: AD200MS40MTK

In Stock

$3,319.00

$2,190.54

AD-200-MS-40-MSK
Schlage AD-200-MS-40-MSK Mortise Multi-technology with Keypad Electronic Lock W/ Audit Trail - Privacy Function

Product code: AD200MS40MTK

In Stock

$3,319.00

$2,190.54
