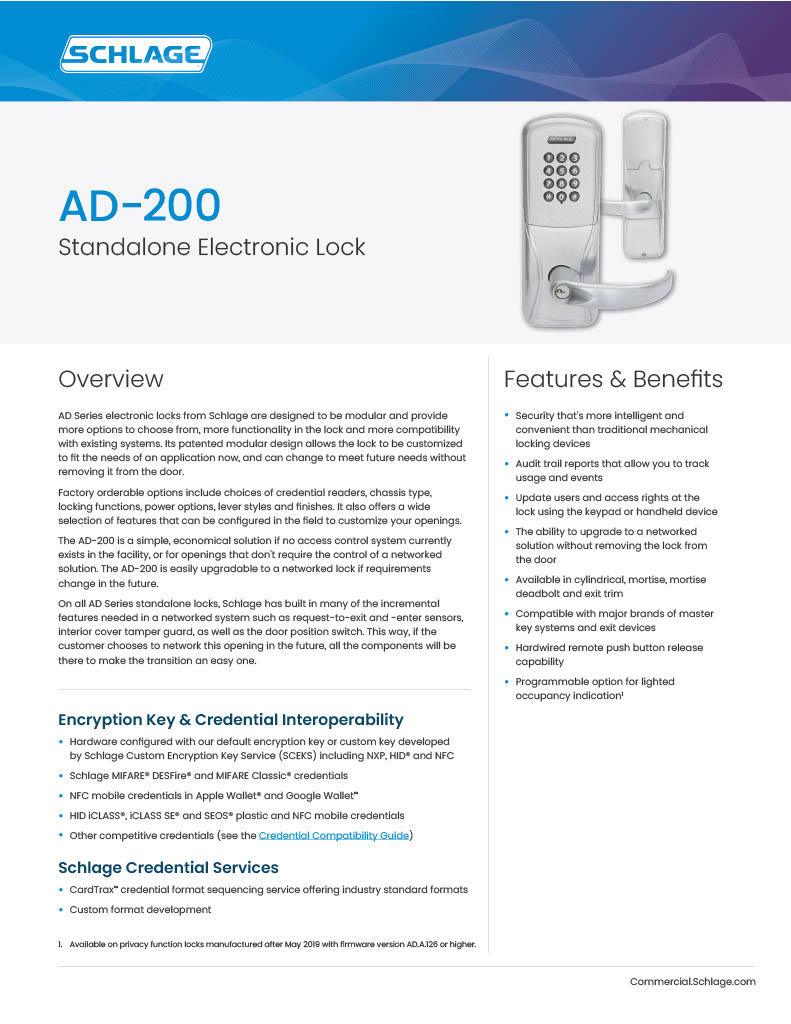

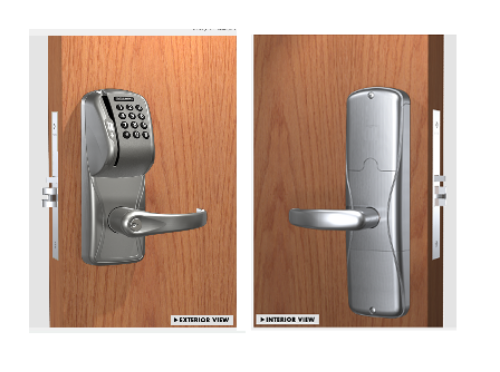

Schlage AD-200-MS-70-MSK Mortise Magnetic Stripe (swipe) + keypad Electronic Lock W/ Audit Trail - Classroom / Storeroom

Schlage AD-200-MS-70-MSK Mortise - Magnetic stripe *(swipe)* + keypad - Standalone Electronic Lock W/ Audit Trail - Classroom / Storeroom Function

Audit trail reports that allow you to track usage and events

Update users and access rights at the lock using the handheld device

The Handheld Device (HHD) used in conjunction with your access control software, allows you to easily add or delete users and retrieve audits.(sold separately)

Lever Styles: Sparta, Rhodes, Athens, Tubular.

**

**

**

*Classroom /Storeroom Function (70)*

**In a classroom application a toggle credential can be used to put the lock into a locked or unlocked state

The state of the lock cannot be changed from the interior

In a storeroom application the lock unlocks when a credential is presented and relocks automatically

**

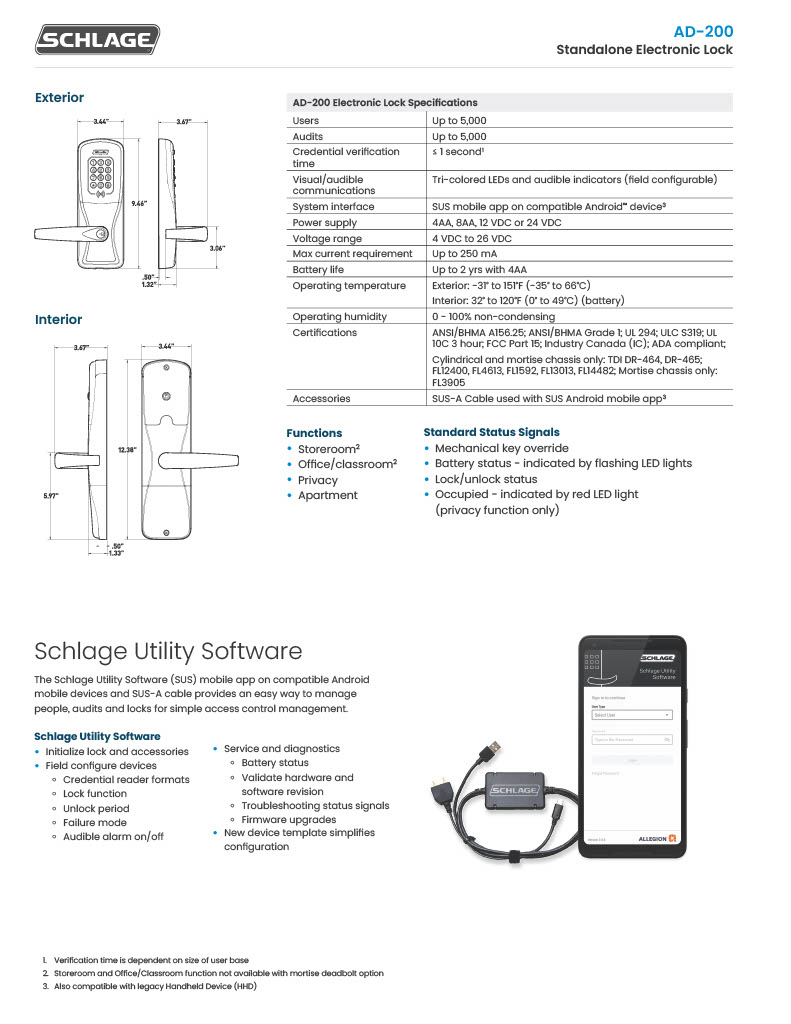

Electronical specifications

**Triple track reader (1, 2 or 3), field configurable

ABA, ISO76XX Standard**

12 button keypad  - 3 x 4 Matrix - Backlit keypad

Up to 5000 Users & up to5000 Audits

Credential verification time ≤ 1 second*

Tri-colored LEDs and audible indicators (field configurable)

Power Supply: 4 AA batteries (standard off the shelf: included)

Voltage range: 4 VDC to 26 VDC

Max current requirement Up to 250 mA

Battery life Up to 2 yrs with 4AA

Operating temperature - exterior -31* Degree to 151 Degree F (-35 Degree to 66 Degree *C)

Operating temperature - interior 32* Degree to 120 Degree F (0 Degree to 49 Degree *C) (battery)

Operating humidity 0 - 100% non-condensing

Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS

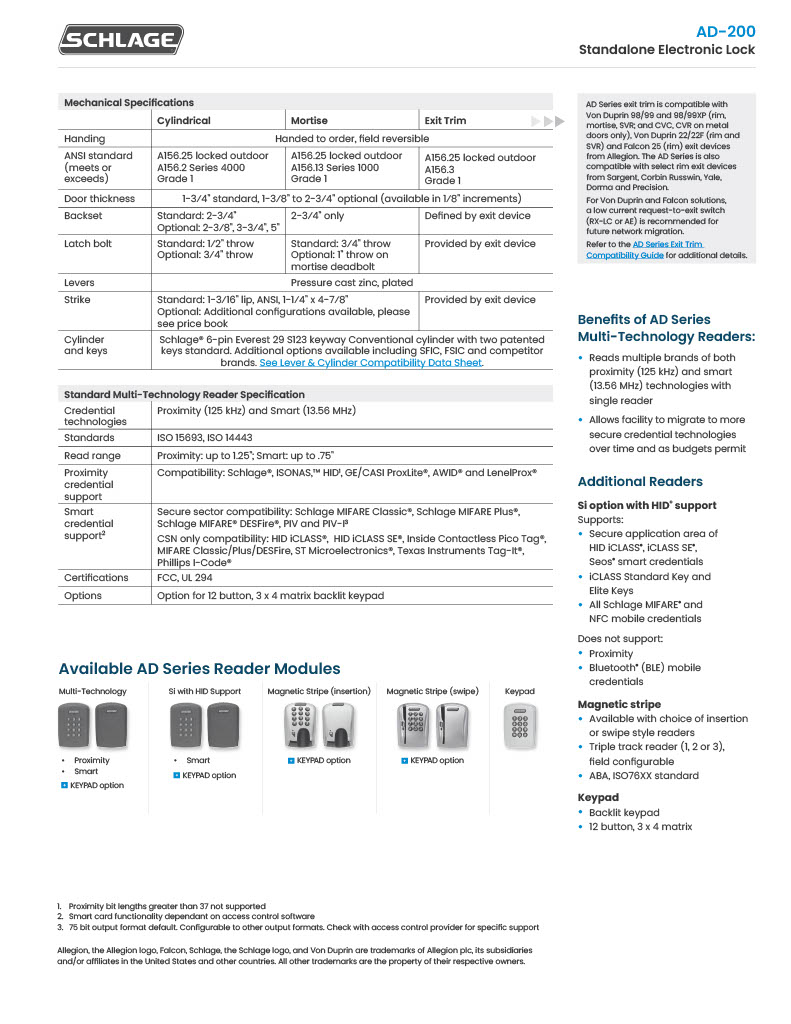

** Mechanical specifications

Handing: Field reversible

ANSI standard: Meets or exceeds A156.25 and A156.13 Series 1000, Grade 1 operational and security

Door thickness: 1 3⁄4" standard, 1 3⁄8" to 2 3⁄4" optional (available in 1⁄8" increments)

Backset: 2 3⁄4" only

Latch bolt: 3⁄4" throw with anti-friction tongue standard

Levers: Steel, plated to match finish symbols

Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" x 1-3⁄16" lip to center with dust box standard

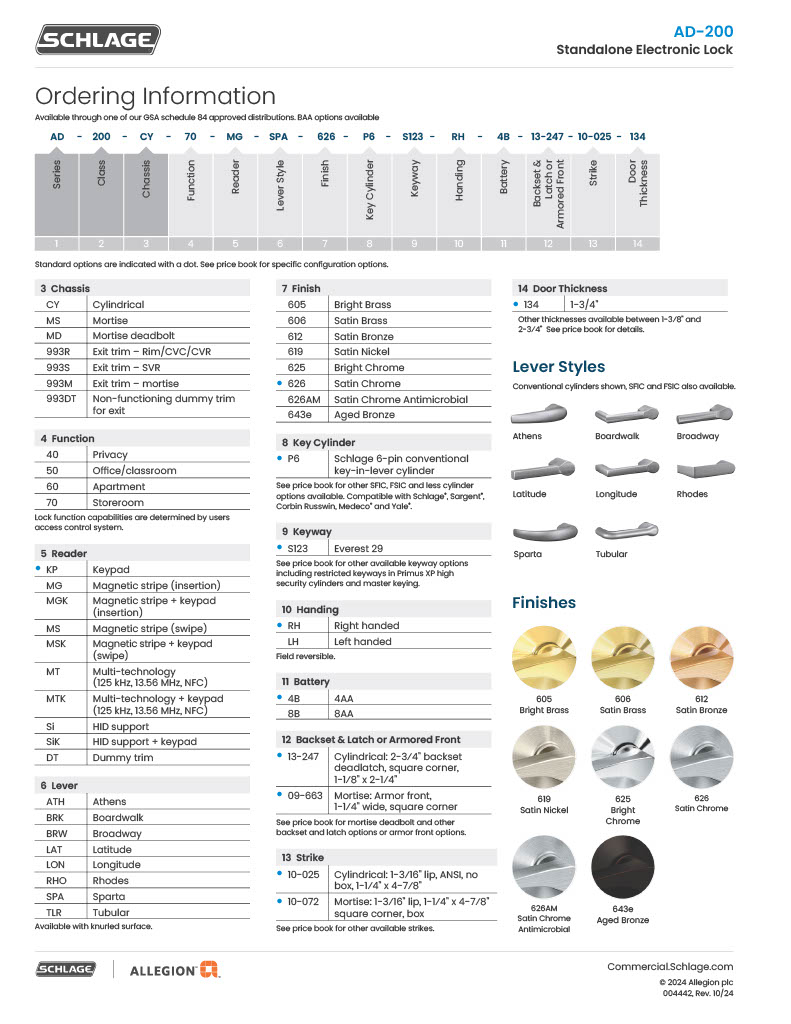

**Model:Schlage AD200MS70MSKRHO605PD, AD200MS70MSKRHO606PD, AD200MS70MSKRHO612PD, AD200MS70MSKRHO625PD, AD200MS70MSKRHO626PD, AD200MS70MSKRHO643EPD, AD200MS70MSKRHO605BD, AD200MS70MSKRHO606BD, AD200MS70MSKRHO612BD, AD200MS70MSKRHO625BD, AD200MS70MSKRHO626BD, AD200MS70MSKRHO643EBD, AD200MS70MSKRHO605JD, AD200MS70MSKRHO606JD, AD200MS70MSKRHO612JD, AD200MS70MSKRHO625JD, AD200MS70MSKRHO626JD, AD200MS70MSKRHO643EJD

Schlage AD200MS70MSKSPA605PD, AD200MS70MSKSPA606PD, AD200MS70MSKSPA612PD, AD200MS70MSKSPA625PD, AD200MS70MSKSPA626PD, AD200MS70MSKSPA643EPD, AD200MS70MSKSPA605BD, AD200MS70MSKSPA606BD, AD200MS70MSKSPA612BD, AD200MS70MSKSPA625BD, AD200MS70MSKSPA626BD, AD200MS70MSKSPA643EBD, AD200MS70MSKSPA605JD, AD200MS70MSKSPA606JD, AD200MS70MSKSPA612JD, AD200MS70MSKSPA625JD, AD200MS70MSKSPA626JD, AD200MS70MSKSPA643EJD

Schlage AD200MS70MSKATH605PD, AD200MS70MSKATH606PD, AD200MS70MSKATH612PD, AD200MS70MSKATH625PD, AD200MS70MSKATH626PD, AD200MS70MSKATH643EPD, AD200MS70MSKATH605BD, AD200MS70MSKATH606BD, AD200MS70MSKATH612BD, AD200MS70MSKATH625BD, AD200MS70MSKATH626BD, AD200MS70MSKATH643EBD, AD200MS70MSKATH605JD, AD200MS70MSKATH606JD, AD200MS70MSKATH612JD, AD200MS70MSKATH625JD, AD200MS70MSKATH626JD, AD200MS70MSKATH643EJD

Schlage AD200MS70MSKTLR605PD, AD200MS70MSKTLR606PD, AD200MS70MSKTLR612PD, AD200MS70MSKTLR625PD, AD200MS70MSKTLR626PD, AD200MS70MSKTLR643EPD, AD200MS70MSKTLR605BD, AD200MS70MSKTLR606BD, AD200MS70MSKTLR612BD, AD200MS70MSKTLR625BD, AD200MS70MSKTLR626BD, AD200MS70MSKTLR643EBD, AD200MS70MSKTLR605JD, AD200MS70MSKTLR606JD, AD200MS70MSKTLR612JD, AD200MS70MSKTLR625JD, AD200MS70MSKTLR626JD, AD200MS70MSKTLR643EJD
