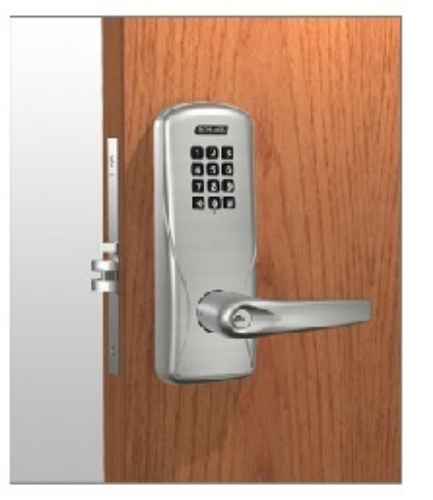

Schlage CO-200-993-M-70-KP Electronic Keypad Exit Trim for Mortise Exit Device

CO-200-993-M-70-KP

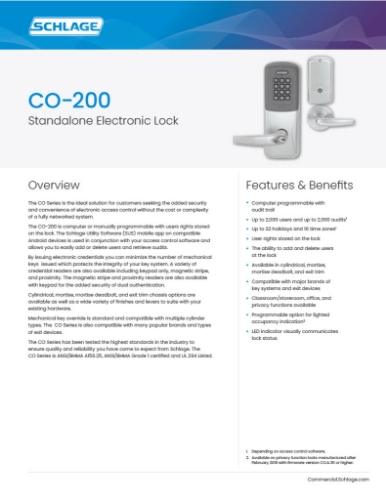

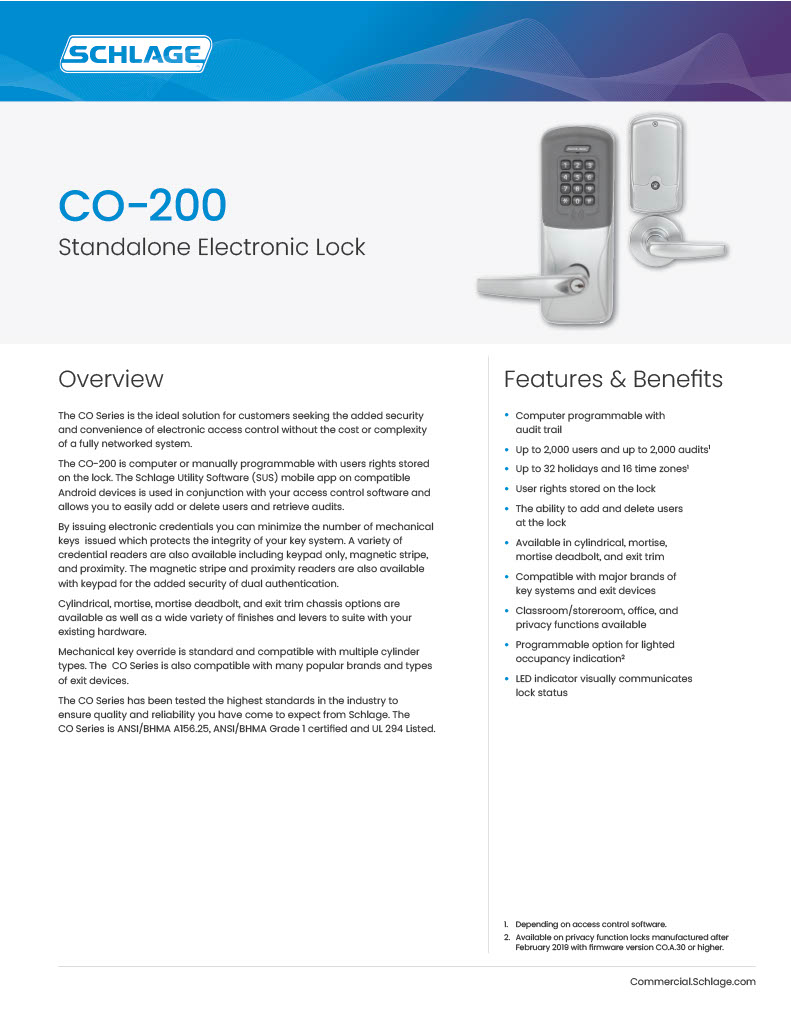

1-Page1-CO-200

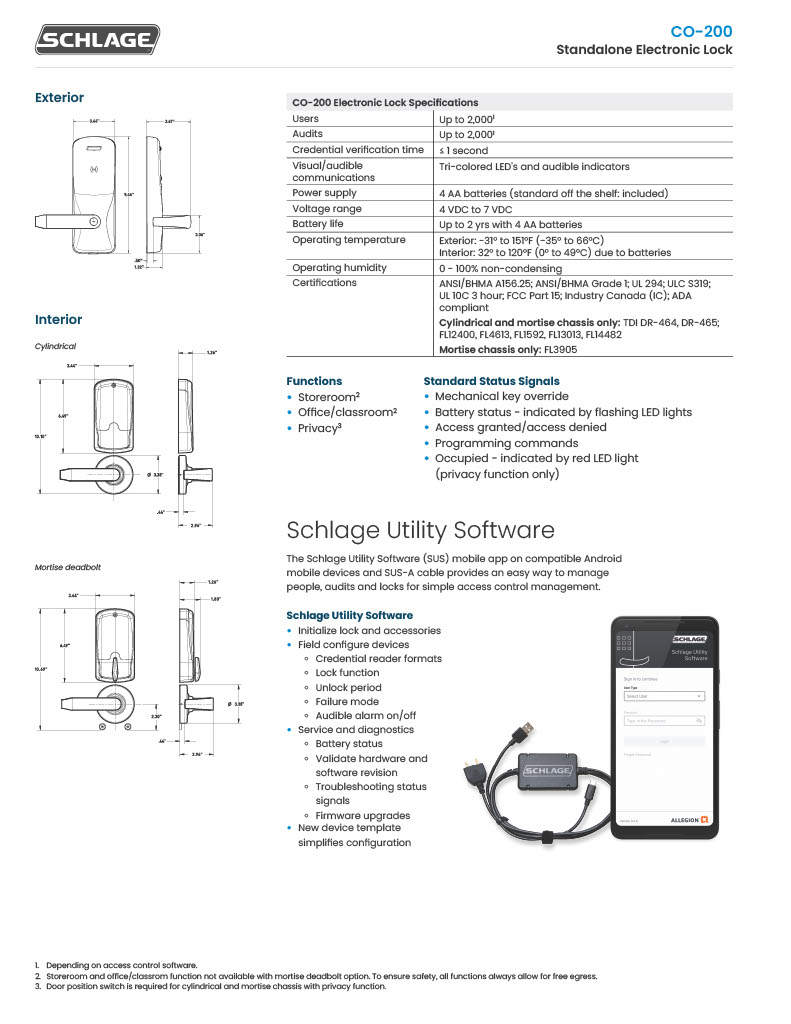

1-Page2-CO-200

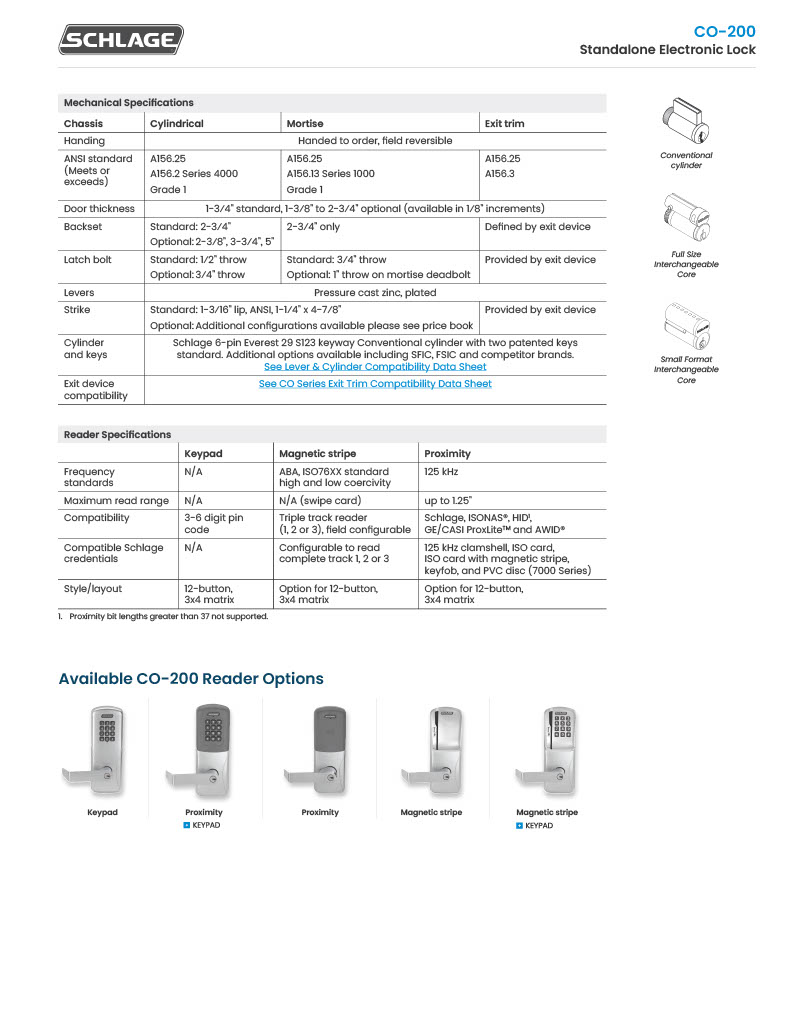

1-Page3-CO-200

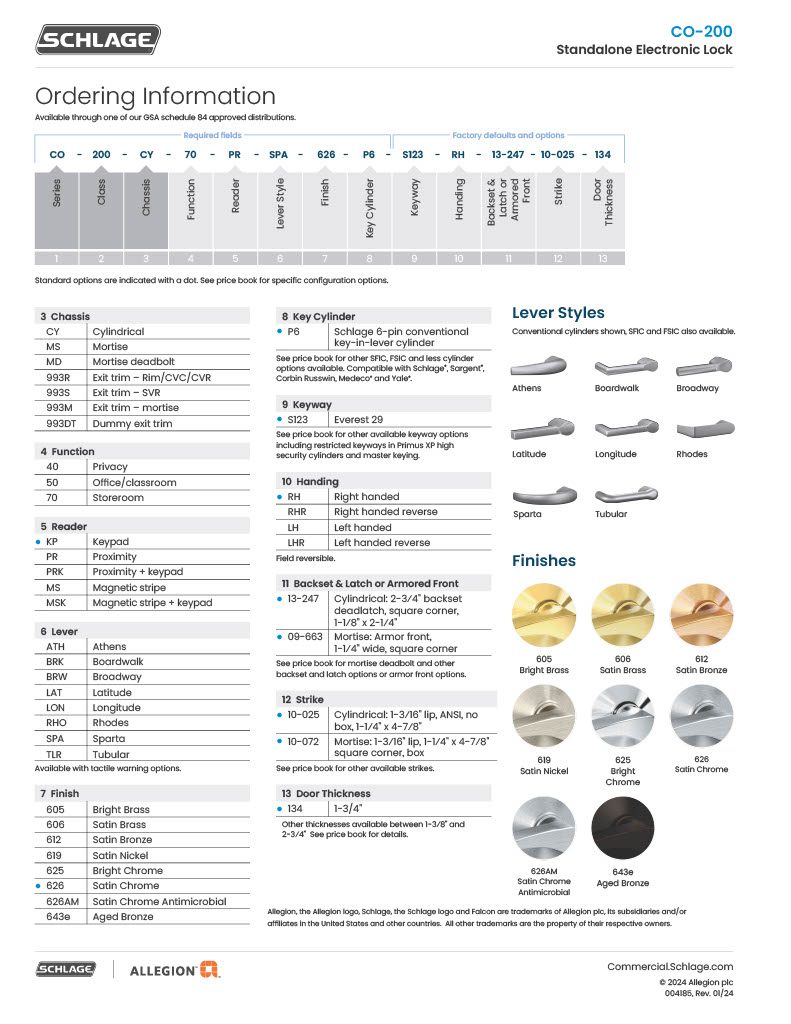

1-Page4-CO-200
CO-200-993-M-70-KP
1-Page1-CO-200
1-Page2-CO-200
1-Page3-CO-200
1-Page4-CO-200
naxt
prev

Product Details

Schlage CO-200-993-M-70-KP Electronic Keypad Exit Trim for*Mortise Exit Device*(Panic Device Sold Separately)

The CO-200 is computer programmable with users rights stored on the lock.

The Schlage Utility Software (SUS) mobile app for Android devices is designed specifically for use with the SUS-A cable to set up and act as the link between access control software and select Schlage electronic locks and accessories. This new SUS mobile app and cable replaces the previous SUS solution using a Handheld Device(HHD).  (sold  separately, Click Hare)

Lever Styles:

**

**

**



*Classroom /Storeroom Function (70)*

**In a classroom application a toggle credential can be used to put the lock into a "locked" or "unlocked" state. The state of the lock cannot be changed from the interior

In a storeroom application the lock unlocks when a credential is presented and relocks automatically**

12 button keypad  - 3x4 Matrix* *

Up to 2000 users & up to 2000 audits 3-6 digit PIN codes stored on the lock (Depending on access control software.)

Up to 32 holidays & 16 time zones (Depending on access control software.)

User rights stored on the lock

The ability to add and delete users at the lock

Mechanical key override is standard and compatible with multiple cylinder types

**Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries

Operating Temperature: Exterior -31to 151F (-35to 66C) - Interior 32to 120F (0to 49C) due to battery

Operating Humidity: 0 - 100% non-condensing**

ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 listed**

**Levers: Pressure cast zinc, plated to match finish symbols

**

Model:Schlage CO200993M70KP, CO200993M70KPPRHO626PD, CO200993M70KPRHO626BD, CO200993M70KPPRHO626BD

Schlage CO-200-993-M-70-KP Electronic Keypad Exit Trim for Mortise Exit Device

SKU: CO200993M70KP

In Stock
Picture for manufacturer Schlage
icon Chat

$1,537.25

Lever *

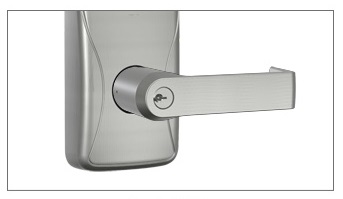

RHO - Rhodes Lever
RHO - Rhodes Lever

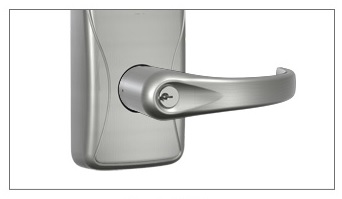

SPA - Sparta Lever
SPA - Sparta Lever

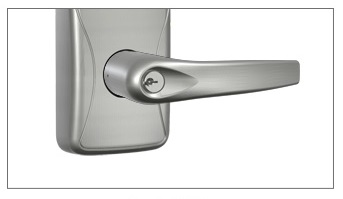

ATH - Athens Lever
ATH - Athens Lever

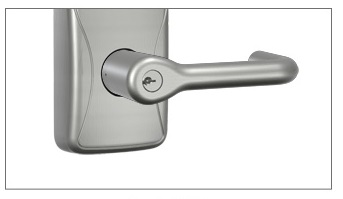

TLR - Tubular Lever
TLR - Tubular Lever

Finish *

626 - Satin Chrome
626 - Satin Chrome

Cylinder *

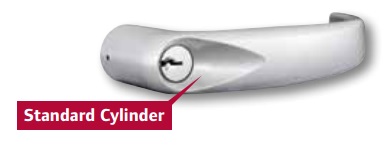

PD - Standard Cylinder
PD - Standard Cylinder

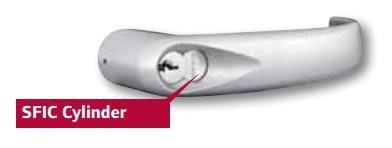

BD - Accepts Small format IC core - less core
BD - Accepts Small format IC core - less core

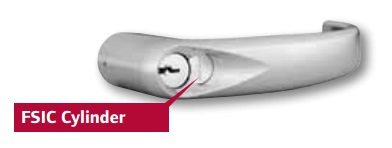

JD - Accepts Large format IC core - less core [-$34.81]
JD - Accepts Large format IC core - less core [-$34.81]

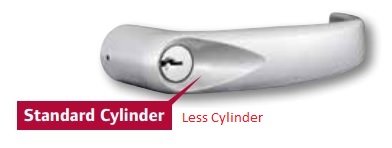

LD - Accepts Standard Cylinder - less Cylinder [-$34.22]
LD - Accepts Standard Cylinder - less Cylinder [-$34.22]

About this item

CO-Series: Standalone Electronic Locks. The CO-Series from Schlage makes it easy to upgrade from traditional mechanical solutions to electronic access control. Electronic access control provides added security, convenience and efficiency.

Resources

Schlage CO-200-993-M-70-KP Electronic Keypad Exit Trim for*Mortise Exit Device*(Panic Device Sold Separately)

The CO-200 is computer programmable with users rights stored on the lock.

The Schlage Utility Software (SUS) mobile app for Android devices is designed specifically for use with the SUS-A cable to set up and act as the link between access control software and select Schlage electronic locks and accessories. This new SUS mobile app and cable replaces the previous SUS solution using a Handheld Device(HHD).  (sold  separately, Click Hare)

Lever Styles:

**

**

**



*Classroom /Storeroom Function (70)*

**In a classroom application a toggle credential can be used to put the lock into a "locked" or "unlocked" state. The state of the lock cannot be changed from the interior

In a storeroom application the lock unlocks when a credential is presented and relocks automatically**

12 button keypad  - 3x4 Matrix* *

Up to 2000 users & up to 2000 audits 3-6 digit PIN codes stored on the lock (Depending on access control software.)

Up to 32 holidays & 16 time zones (Depending on access control software.)

User rights stored on the lock

The ability to add and delete users at the lock

Mechanical key override is standard and compatible with multiple cylinder types

**Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries

Operating Temperature: Exterior -31to 151F (-35to 66C) - Interior 32to 120F (0to 49C) due to battery

Operating Humidity: 0 - 100% non-condensing**

ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 listed**

**Levers: Pressure cast zinc, plated to match finish symbols

**

Model:Schlage CO200993M70KP, CO200993M70KPPRHO626PD, CO200993M70KPRHO626BD, CO200993M70KPPRHO626BD

CO-200-993-M-70-KP
Schlage CO-200-993-M-70-KP Electronic Keypad Exit Trim for Mortise Exit Device

Product code: CO200993M70KP

In Stock

$1,537.25

$1,537.25

Users: 2000

Credential Verification Time: ≤ 1 second

Visual/Audible Communications Tri-colored LED's & audible indicators

Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries, Battery Status - indicated by blinking lights

Operating Temperature - Exterior -31 to 151F (-35 to 66C)

Operating Temperature - Interior 32 to 120F (0 to 49C) due to battery

Operating Humidity: 0 - 100% non-condensing

Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10 C,  FCC Part 15, ADA and RoHS
