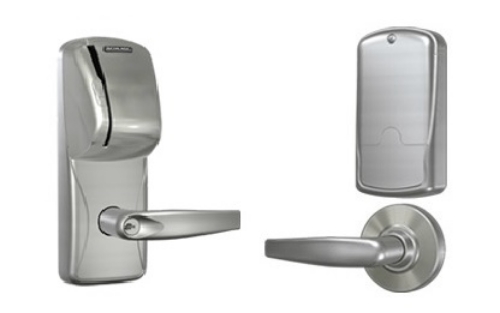

Schlage CO-200-CY-70-MS Cylindrical Lock Magnetic Stripe Reader - with Audit Trail - Classroom / Storeroom

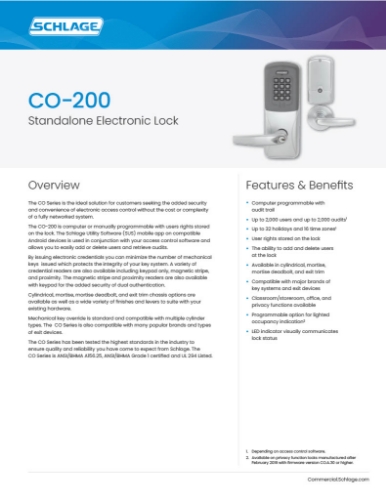

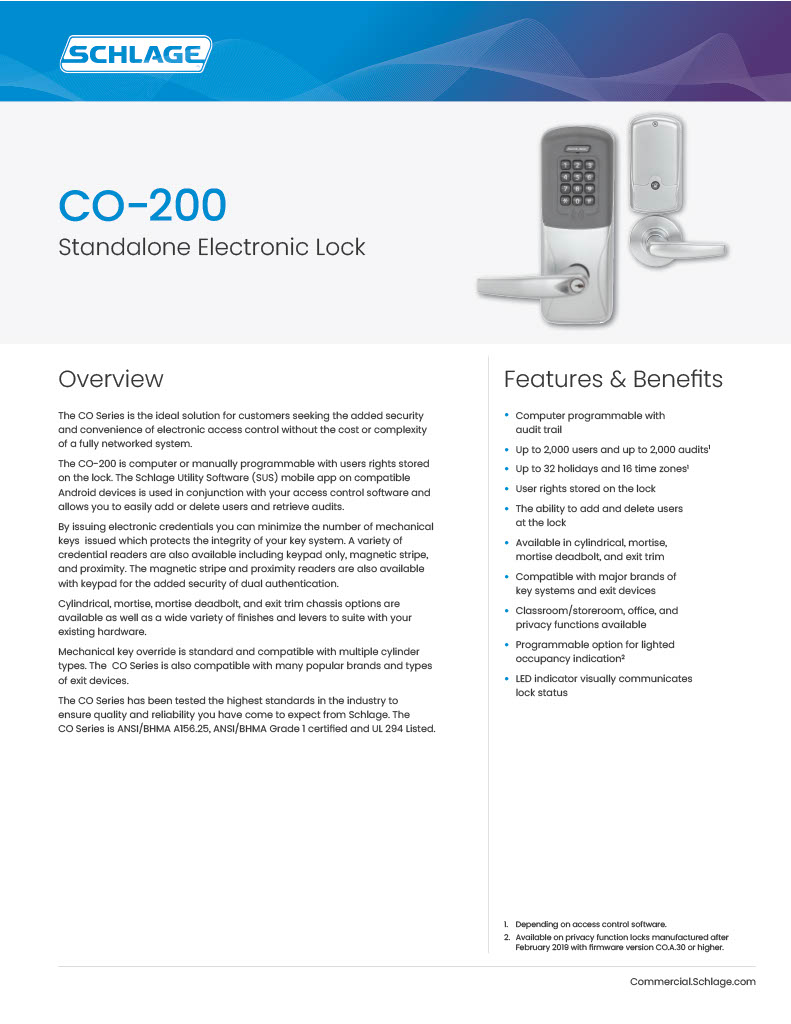

Schlage CO-200-CY-70-MS Cylindrical Magnetic Stripe Reader - with Audit Trail - Classroom / Storeroom Function    The CO-200 is computer programmable with users rights stored on the lock.

The Schlage Utility Software (SUS) mobile app for Android devices is designed specifically for use with the SUS-A cable to set up and act as the link between access control software and select Schlage electronic locks and accessories. This new SUS mobile app and cable replaces the previous SUS solution using a Handheld Device(HHD).  (sold  separately, Click Hare)

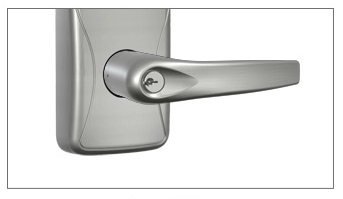

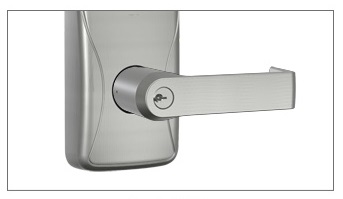

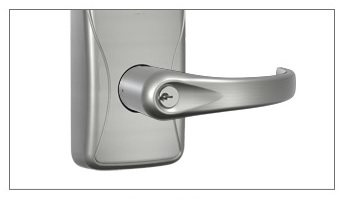

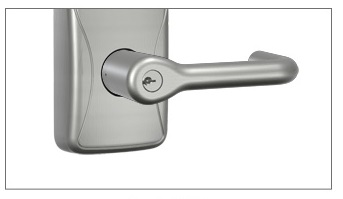

Lever Styles:

**

**

**

*Classroom /Storeroom Function (70)*

**In a classroom application a toggle credential can be used to put the lock into alockedorunlockedstate

The state of the lock cannot be changed from the interior

In a storeroom application the lock unlocks when a credential is presented and relocks automatically**

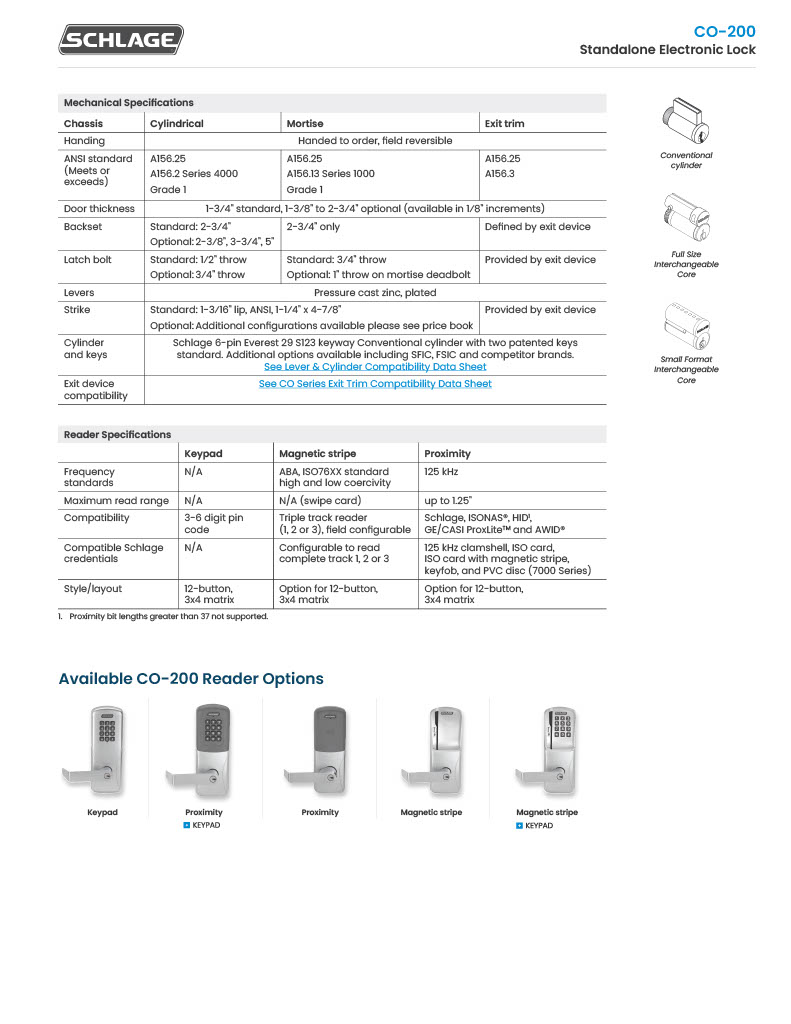

Magnetic Stripe Reader specifications:  Frequency standards: ABA, ISO76XX standard high and low coercivity*. *Triple track reader (1, 2 or 3), field configurable

Field Serviceable to clean reader as needed without removing lock from doorUp to 2000 users & up to 2000 audits (Depending on access control software.)

Up to 32 holidays & 16 time zones (Depending on access control software.)

User rights stored on the lock

The ability to add and delete users at the lock

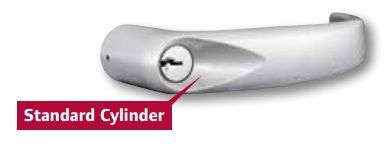

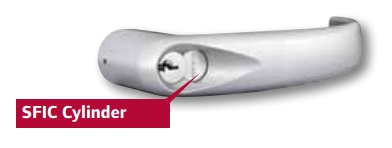

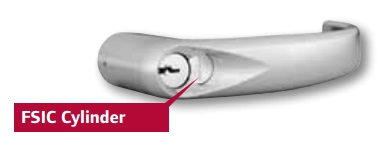

Mechanical key override is standard and compatible with multiple cylinder types

**Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries

Operating Temperature: Exterior -31to 151F (-35to 66C) - Interior 32to 120F (0to 49C) due to battery

Operating Humidity: 0 - 100% non-condensing**

ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 listed**

*Door Thickness:1-3/4" standard, 1-3/8" to 2-3/4" optional (available in 1/8" increments)*

*Backset:2-3/4˝ standard, 2-3/8˝, 3-3/4˝ and 5˝ optional*

*Latch Bolt:1/2˝ throw security latch standard 3/4" throw optional*

*Levers:Pressure cast zinc, plated to match finish symbols*

*Strike:ANSI curved lip strike 1-1/4˝ x 4-7/8˝ x 1-3/16˝ lip  to center standard, optional strikes, lip lengths and  ANSI strike box available*

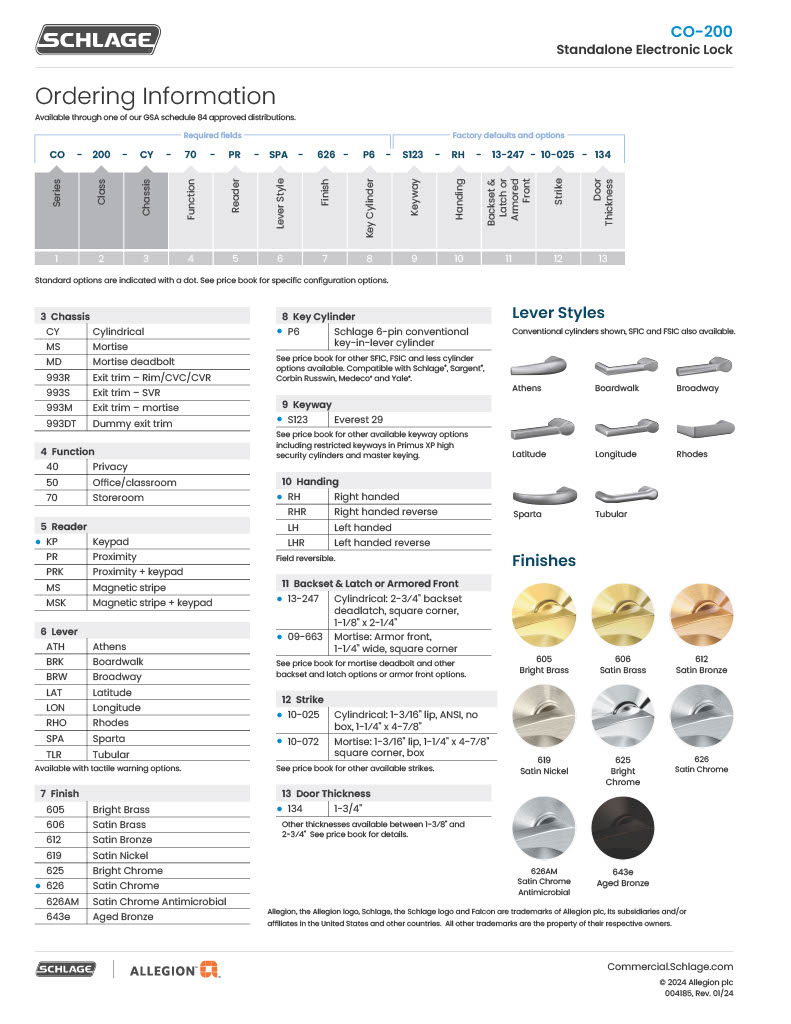

Model:Schlage CO200CY70MSRHO626PD, CO200CY70MSRHO626BD, CO200CY70MSRHO626JD

Schlage CO200CY70MSSPA626PD, CO200CY70MSSPA626BD, CO200CY70MSSPA626JD,

Schlage CO200CY70MSATH626PD, CO200CY70MSATH626BD, CO200CY70MSATH626JD,

Schlage CO200CY70MSTLR626PD, CO200CY70MSTLR626BD, CO200CY70MSTLR626JD,

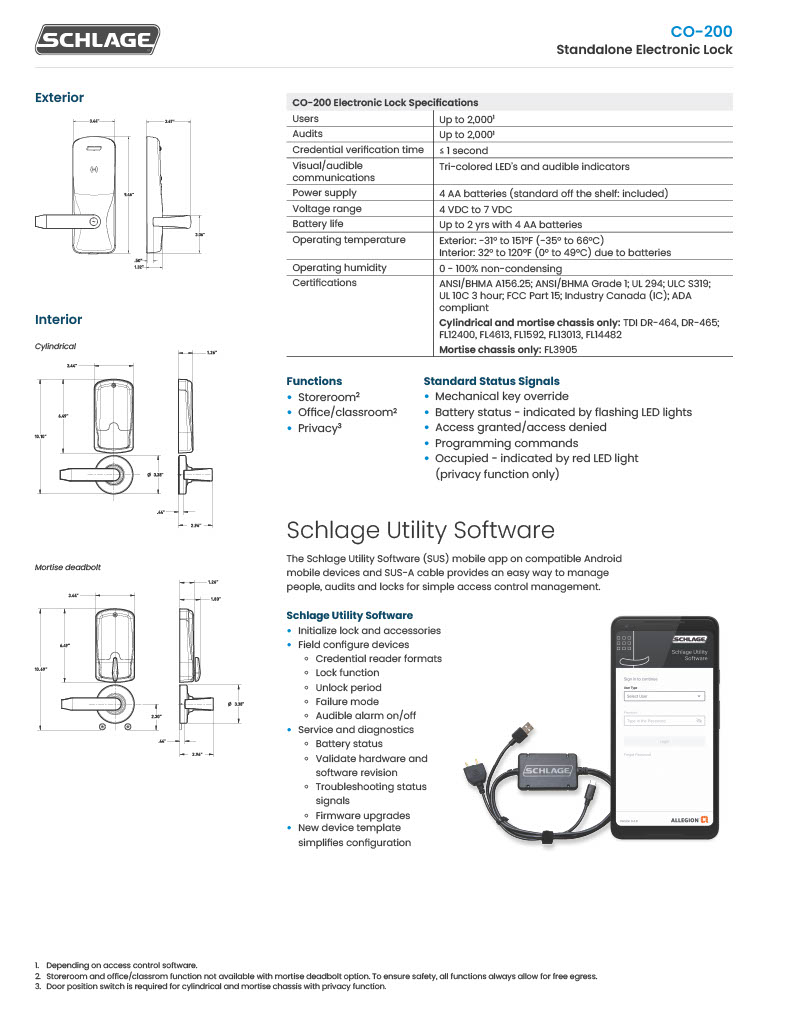

Users: 2000

Credential Verification Time: ≤ 1 second

Visual/Audible Communications Tri-colored LEDs & audible indicators

Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries, Battery Status - indicated by blinking lights

Operating Temperature - Exterior -31 to 151F (-35 to 66C)

Operating Temperature - Interior 32 to 120F (0 to 49C) due to battery

Operating Humidity: 0 - 100% non-condensing

Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10 C, FCC Part 15, ADA and RoHS
