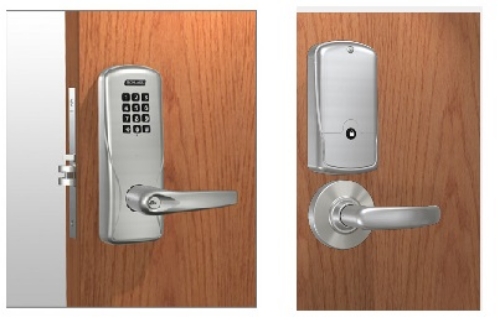

Schlage CO-200-MS-50-KP Mortise Keypad Lock - Computer Programmable with Audit Trail - Office Function

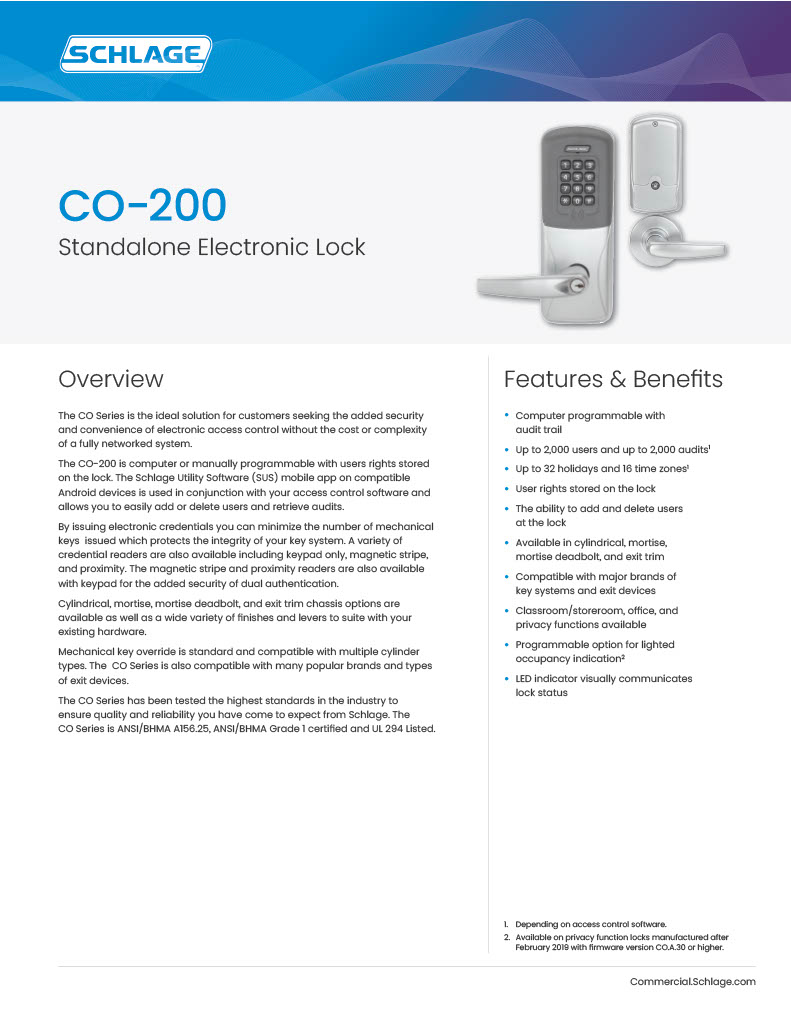

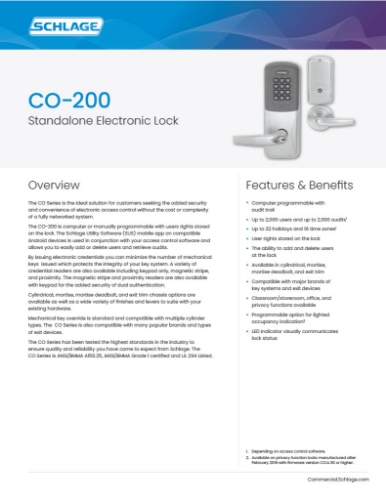

Schlage CO-200-MS-50-KP Mortise Keypad Lock - Computer Programmable with Audit Trail - Office Function    The CO-200 is computer or manually programmable with users rights stored on the lock.

The Schlage Utility Software (SUS) mobile app for Android devices is designed specifically for use with the SUS-A cable to set up and act as the link between access control software and select Schlage electronic locks and accessories. This new SUS mobile app and cable replaces the previous SUS solution using a Handheld Device(HHD).  (sold  separately, Click Hare)

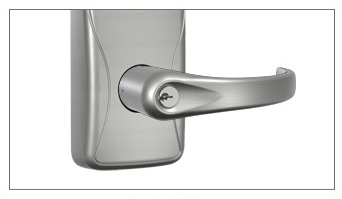

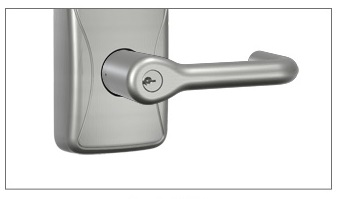

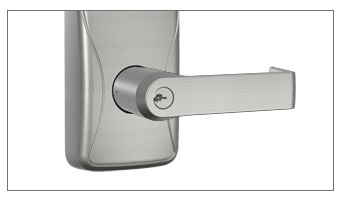

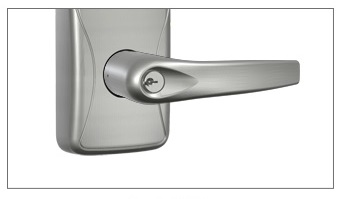

Lever Styles:

**

**

**

Office function (50)

Unlocks with a valid credential, and relocks automatically

Allows the user to press the inside button to leave door unlocked, eliminating the need for a credential to open the door

12 button keypad  - 3x4 Matrix* *

Up to 2000 users & up to 2000 audits 3-6 digit PIN codes stored on the lock (Depending on access control software.)

Up to 32 holidays & 16 time zones (Depending on access control software.)

User rights stored on the lock

The ability to add and delete users at the lock

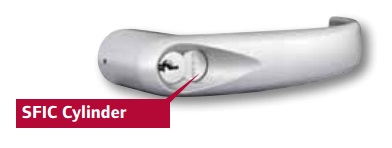

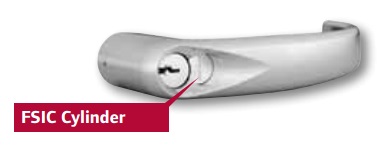

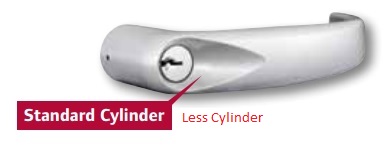

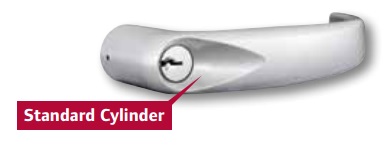

Mechanical key override is standard and compatible with multiple cylinder types

**Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries

Operating Temperature: Exterior -31 to 151F (-35 to 66C) - Interior 32 to 120F (0 to 49C) due to battery

Operating Humidity: 0 - 100% non-condensing**

Meets or exceeds A156.25 and A156.13 Series 1000, Grade 1 operational and security**

**Door Thickness:1-3/4 standard, 1-3/8 to 2-3/4 optional (available in 1/8 increments)

*Backset:2-3/4˝*

*Latch Bolt:3⁄4" throw with anti-friction tongue standard*

**Levers:Pressure cast zinc, plated to match finish symbols

*Strike:ANSI curved lip strike 1-1/4˝ x 4-7/8˝ x 1-3/16˝ lip  to center standard, optional strikes, lip lengths and  ANSI strike box available*

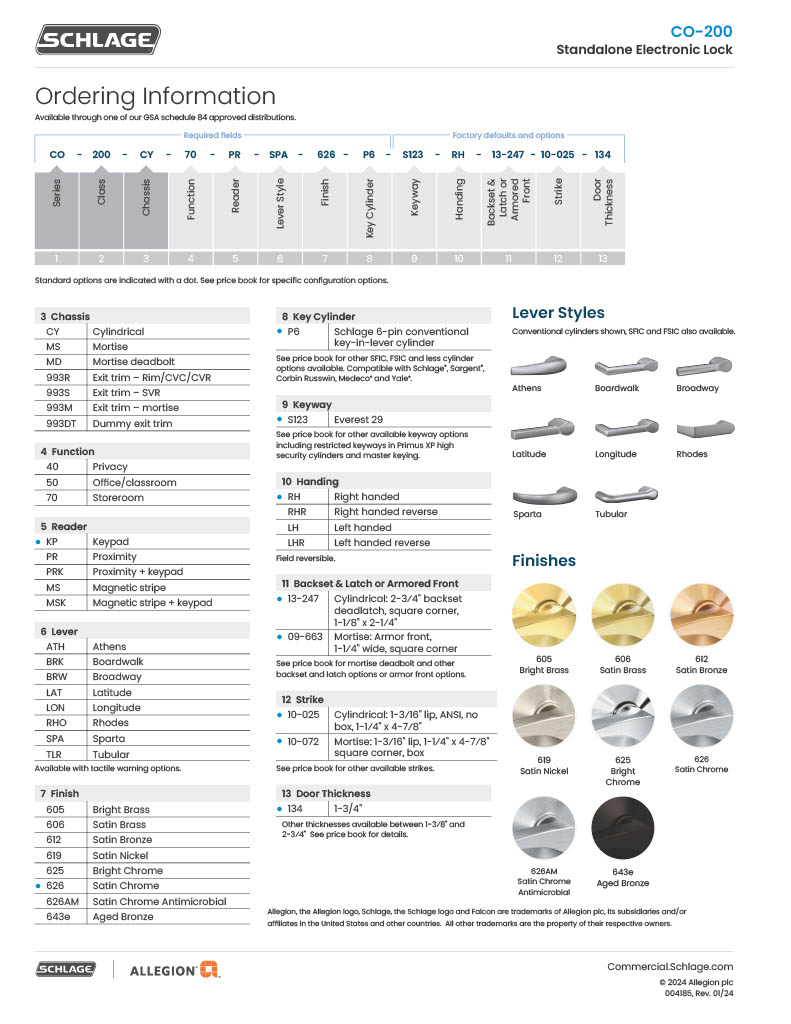

Model:Schlage CO200MS50KPRHO626PD, CO200MS50KPSPA626PD, CO200MS50KPATH626PD, CO200MS50KPTLR626PD

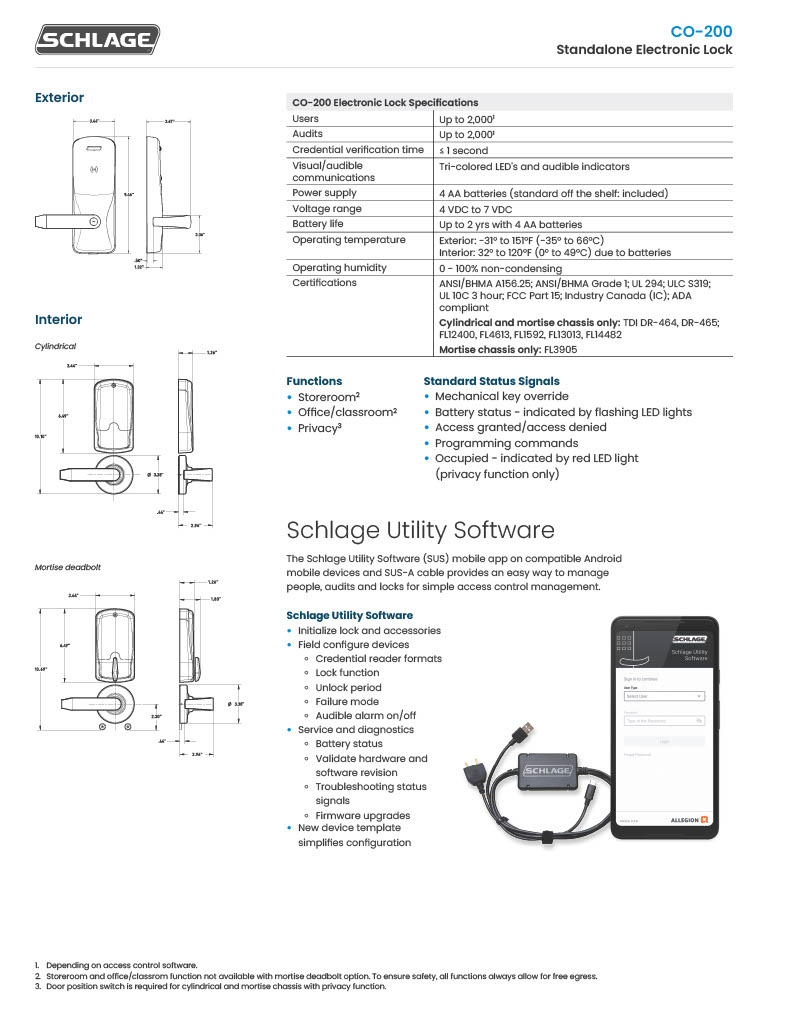

Users: 2000

Credential Verification Time: ≤ 1 second

Visual/Audible Communications Tri-colored LEDs & audible indicators

Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries, Battery Status - indicated by blinking lights

Operating Temperature - Exterior -31 Degree to 15 Degree F (-35 Degree to 66 Degree C)

Operating Temperature - Interior 32 Degree to 120 Degree F (0 Degree to 49 Degree C) due to battery

Operating Humidity: 0 - 100% non-condensing

Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10 C, FCC Part 15, ADA and RoHS
