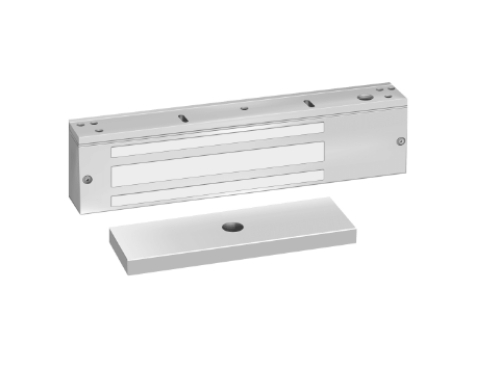

SDC 1511VD Single Electromagnetic Lock W/ Door Position Sensor, 1650lbs - Aluminum

Product Details

SDC 1511VD Single Electromagnetic Lock W/ Door Position Sensor , Surface Mount, 12/24VDC , 1650lbs - Aluminum

Door Position Sensor:Indicates door open and door closed. SPDT Dry, 250 mA @ 30VDC

FEATURES:

  • 1650lbs Holding Force

  • Voltage: 12/24 VDC Voltage Input  350mA @ 24VDC; 670mA @ 12VDC

  • 11" L x 2-3/4" H x 1-9/16" D

  • ANSI/BHMA Grade 1 Compliant

  • BHMA Certified Holding Force

  • UL, CSFM, MEA Listed

  • Modular Design

  • Modular Upgrade Kits

  • Field Upgradeable without removing from the frame

  • Uniform Design & Installation

  • Identical Housing, Template & Accessories

  • Quick Mount Assembly

  • STANDARD MOUNTING FASTENERS: Self Drilling & Tapping Sheet Metal Screws and 10/32 Machine Screws supplied for different application needs.

*













SDC 1511VD Single Electromagnetic Lock W/ Door Position Sensor, 1650lbs - Aluminum

SKU: 1511VD

In Stock

$43.40

$601.00

You saved $557.60

About this item

ANSI Grade 1 Modular Magnetic Lock, 1650 lbs Holding Force. Field upgradeable outputs and servicing without removing from the door frame.1511 SDC EMLock®



*

SDC 1511VD Single Electromagnetic Lock W/ Door Position Sensor , Surface Mount, 12/24VDC , 1650lbs - Aluminum

Door Position Sensor:Indicates door open and door closed. SPDT Dry, 250 mA @ 30VDC

FEATURES:

  • 1650lbs Holding Force

  • Voltage: 12/24 VDC Voltage Input  350mA @ 24VDC; 670mA @ 12VDC

  • 11" L x 2-3/4" H x 1-9/16" D

  • ANSI/BHMA Grade 1 Compliant

  • BHMA Certified Holding Force

  • UL, CSFM, MEA Listed

  • Modular Design

  • Modular Upgrade Kits

  • Field Upgradeable without removing from the frame

  • Uniform Design & Installation

  • Identical Housing, Template & Accessories

  • Quick Mount Assembly

  • STANDARD MOUNTING FASTENERS: Self Drilling & Tapping Sheet Metal Screws and 10/32 Machine Screws supplied for different application needs.

*













1511VDD
SDC 1511VD Single Electromagnetic Lock W/ Door Position Sensor, 1650lbs - Aluminum

Product code: 1511VD

In Stock

$601.00

$43.40

1511VDD
SDC 1511VD Single Electromagnetic Lock W/ Door Position Sensor, 1650lbs - Aluminum

Product code: 1511VD

In Stock

$601.00

$43.40
