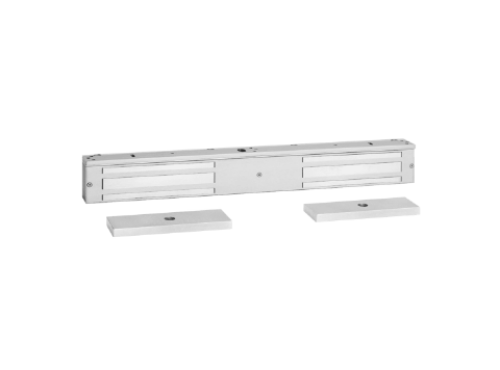

SDC 1512X Double Electromagnetic Lock, Surface Mount, 1650lbs - Dark Bronze Powder Coat

Product Details

SDC 1512X Double Electromagnetic Lock, Surface Mount, 12/24VDC , 1650lbs - Dark Bronze Powder Coat

FEATURES:

  • 1650lbs Holding Force

  • Voltage: 12/24 VDC Voltage Input  700mA @ 24VDC; 1.34A @12VDC

  • 22" L x 2-3/4" H x 1-9/16" D

  • ANSI/BHMA Grade 1 Compliant

  • BHMA Certified Holding Force

  • UL, CSFM, MEA Listed

  • Modular Design

  • Modular Upgrade Kits

  • Field Upgradeable without removing from the frame

  • Uniform Design & Installation

  • Identical Housing, Template & Accessories

  • Quick Mount Assembly

  • STANDARD MOUNTING FASTENERS: Self Drilling & Tapping Sheet Metal Screws and 10/32 Machine Screws supplied for different application needs.









SDC 1512X Double Electromagnetic Lock, Surface Mount, 1650lbs - Dark Bronze Powder Coat

SKU: 1512X

In Stock

$898.10

$1,245.00

You saved $346.90

About this item

ANSI Grade 1 Modular Magnetic Lock, 1650 lbs Holding Force. Field upgradeable outputs and servicing without removing from the door frame.1511 SDC EMLock®



*

SDC 1512X Double Electromagnetic Lock, Surface Mount, 12/24VDC , 1650lbs - Dark Bronze Powder Coat

FEATURES:

  • 1650lbs Holding Force

  • Voltage: 12/24 VDC Voltage Input  700mA @ 24VDC; 1.34A @12VDC

  • 22" L x 2-3/4" H x 1-9/16" D

  • ANSI/BHMA Grade 1 Compliant

  • BHMA Certified Holding Force

  • UL, CSFM, MEA Listed

  • Modular Design

  • Modular Upgrade Kits

  • Field Upgradeable without removing from the frame

  • Uniform Design & Installation

  • Identical Housing, Template & Accessories

  • Quick Mount Assembly

  • STANDARD MOUNTING FASTENERS: Self Drilling & Tapping Sheet Metal Screws and 10/32 Machine Screws supplied for different application needs.









1512V
SDC 1512X Double Electromagnetic Lock, Surface Mount, 1650lbs - Dark Bronze Powder Coat

Product code: 1512X

In Stock

$1,245.00

$898.10

1512V
SDC 1512X Double Electromagnetic Lock, Surface Mount, 1650lbs - Dark Bronze Powder Coat

Product code: 1512X

In Stock

$1,245.00

$898.10
