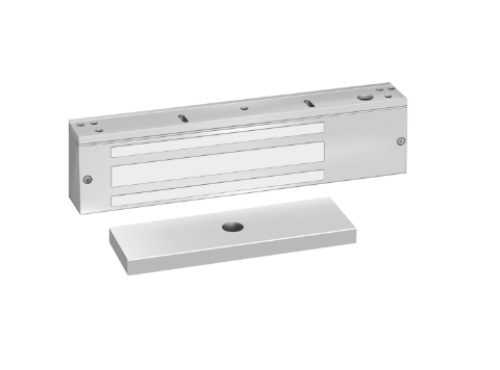

SDC 1511X Single Electromagnetic Lock, Surface Mount, 1650lbs - Dark Bronze Powder Coat

Product Details

SDC 1511X Single Electromagnetic Lock, Surface Mount, 12/24VDC , 1650lbs Dark Bronze Powder Coat

FEATURES:

  • 1650lbs Holding Force

  • Voltage: 12/24 VDC Voltage Input  350mA @ 24VDC; 670mA @ 12VDC

  • 11" L x 2-3/4" H x 1-9/16" D

  • ANSI/BHMA Grade 1 Compliant

  • BHMA Certified Holding Force

  • UL, CSFM, MEA Listed

  • Modular Design

  • Modular Upgrade Kits

  • Field Upgradeable without removing from the frame

  • Uniform Design & Installation

  • Identical Housing, Template & Accessories

  • Quick Mount Assembly

  • STANDARD MOUNTING FASTENERS: Self Drilling & Tapping Sheet Metal Screws and 10/32 Machine Screws supplied for different application needs.

*









SDC 1511X Single Electromagnetic Lock, Surface Mount, 1650lbs - Dark Bronze Powder Coat

SKU: 1511X

In Stock

$469.00

$650.00

You saved $181.00

About this item

ANSI Grade 1 Modular Magnetic Lock, 1650 lbs Holding Force. Field upgradeable outputs and servicing without removing from the door frame.1511 SDC EMLock®



*

SDC 1511X Single Electromagnetic Lock, Surface Mount, 12/24VDC , 1650lbs Dark Bronze Powder Coat

FEATURES:

  • 1650lbs Holding Force

  • Voltage: 12/24 VDC Voltage Input  350mA @ 24VDC; 670mA @ 12VDC

  • 11" L x 2-3/4" H x 1-9/16" D

  • ANSI/BHMA Grade 1 Compliant

  • BHMA Certified Holding Force

  • UL, CSFM, MEA Listed

  • Modular Design

  • Modular Upgrade Kits

  • Field Upgradeable without removing from the frame

  • Uniform Design & Installation

  • Identical Housing, Template & Accessories

  • Quick Mount Assembly

  • STANDARD MOUNTING FASTENERS: Self Drilling & Tapping Sheet Metal Screws and 10/32 Machine Screws supplied for different application needs.

*









1511VDD
SDC 1511X Single Electromagnetic Lock, Surface Mount, 1650lbs - Dark Bronze Powder Coat

Product code: 1511X

In Stock

$650.00

$469.00

1511VDD
SDC 1511X Single Electromagnetic Lock, Surface Mount, 1650lbs - Dark Bronze Powder Coat

Product code: 1511X

In Stock

$650.00

$469.00
