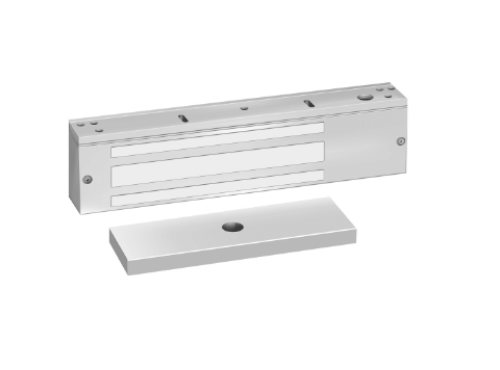

SDC 1511VBA Single Electromagnetic Lock W/ Magnetic Bond Sensor & Anti-tamper sensor, 1650lbs - Aluminum

Product Details

SDC 1511VBA Single Electromagnetic Lock W/ Magnetic Bond Sensor & Anti-tamper sensor, Surface Mount, 12/24VDC , 1650lbs - Aluminum

Magnetic Bond Sensor: Indicates locked and unlocked, low holding power, tampering and obstruction between armature and magnetic core. 1510 & 1570 Series: SPDT Dry, 250 mA @ 30VDC.

Anti-tamper Sensor:Indicates access cover removal. SPDT Dry, 1 Amp @ 30VDC.

FEATURES:

  • 1650lbs Holding Force

  • Voltage: 12/24 VDC Voltage Input  350mA @ 24VDC; 670mA @ 12VDC

  • 11" L x 2-3/4" H x 1-9/16" D

  • ANSI/BHMA Grade 1 Compliant

  • BHMA Certified Holding Force

  • UL, CSFM, MEA Listed

  • Modular Design

  • Modular Upgrade Kits

  • Field Upgradeable without removing from the frame

  • Uniform Design & Installation

  • Identical Housing, Template & Accessories

  • Quick Mount Assembly

  • STANDARD MOUNTING FASTENERS: Self Drilling & Tapping Sheet Metal Screws and 10/32 Machine Screws supplied for different application needs.1650lbs Holding Force









SDC 1511VBA Single Electromagnetic Lock W/ Magnetic Bond Sensor & Anti-tamper sensor, 1650lbs - Aluminum

SKU: 1511VBA

In Stock

$496.30

$687.00

You saved $190.70

About this item

ANSI Grade 1 Modular Magnetic Lock, 1650 lbs Holding Force. Field upgradeable outputs and servicing without removing from the door frame.1511 SDC EMLock®



*

SDC 1511VBA Single Electromagnetic Lock W/ Magnetic Bond Sensor & Anti-tamper sensor, Surface Mount, 12/24VDC , 1650lbs - Aluminum

Magnetic Bond Sensor: Indicates locked and unlocked, low holding power, tampering and obstruction between armature and magnetic core. 1510 & 1570 Series: SPDT Dry, 250 mA @ 30VDC.

Anti-tamper Sensor:Indicates access cover removal. SPDT Dry, 1 Amp @ 30VDC.

FEATURES:

  • 1650lbs Holding Force

  • Voltage: 12/24 VDC Voltage Input  350mA @ 24VDC; 670mA @ 12VDC

  • 11" L x 2-3/4" H x 1-9/16" D

  • ANSI/BHMA Grade 1 Compliant

  • BHMA Certified Holding Force

  • UL, CSFM, MEA Listed

  • Modular Design

  • Modular Upgrade Kits

  • Field Upgradeable without removing from the frame

  • Uniform Design & Installation

  • Identical Housing, Template & Accessories

  • Quick Mount Assembly

  • STANDARD MOUNTING FASTENERS: Self Drilling & Tapping Sheet Metal Screws and 10/32 Machine Screws supplied for different application needs.1650lbs Holding Force
