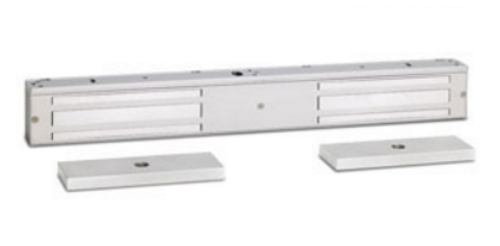

SDC 1572V Energy Saver Double Electromagnetic Lock, 1200lbs, 6 Watts Max. @ 12/24VDC - Aluminum
Product Details
SDC 1572V Energy Saver Double Electromagnetic Lock, Surface Mount*, 1200lbs*, 6 Watts Max. @ 12/24VDC - Aluminum
FEATURES:
1200lbs Holding Force
Voltage: 12/24VDC Voltage Sensing Input, 250mA @ 24VDC; 500mA @ 12VDC
22" L x 2-3/4" H x 1-9/16" D
ANSI/BHMA Grade 1 Compliant
BHMA Certified Holding Force
UL, CSFM, MEA Listed
Modular Design
Modular Upgrade Kits
Field Upgradeable without removing from the frame
Uniform Design & Installation
Identical Housing, Template & Accessories
Quick Mount Assembly
STANDARD MOUNTING FASTENERS: Self Drilling & Tapping Sheet Metal Screws and 10/32 Machine Screws supplied for different application needs.
