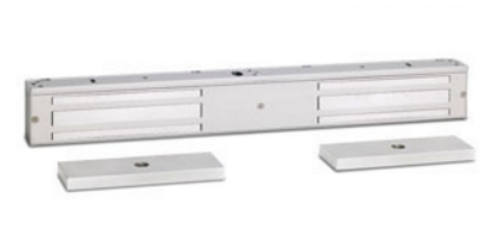

SDC 1572VDL Energy Saver Double Magnetic Lock W/ Door Position Sensor & LED Indicator, 1200lbs, 6 Watts Max. @ 12/24VDC - Aluminum

Product Details

SDC 1572VDL Energy Saver Double Electromagnetic Lock W/ Door Position Sensor &*Bi-color Status LED Indicator*, Surface Mount, 1200lbs, 6 Watts Max. @ 12/24VDC - Aluminum

Door Position Sensor:Indicates door open and door closed. SPDT Dry, 250 mA @ 30VDC

Bi-color Status LED Indicator:Field selectable Red, Green, or Amber (requires additional wiring) Indicates lock energized when wired to lock input.

Indicates de-energized/unlocked or “Enter/Go" when wired to optional timer module.

Indicates energized and de-energized or “Enter/Go" when wired to access control auxiliary output.

Indicates door is closed and locked and door is unlocked when wired to BA

FEATURES:

  • 1200lbs Holding Force

  • Voltage: 12/24VDC Voltage Sensing Input, 250mA @ 24VDC; 500mA @ 12VDC

  • 22" L x 2-3/4" H x 1-9/16" D

  • ANSI/BHMA Grade 1 Compliant

  • BHMA Certified Holding Force

  • UL, CSFM, MEA Listed

  • Modular Design

  • Modular Upgrade Kits

  • Field Upgradeable without removing from the frame

  • Uniform Design & Installation

  • Identical Housing, Template & Accessories

  • Quick Mount Assembly

  • STANDARD MOUNTING FASTENERS: Self Drilling & Tapping Sheet Metal Screws and 10/32 Machine Screws supplied for different application needs.







SDC 1572VDL Energy Saver Double Magnetic Lock W/ Door Position Sensor & LED Indicator, 1200lbs, 6 Watts Max. @ 12/24VDC - Aluminum

SKU: 1572VDL

In Stock

$807.10

$1,118.00

You saved $310.90

About this item

Energy Saver, ANSI Grade 1, Modular Magnetic Lock, 1200 lbs Holding Force with only 3 Watts power consumption. Field upgradeable monitoring outputs and servicing without removing from the door frame.



*
