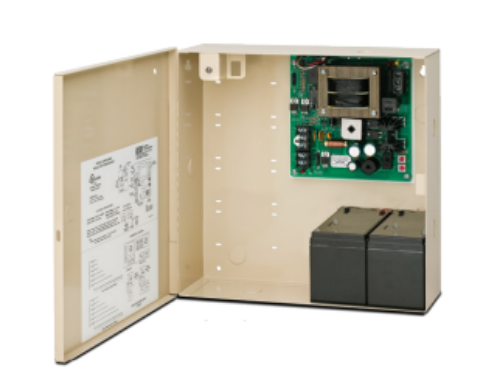

SDC 632RF Power Supply With Charger, 12/24VDC, 2 Amp, Emerg. Release, 12" x 12" Cabinet

SDC 632RF Power Supply With Charger, 12/24VDC, 2 Amp, Emerg. Release, 12" x 12" Cabinet, UL, Class 2

631RF - Power Supply, plus 12" W Cabinet

Features:

• Filtered and Regulated: The output filtering stabilizes the DC output voltage and eliminates AC line noise. The solid state regulator maintains the selected output voltage at 12VDC or 24VDC regardless of the output load changes, including battery charging.

• Field Selectable 12 or 24VDC: The output is field selectable for 12 or 24VDC output.

• 250 mA Battery Charger Output: A separate PTC protected, battery charger output provides 13.5VDC or 27VDC.

• LED System Status Indicator: Amber - AC and DC voltages are OK, Green - No DC output, Red - No AC input, powered by batteries

• Emergency Release Input: (Standard) A signal input from the fire life safety system turns off the secondary output releasing all failsafe locks. When not used for emergency release, this input may be used as main on-off control.

• Class 2 Output: Where permitted by code, conduit is not required for the Class 2 output.

• Low Battery Disconnect: (Standard) Batteries are disconnected from the output circuit prior to deep discharge preventing battery destruction.

• Isolated Charging Circuit: (Standard) While the charging output is 13.5VDC or 27VDC, the secondary output is unaffected and precisely maintained at the selected 12 or 24VDC. This ensures system components are powered by their specified voltage.The secondary output current is maintained at the full 2 Amp capacity and is not de-rated when charging batteries.

Specifications:

Electrical:

Input: 115VAC @ 800 mA, 50/60 Hz Fused

Secondary Output: Selectable 12VDC or 24VDC @ 2 Amp, poly fuse protected, Class 2

Battery Charger Output: PTC protected 250mA @ 13.5 or 27VDC

Mechanical:

631RF Cabinet 12" W x 12" H x 4"D, Steel 20 Ga.
