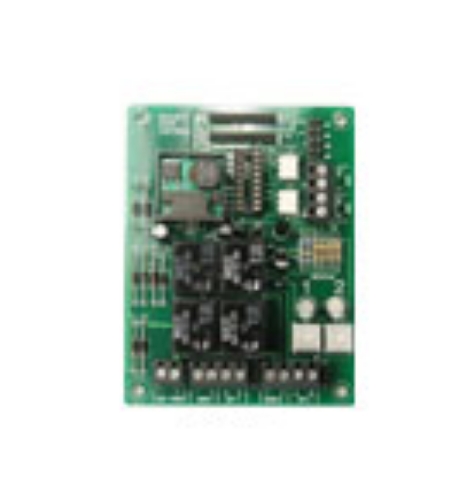

SDC EMC Electric Retraction Sequencer

SDC EMC Electric Retraction Sequencer

Features:

• The two sequencer channels may be operated as two independent doors or in tandem mode for pairs of doors.

• Each sequencer channel provides an output to power the ELR device and a “delayed" dry auxiliary output for activation of an automatic door operator. All outputs are field selectable as Normally Open or Normally Closed.

• When the EMC is used in the tandem mode, power supply requirements for a pair of doors are minimized.

• Since the attached electric latch retraction devices are powered in a sequential manner, the inrush current of each device is staggered. This creates a lower current requirement upon activation. A smaller power supply can now be used to operate the pair of devices.

Specifications:

Input Voltage: 12VDC or 24VDC

Input Current: 140mA max

Output Voltage: 12VDC or 24VDC (Same as Input Voltage)

Operator & ELR Contacts: 10 AMP @ 30VDC (Resistive) (4 Relays)

Access Control Inputs: N/O Dry Contact (2 Inputs)

Dimensions: 3.20"W x 4.30"H
