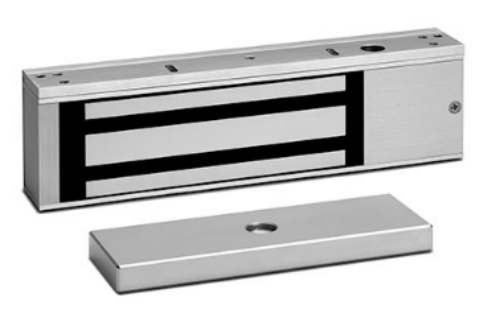

SDC Excel™ E1200 Electromagnetic Lock, Security Access Control & Mantraps, 1200 lbs

SDC Excel™ E1200 Electromagnetic Lock, Security Access Control & Mantraps, 1200 lbs Holding Force

APPLICATION:

Security Access Control & Mantraps 1200 lb / 545 kg holding force magnetic lock for perimeter and interior door security and access control. Door and lock status outputs included for remote monitoring, mantraps and system application needs.

STANDARD FEATURES:

• Door status, lock status and Bi-color LED

• Interlocking quick mount assembly

• Adjustable mounting bracket with choice of self drilling and tapping mounting screws or machine screws

• Wire access chamber with terminal block

• Dual voltage 12/24VDC

• 628 Clear anodized aluminum

Specification:

Mechanical:

Holding Force: 1200 lbs / 545 kg

Lock: 10-1/2" L x 2-7/8" H x 1-5/8" D; (266 L x 73 H x 41 D mm)

Armature: 7-5/16" L x 2-3/8" H x 5/8" D; (186 L x 61 H x 16 D mm)

Electrical:

Circuitry & Wiring: PC board with voltage and current spike protection, instant release anti-residual magnetism circuit, terminal block for power input and status outputs

Circuitry: Voltage and current spike protection and instant release anti-residual magnetism circuitry

Voltage: 12/24VDC, field selectable

Current: 500 mA @ 12VDC; 250 mA @ 24VDC

Lock Status Contact: SPDT, 2 Amp @ 30VDC

Door Status Contact: SPDT, 250 mA @ 30
