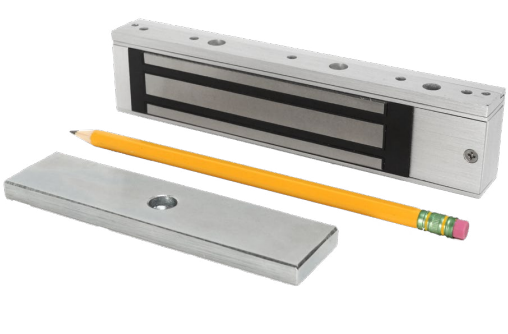

SDC Excel™ E300 Micro Cabinet Magnetic Lock, 300lbs Holding Force

Product Details

SDC Excel™ E300 Micro Cabinet Magnetic Lock, 300lbs Holding Force

FEATURES

  • Failsafe Operation

  • Easy installation in small cabinets or restricted spaces. No special tools are required.

  • No moving parts, virtually maintenance free.

  • Spike and surge protection for solid-state devices on same line.

  • Lock Status

  • Interlocking Quick Mount Assembly

  • Mounting Bracket with Sheet Metal Screws

  • Wire Access Chamber with Terminal Block

  • Dual Voltage 12/24VDC

  • 628 Clear Anodized Aluminum housing

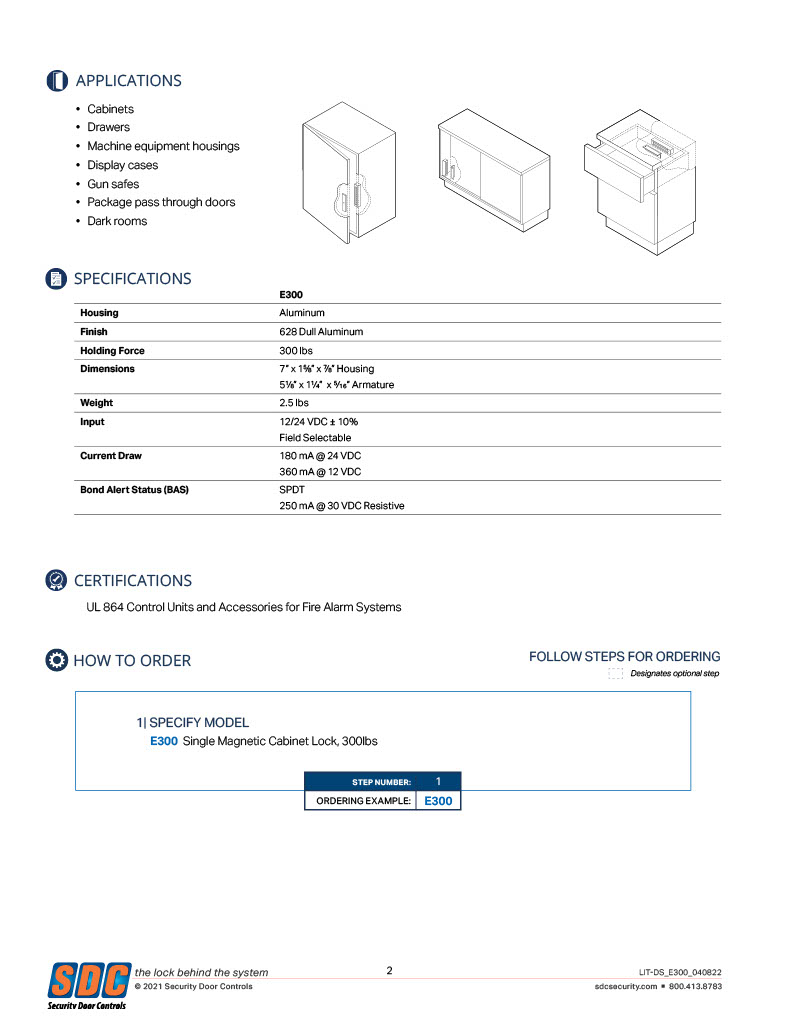

Specifications:

Holding Force 300 Lbs/136 Kg

Lock 7" L x 1.625" H x 0.875" D;

Armature 5.125" L x 1.25" H x 0.3125" D;

Circuitry & Wiring: PC board with voltage and current spike protection, instant release anti-residual magnetism circuit, terminal block for power input

Voltage:  Dual 12/24VDC +/-10%, field selectable jumper pin connections

Current 360 mA @ 12VDC; 180 mA @ 24VDC

Lock Status Contact SPDT, 250 mA @ 30VDC

SDC Excel™ E300 Micro Cabinet Magnetic Lock, 300lbs Holding Force

SKU: E300

In Stock

$147.00

$203.00

You saved $56.00

About this item

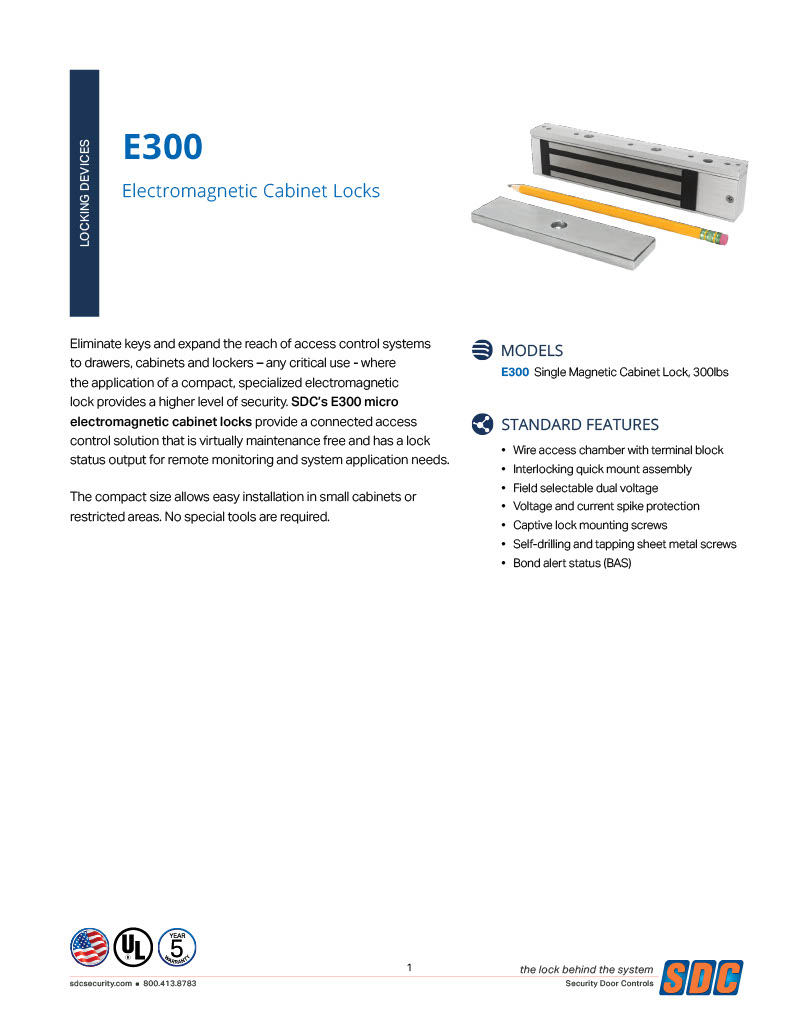

Excel™ E300 Micro Cabinet Lock Eliminate keys and expand the reach of access control systems to drawers, cabinets and lockers – any critical use - where the application of a compact, specialized electromagnetic lock provides a higher level of security. SDC’s E300 is a connected access control solution that is virtually maintenance free and has a lock status output for remote monitoring and system application needs.

SDC Excel™ E300 Micro Cabinet Magnetic Lock, 300lbs Holding Force

FEATURES

  • Failsafe Operation

  • Easy installation in small cabinets or restricted spaces. No special tools are required.

  • No moving parts, virtually maintenance free.

  • Spike and surge protection for solid-state devices on same line.

  • Lock Status

  • Interlocking Quick Mount Assembly

  • Mounting Bracket with Sheet Metal Screws

  • Wire Access Chamber with Terminal Block

  • Dual Voltage 12/24VDC

  • 628 Clear Anodized Aluminum housing

Specifications:

Holding Force 300 Lbs/136 Kg

Lock 7" L x 1.625" H x 0.875" D;

Armature 5.125" L x 1.25" H x 0.3125" D;

Circuitry & Wiring: PC board with voltage and current spike protection, instant release anti-residual magnetism circuit, terminal block for power input

Voltage:  Dual 12/24VDC +/-10%, field selectable jumper pin connections

Current 360 mA @ 12VDC; 180 mA @ 24VDC

Lock Status Contact SPDT, 250 mA @ 30VDC

E3000
SDC Excel™ E300 Micro Cabinet Magnetic Lock, 300lbs Holding Force

Product code: E300

In Stock

$203.00

$147.00

E3000
SDC Excel™ E300 Micro Cabinet Magnetic Lock, 300lbs Holding Force

Product code: E300

In Stock

$203.00

$147.00
