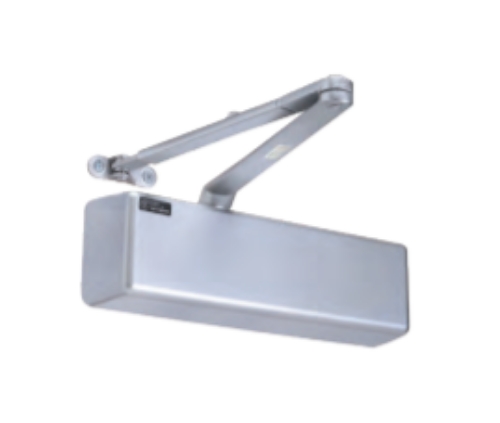

Tell DC100123 Heavy-Duty Commercial Grade 1 Closer - Parallel Arm Bracket - Adjustable 1-6 - Full Cover - Backcheck - Duro

Tell DC100123 Heavy-Duty Commercial Grade 1 Surface Applied Close - Duro - Full Cover - Backcheck

• Parallel Arm Bracket.
• Adjustable 1-6
• Sex Nuts.
• Backcheck.
• Meets ADA.
• Full Cover.
• Lifetime Warranty.

Standard Features:

Performance: Complies with ANSI A156.4, Grade 1, 2,000,000 cycles, UL/ULC listed up to 3 hours fire rated.

Chassis/Closer: Cast Steel.

Handing: Non-handed.

Mounting: TRI-PACK - regular, top jamb and parallel arm applications.

Main Arm: Forged steel, accommodates reveals up to 3-1/4", adjustable extension arm.

Spring Power: Adjustable 1 - 6 sizes.

Backcheck: Adjustable, hydraulic - providing cushioning and preventing uncontrolled openings of the door.

Valves: Adjustable, independent, non-critical (sweep and latch), consistent closing speeds.

Fasteners: Metal screws included for hollow metal and aluminum mounting applications. Wood screws included for wood door mounting applications. Closers are packed with thru-bolts.

Door Range: Up to 180 degrees.

Door Preparation: 5" horizontal and 2 1/4" vertical mounting hole locations (retrofits traditional closer).

Warranty: 25 years. Optional Feature: Covers High impact plastic and plated kit: cover, arm & bracket.

Model: FLA DC100123, DC100123 Tell, DC100123, 12916, 12916 Tell Tell 12916, DC100123Tell, TellDC100123
