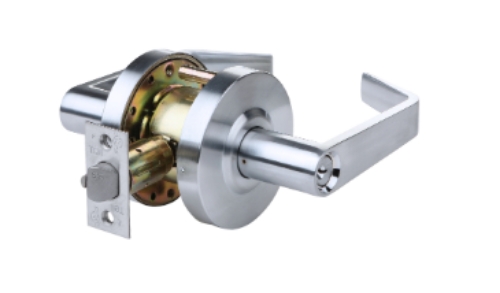

Tell LC2686 CTL Grade 2 Storeroom Lock

Tell LC2686 CTL Grade 2 Storeroom Lock

Latch operated by rotating inside lever or key in outside lever Outside lever always fixed

Lever:Non-handed

Latch:1-1/8" x 2-1/4" square corner faceplate, 3/4" housing, 1/2" throw (stainless steel)

Thru-bolts:Thru-bolts standard. Removable available.

Backset:2-3/8" or 2-3/4

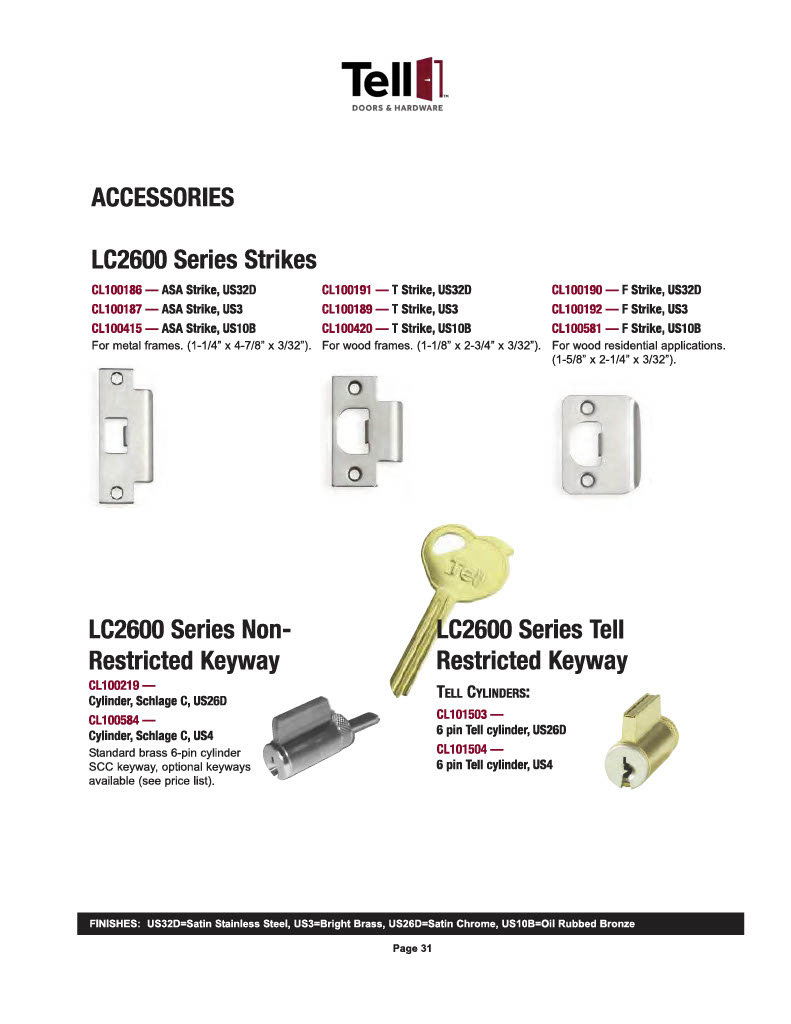

Strike:Square corner 1-1/4" x 4-7/8" ANSI ASA Strike, Standard. T Strike (1-1/8" x 2-3/4"), and F Strike (full lip) available   Door Range: 1-1/2" to 2"   Door Preparation:2-1/8" diameter for bore, 1" diameter latch bore. Fits standard 161 door prep.

Cylinder:Schlage (SCC), Schlage C 6-pin keyway standard. (SC5) 5-pin, Schlage E (SCE), Arrow A (ARA), Corbin 60 (C06), Corbin 59A1 (C059A1), Corbin Russwin L4 (CL4), Russwin D1 (RD1), Sargent LA (SAL), Schlage F (SCF), Weiser E (WRE), Yale 8 (YA8), Yale GA (YGA) available

Keying:Available Grand master key (GMK), construction master key (CMK), master key (MK), keyed different (KD), keyed alike (KA), 0-bitted (0BIT)

Keys:Two nickel silver per lock   Warranty: 1 year limited

Performance:Complies with ANSI A156.2, Series 4000, Grade 2, 400,000 cycles, ANSI A117.1 accessibility (ADA) code, UL listed for 3 hour fire door

Chassis:Cylindrical, steel-coated w/ zinc dichronate (corrision resistance)
