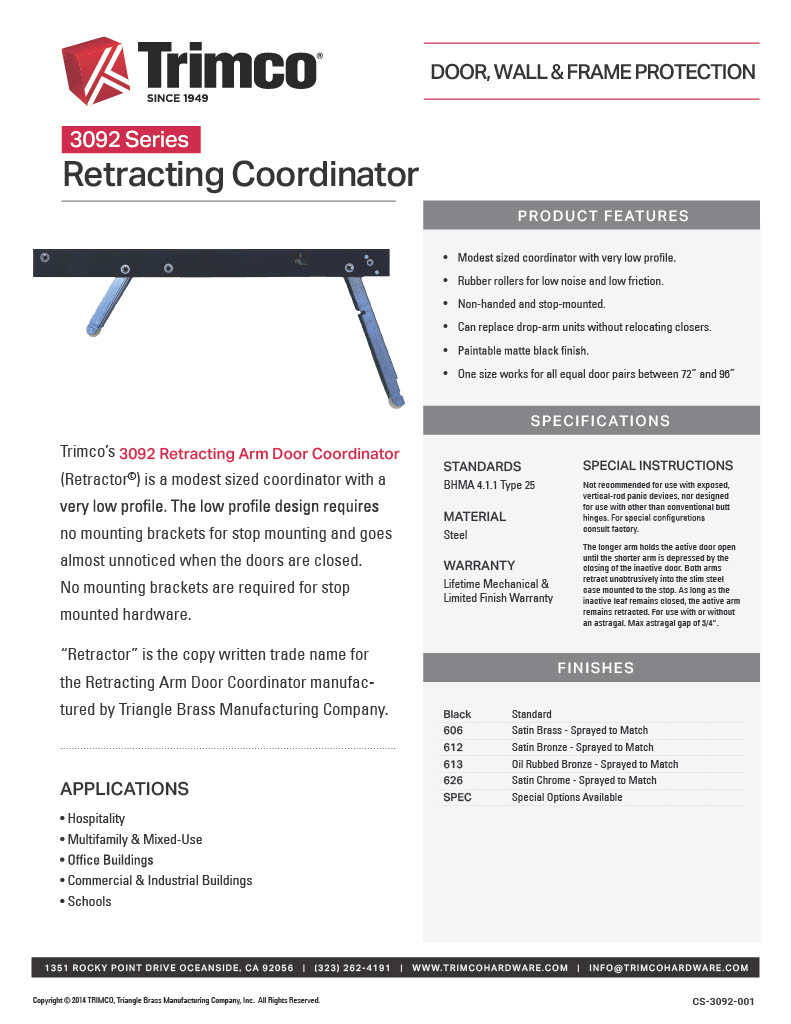

Trimco 3092 Retracting Door Coordinator - Stop Mount

Retracting Door Coordinator

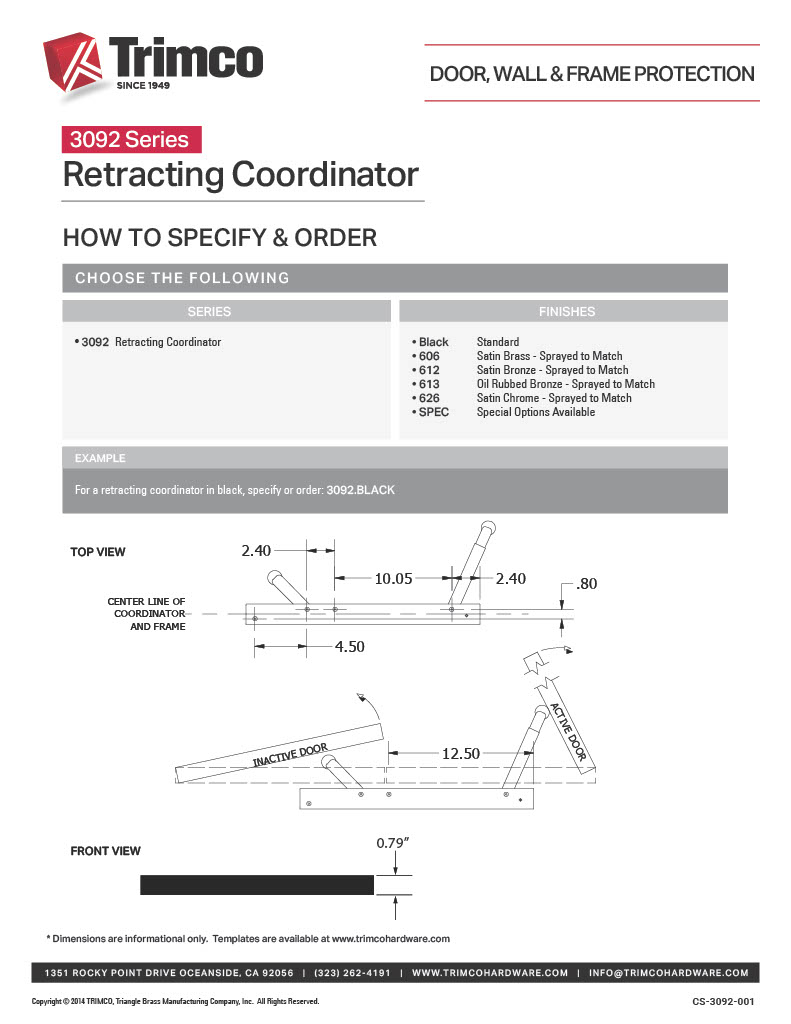

Overall Size:  1-5/8" x 5/8" x 18"

The 3092 Retracting Arm Door Coordinator (Retractor) is designed for use on pairs of doors with or without astragal. Not for use on unequal pairs of doors or with exposed vertical rods.

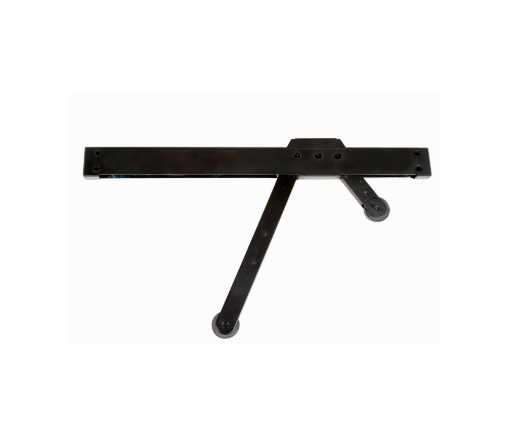

The longer arm holds the active door open until the shorter arm is depressed by the closing of the inactive door. Both arms retract unobtrusively into the slim steel case mounted to the stop. As long as the inactive leaf remains closed, the active arm remains retracted. This modest sized coordinator has a very low profile and is almost unnoticed when the doors are closed. No mounting brackets are required for stop mounted hardware.

UL ListedFinish: Black (paintable) standardIf a 606, 612, 613, 626 finish is needed, the finish will be sprayed to match.Rubber rollers for low noise and low friction - Non-handed - Stop mounted - Can replace drop-arm units without relocating closers - Ideal for use with TRIMCO Series 3800 Series Auto Flush Bolts - Matte Black finish - One size works for all equal pairs of door between 72" and 96" (max astragal. overlap is 3/4") - Meets ANSI 156.3 type 21 - Not recommended for use with exposed, vertical rod panic devices, nor designed for use with other than conventional butt hinges.

*"Retractor" is the copywritten trade name for the Retracting Arm Door Coordinator manufactured by Triangle Brass Manufacturing Company. *
