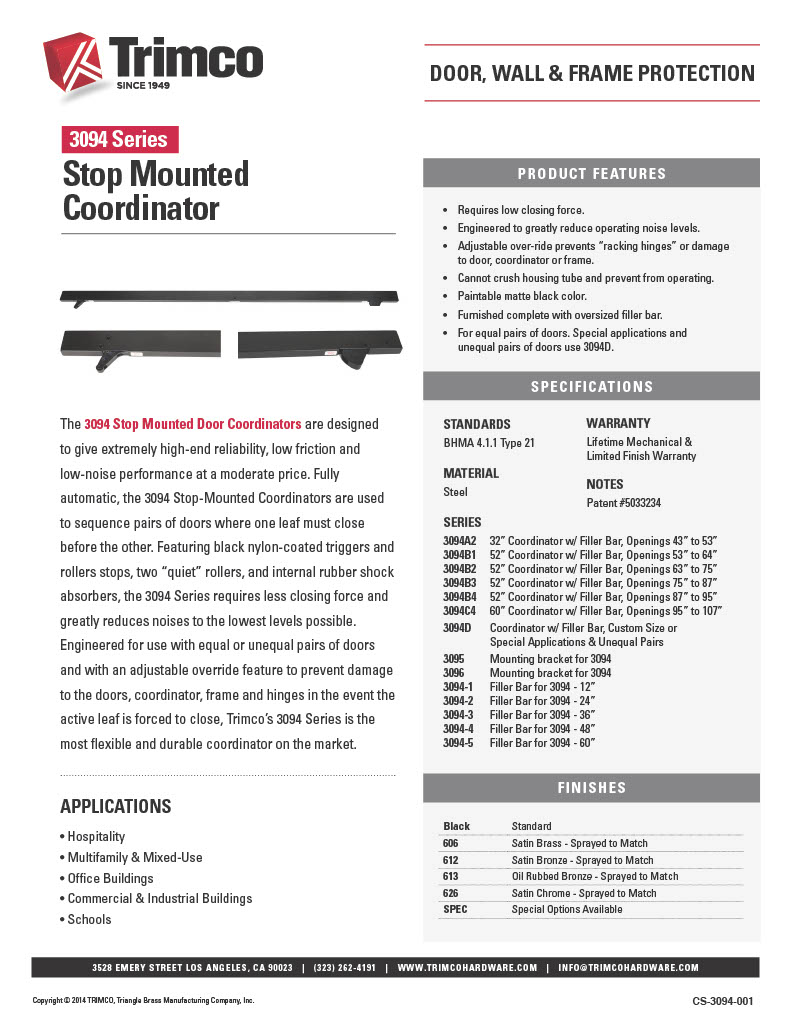

Trimco 3094 Retracting Door Coordinator - Stop Mount

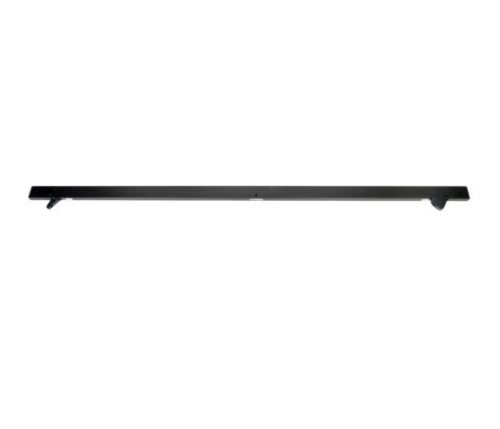

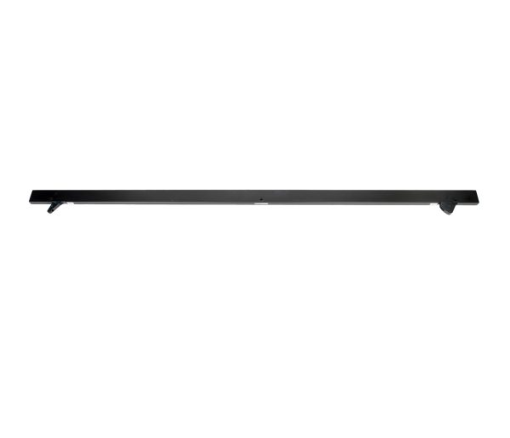

Stop Mounted Coordinator with Filler Bar

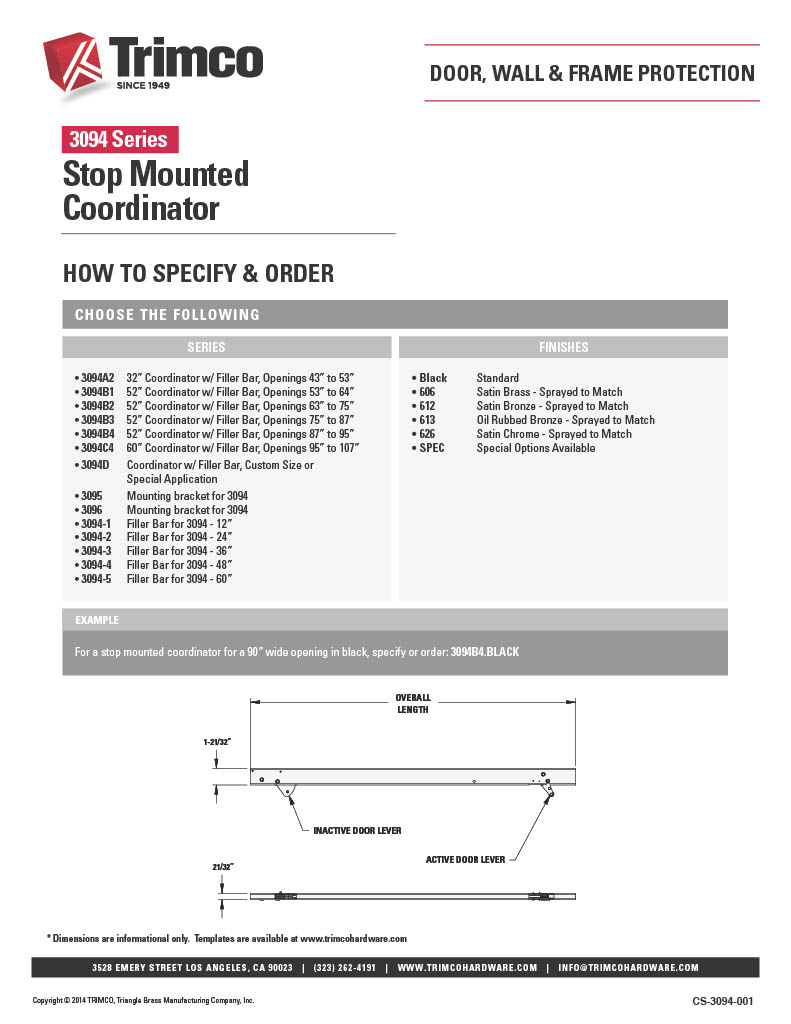

Overall Size: 1-5/8" x 5/8" x 18"

UL Listed

Made in the U.S.A.Patent #5033234The 3094 Stop Mounted Door Coordinators are designed to give extreme high-end reliability, low friction and low-noise performance at a moderate price. Fully automatic, the 3094 stop-mounted Coordinators are used to sequence pairs of doors where one leaf must close before the other. When the inactive leaf is open, a roller stop holds the active leaf open. As soon as the inactive leaf is closed it depresses the "trigger" releasing the roller stop and the active leaf is free to close.

The trigger and roller stop are black nylon-coated, and the roller stop includes two, quiet rollers. As a result the 3094 Coordinators require less closing force from the door closers. Nylon rollers and internal rubber shock absorbers reduce objectionable noise to the lowest level possible.

All TRIMCO Series 3094 Coordinators incorporate a carefully engineered, adjustable override feature. The override helps prevent damage to the doors, coordinator, frame and hinges in the event the active leaf is forced to close before the inactive leaf. A roller in the override ensures sensitive adjustment and highly repeatable setting of this feature.

The Series 3094 Coordinators are designed for use in conjunction with rugged Trimco Series 3800 low-friction Automatic and Semi-Automatic Flushbolts. They are also compatible with panic hardware and may be prepped for most vertical rod panic devices. Flat Black finish is standard.

BHMA = 4.1.1 Type 21
