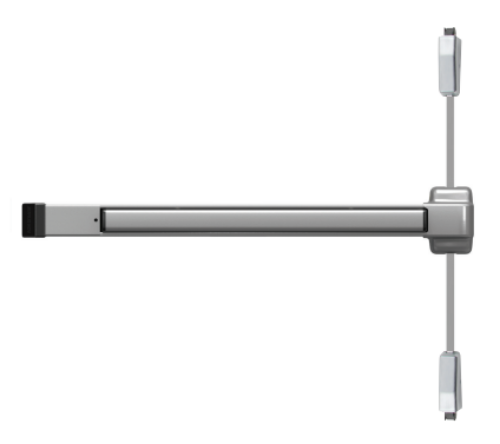

Von Duprin 2227EO Surface Vertical Rod Exit Device - Exit only

Product Details

Von Duprin 2227EO Vertical Rod Exit Device - Exit only

Device Handing:Non-Handed.

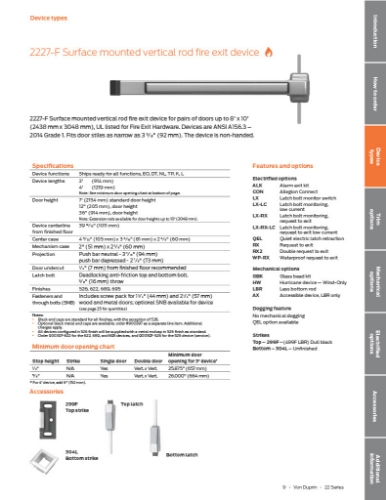

Device Lengths:3' (914mm), 4' (1219mm). see page 13 (22 Series Catalog).

Door Height:7' (2134mm) standard door height. Extension rods available for door heights up to 10'.

Finishes:SP28 - Sprayed Aluminum (689), SP313 - Sprayed Dark Bronze (695)

Von Duprin 2227EO Surface Vertical Rod Exit Device - Exit only

.

Strikes:Top 299 Dull Black, Bottom 248L-4 and 304L Unfinished.

Dogging Feature:Hex key dogging standard.

Fasteners:Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Optional SNB available for device.

Latch Bolt:Deadlocking Anti-friction Top and Bottom Bolt, 5/8" (16mm) throw.

Device Centerline from Finished Floor:39 13/16" (1011mm) at center of device.

Door Undercut:1/4" (7mm) from finished floor recommended, 3/4" (19mm) maximum or 1/8" (3mm) from threshold.

Fits door stiles as narrow as 3-5/8" (92mm).

Covers stock hollow metal doors with 86 or 161 cutouts.

All 22 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

Model:Von Duprin 2227EO, SP28, SP313, 2227EOSP28 , 2227EOSP313

Von Duprin 2227EO Surface Vertical Rod Exit Device - Exit only

SKU: 2227EO

In Stock

Finish *

Size *

Rod *

Fire Rated Option *

$598.33

About this item

Surface mounted vertical rod exit device for all types of single and double doors, UL listed for Panic Exit Hardware, ClickHereFor the 22 Series Exit device Trims.

Resources

Von Duprin 2227EO Vertical Rod Exit Device - Exit only

Device Handing:Non-Handed.

Device Lengths:3' (914mm), 4' (1219mm). see page 13 (22 Series Catalog).

Door Height:7' (2134mm) standard door height. Extension rods available for door heights up to 10'.

Finishes:SP28 - Sprayed Aluminum (689), SP313 - Sprayed Dark Bronze (695)

Von Duprin 2227EO Surface Vertical Rod Exit Device - Exit only

.

Strikes:Top 299 Dull Black, Bottom 248L-4 and 304L Unfinished.

Dogging Feature:Hex key dogging standard.

Fasteners:Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Optional SNB available for device.

Latch Bolt:Deadlocking Anti-friction Top and Bottom Bolt, 5/8" (16mm) throw.

Device Centerline from Finished Floor:39 13/16" (1011mm) at center of device.

Door Undercut:1/4" (7mm) from finished floor recommended, 3/4" (19mm) maximum or 1/8" (3mm) from threshold.

Fits door stiles as narrow as 3-5/8" (92mm).

Covers stock hollow metal doors with 86 or 161 cutouts.

All 22 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

Model:Von Duprin 2227EO, SP28, SP313, 2227EOSP28 , 2227EOSP313

2227.689
Von Duprin 2227EO Surface Vertical Rod Exit Device - Exit only

Product code: 2227EO

In Stock

$1,157.00

$598.33

2227.689
Von Duprin 2227EO Surface Vertical Rod Exit Device - Exit only

Product code: 2227EO

In Stock

$1,157.00

$598.33
