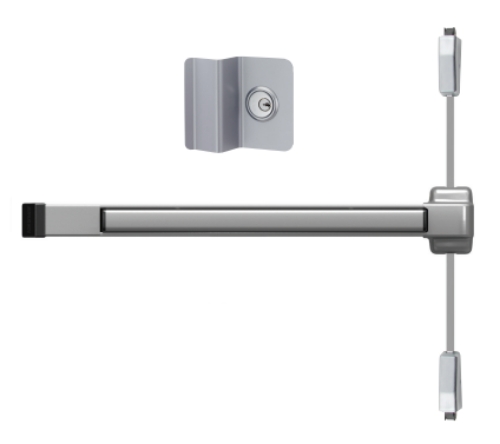

Von Duprin 2227NL-F Fire Rated Vertical Rod Device W/210NL Night Latch

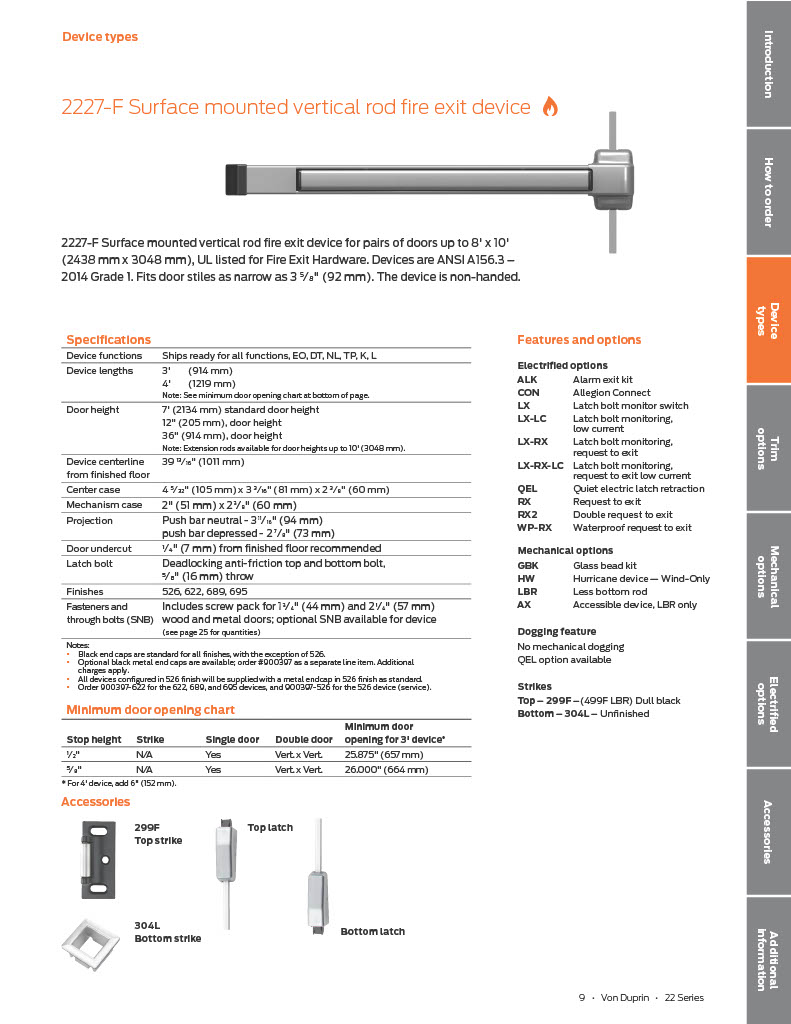

Von Duprin 2227NL-F Fire Rated Vertical Rod Exit Device with 210NL Night Latch Trim

Key Retracts Latchbolt - ANSI Function: 03 (Cylinder must be ordered separately).

Device Handing:Non-Handed.

Device Lengths:3' (914mm), 4" (1219mm). see page 13 (22 Series Catalog).

Door Height:7' (2134mm) standard door height. Extension rods available for door heights up to 10'.

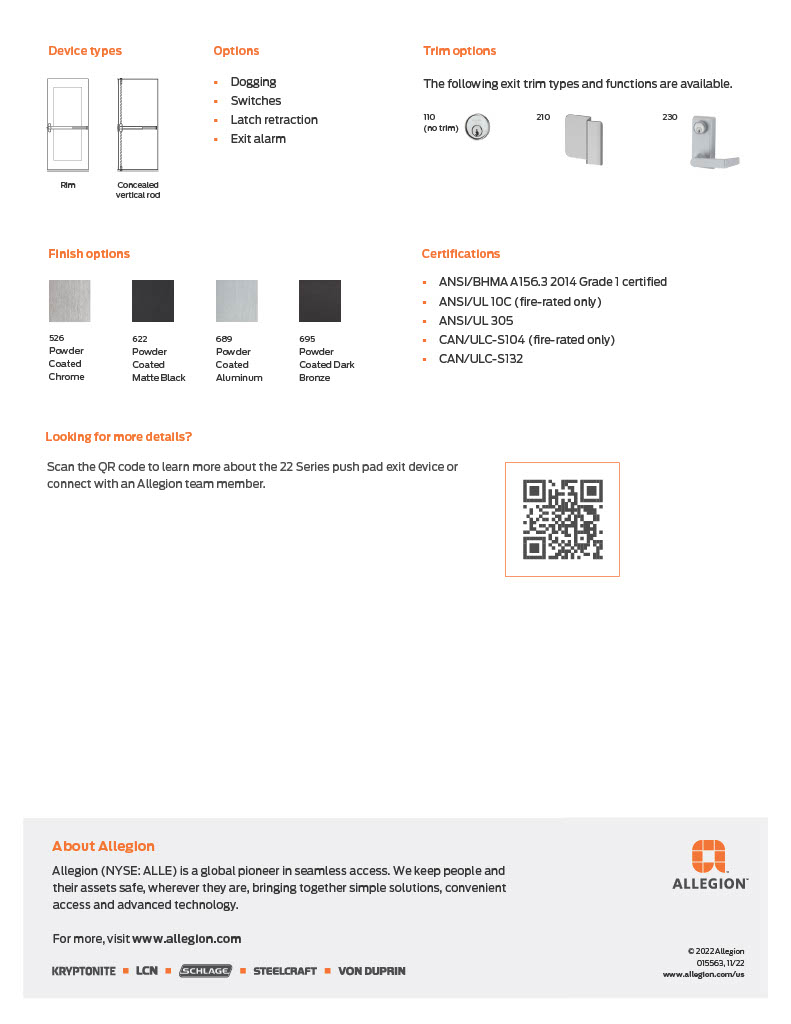

Finishes:SP28 - Sprayed Aluminum (689), SP313 - Sprayed Dark Bronze (695)

.

Strikes:Top 299 Dull Black, Bottom 304LUnfinished.

Dogging:No Mechanical Dogging

Fasteners:Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Optional SNB available for device.

Latch Bolt:Deadlocking Anti-friction Top and Bottom Bolt, 5/8" (16mm) throw

Device Centerline from Finished Floor:39 13/16" (1011mm) at center of device

Door Undercut:1/4" (7mm) from finished floor recommended, 3/4" (19mm) maximum Fits door stiles as narrow as 3-5/8" (92mm)

Covers stock hollow metal doors with 86 or 161 cutouts.

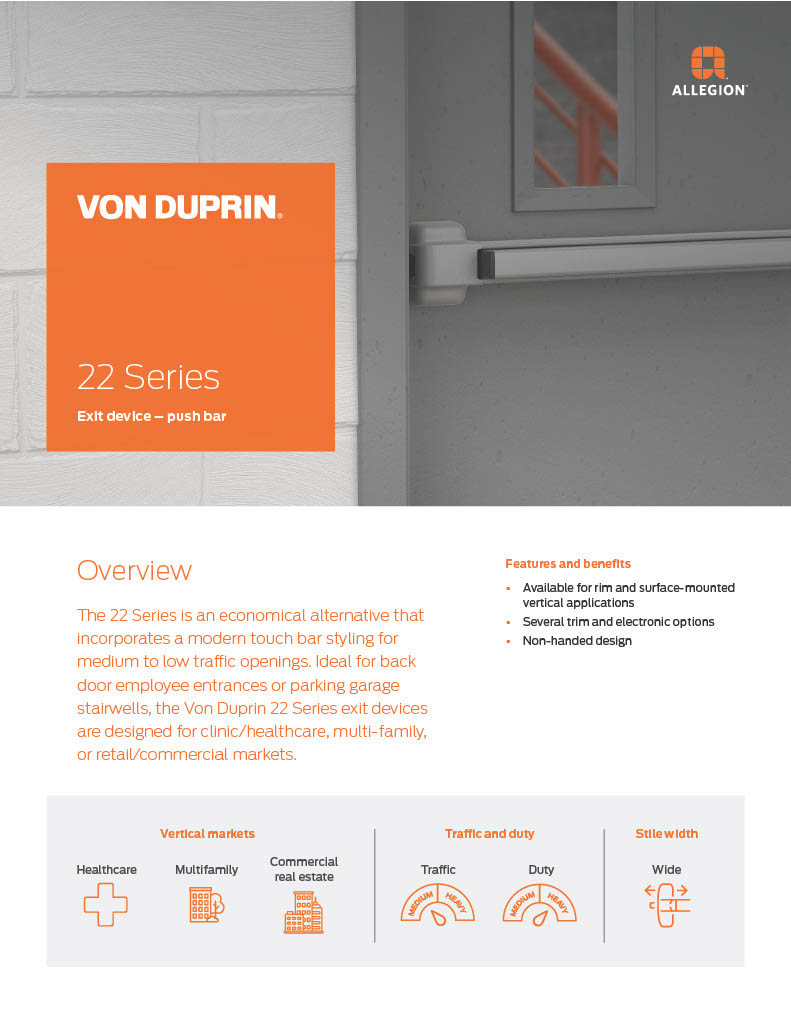

All 22 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

Model:Von Duprin 2227NL-F, 2227NLF, SP28, SP313, 2227NLFSP28 , 2227NLFSP313
