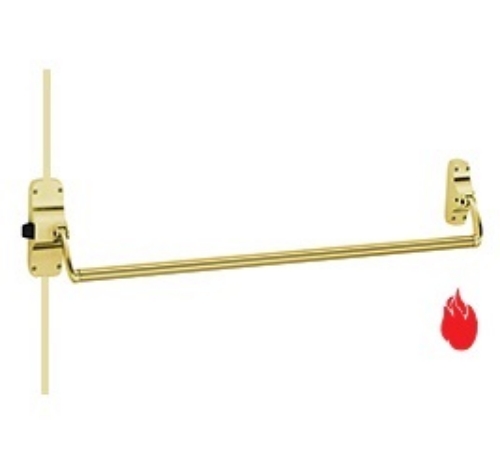

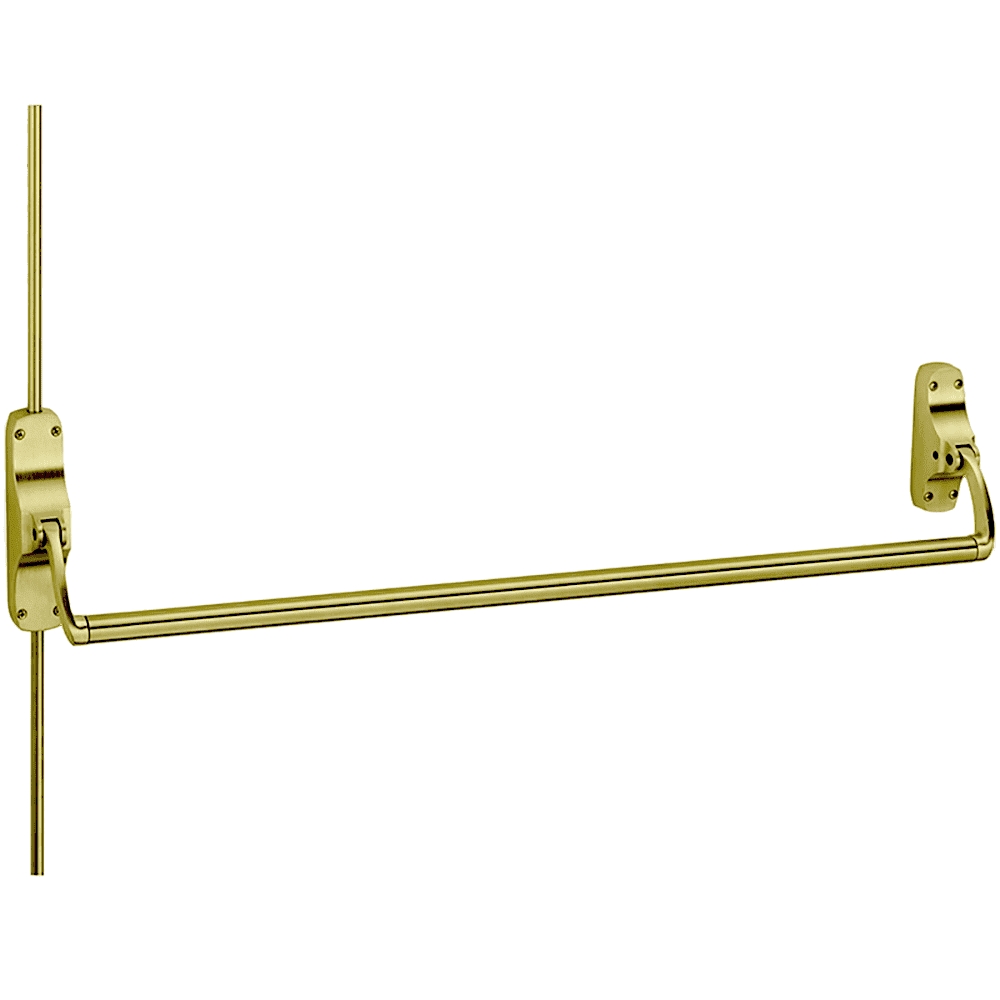

Von Duprin 8827EO-F Surface Mount Vertical Rod Crossbar Exit-Fire rate, For 4' Doors

Von Duprin 8827EO-F Surface Mount Vertical Rod Crossbar Fire Rated Exit Device, For 4' Doors -  Exit Only

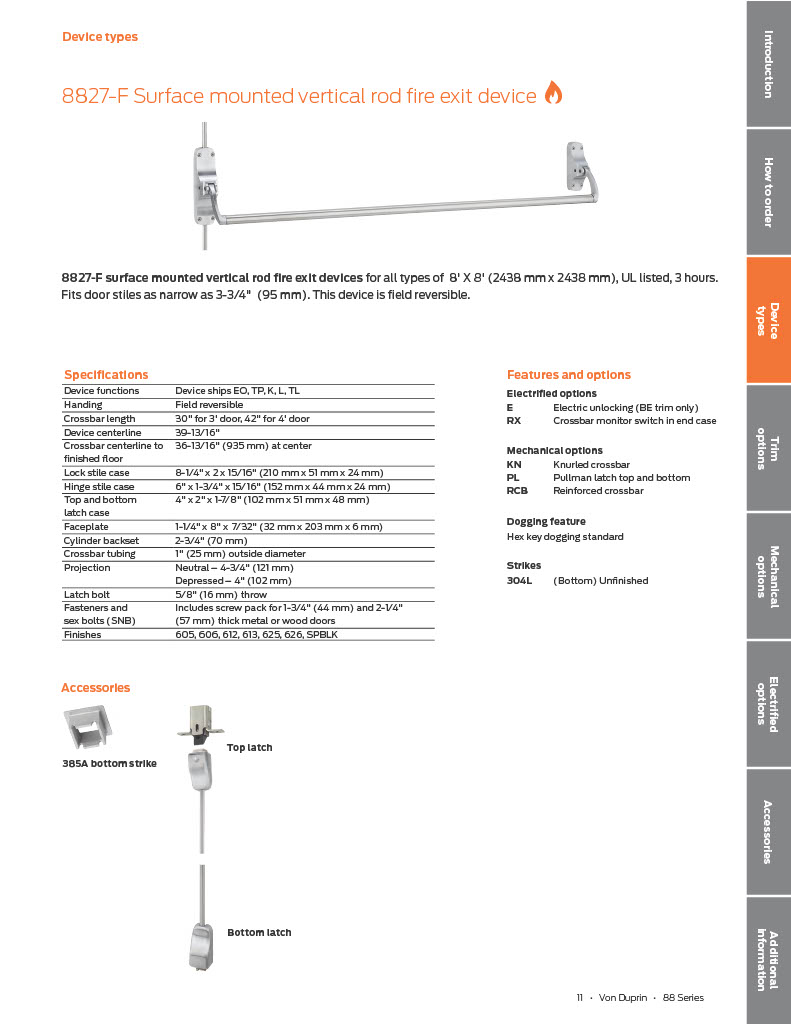

8827-F fire exit surface mounted vertical rod devices for all types of 8' x 8' (2438mm x 2438mm) double doors, UL listed, 3 hours. Fits door stiles as narrow as 3 3/4" (95mm).

Crossbar length:42" (1067mm) field sizeable.

Field reversible for RHR or LHR doors

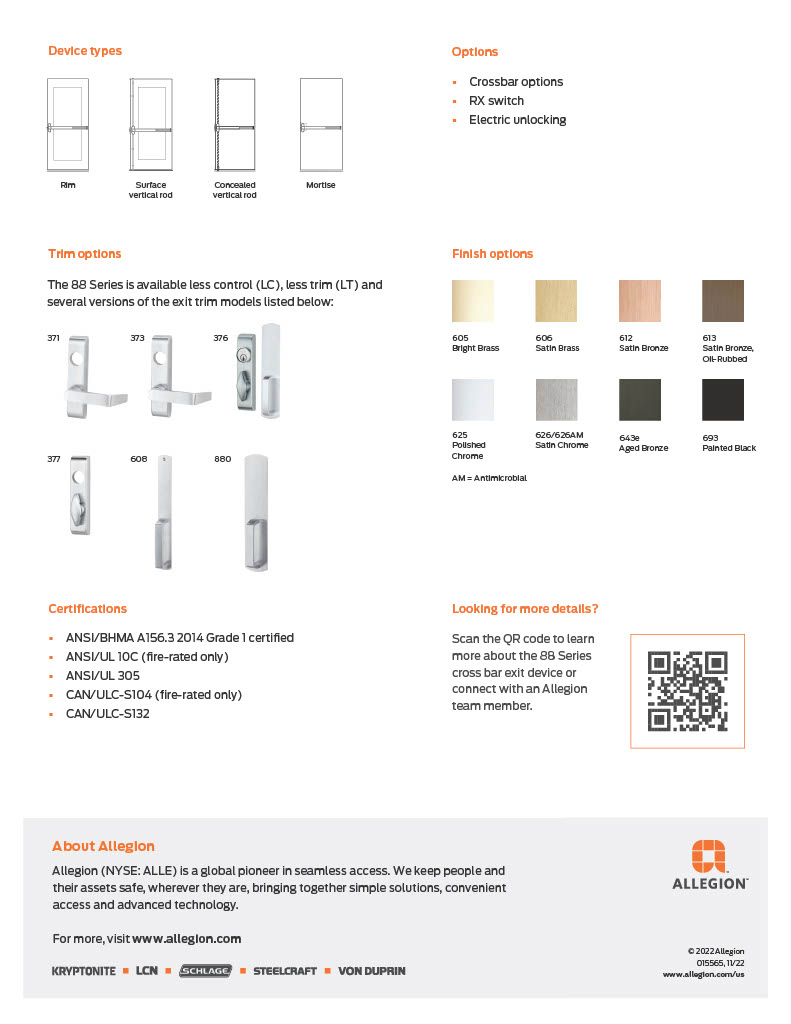

Finishes: US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome.

Fasteners are included for 1-3/4" (44mm) thick doors.

Latch Bolt:5/8" (16mm) throw latch bolt.

Strikes and Fasteners:Device is furnished standard with 304L strike. All necessary mounting fasteners are included.

Dimensions

Crossbar height to finished floor:36-13/16" (1011mm) at center.

Crossbar projection:neutral 4 7/8" (121mm), depressed 4" (102mm).

Crossbar length: 42" (1067mm) field sizeable.

Lock stile case: 8 1/4" x 2" x 15/16" (210mm x 51mm x 24mm).

Hinge stile case: 6" x 1 3/4" x 15/16" (152mm x 44mm x 24mm).

Crossbar tubing: 1" (25mm)

Top and Bottom latch case:4" x 2" x 1 7/8" (102mm x 51mm x 48mm)

Vertical Rod:1/2" (13mm) tubing

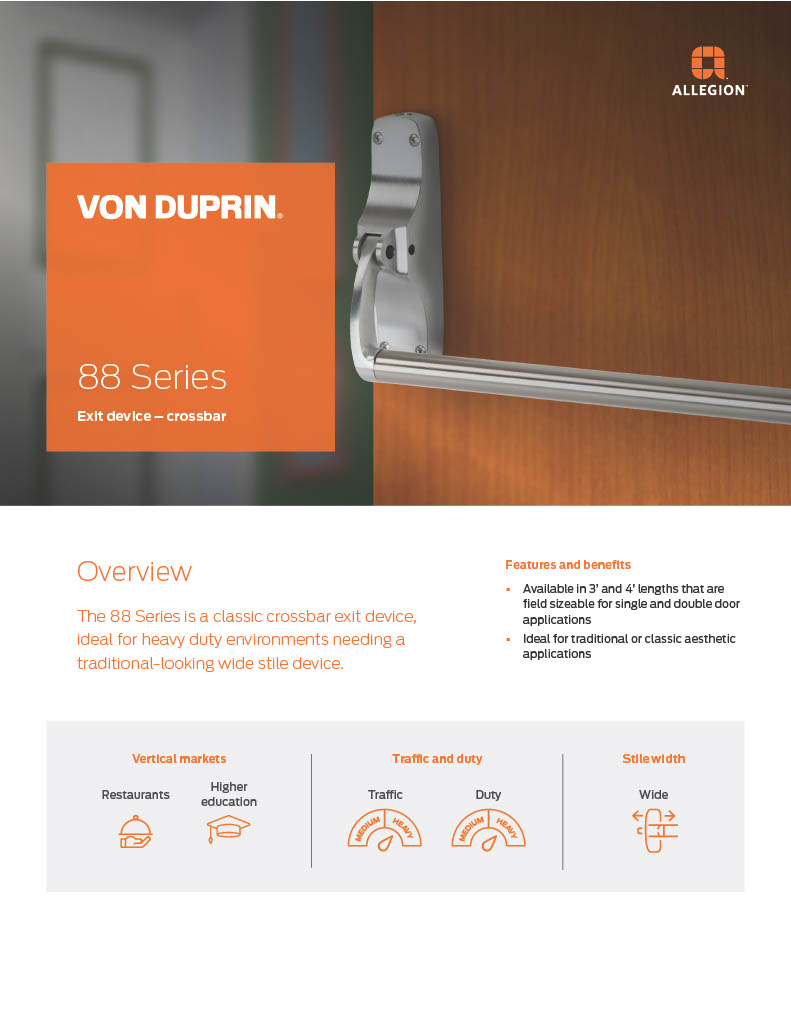

All 88 series exit devices are UL listed from Accident Hazard and Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 1994, Grade 1.

Model: Von Duprin 8827F, 8827EOF, US3, US4, US10, US10B, US26, US26D
