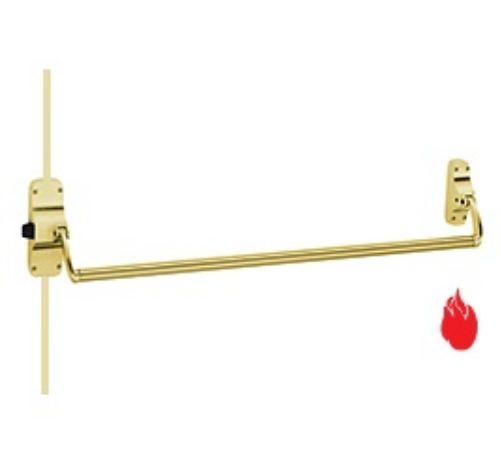

Von Duprin 8847EO-F Concealed Vertical Rod Crossbar Exit, For 4' Doors - Fire rated

Von Duprin 8847EO-F Concealed Vertical Rod Crossbar Fire Rated Exit Device - Exit Only

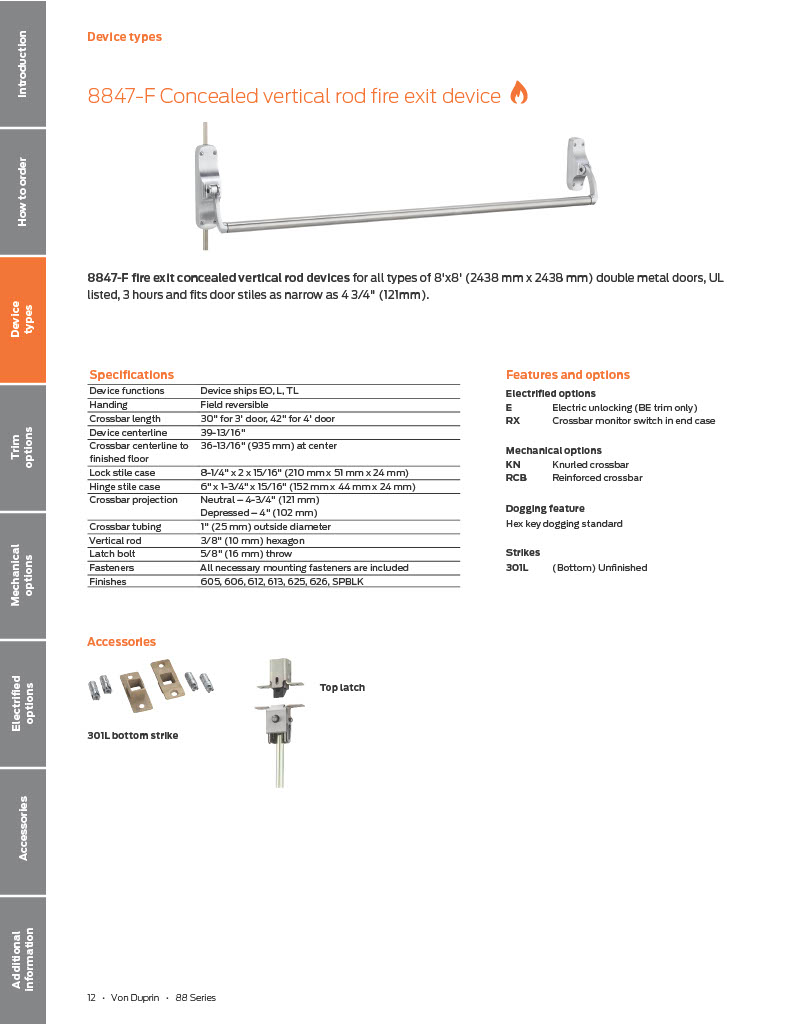

8847-F fire exit concealed vertical rod devices for use on 8' x 8' (2438mm x 2438mm) double metal doors. UL listed, 3 hours and fits door stiles as narrow as 4 3/4" (121mm).

Crossbar length:42" (1067mm) field sizeable.

Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome.

Latch Bolt:5/8" (16mm) throw latch bolt.

Strikes and Fasteners:

Device is furnished standard with 301L strike. All necessary mounting fasteners are included.

Dimensions

Crossbar height to finished floor:36-13/16" (1011mm) at center.

Crossbar projection:neutral 4 7/8" (121mm), depressed 4" (102mm).

Crossbar length: 42" (1067mm) field sizeable.

Lock stile case: 8 1/4" x 2" x 15/16" (210mm x 51mm x 24mm).

Hinge stile case: 6" x 1 3/4" x 15/16" (152mm x 44mm x 24mm).

Crossbar tubing: 1" (25mm).

Top and Bottom latch case:4" x 2" x 1 7/8" (102mm x 51mm x 48mm).

Vertical Rod:3/8" (10mm) hexagon.

All 88 series exit devices are UL listed from Accident Hazard and Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 1994, Grade 1.

Model: Von Duprin 8847F, 8847EOF, US3, US4, US10, US10B, US26, US26D
