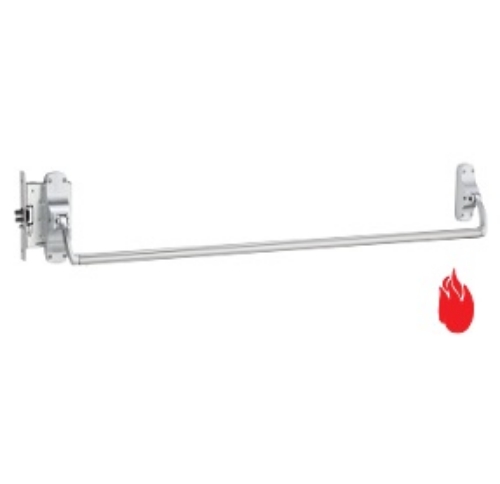

Von Duprin 8875EO-F Mortise Lock Crossbar Exit Device, For 4' Doors - Fire Rated

Von Duprin 8875EO-F Mortise Lock Crossbar Fire Rated Exit Device, For 4' Doors  - Exit Only

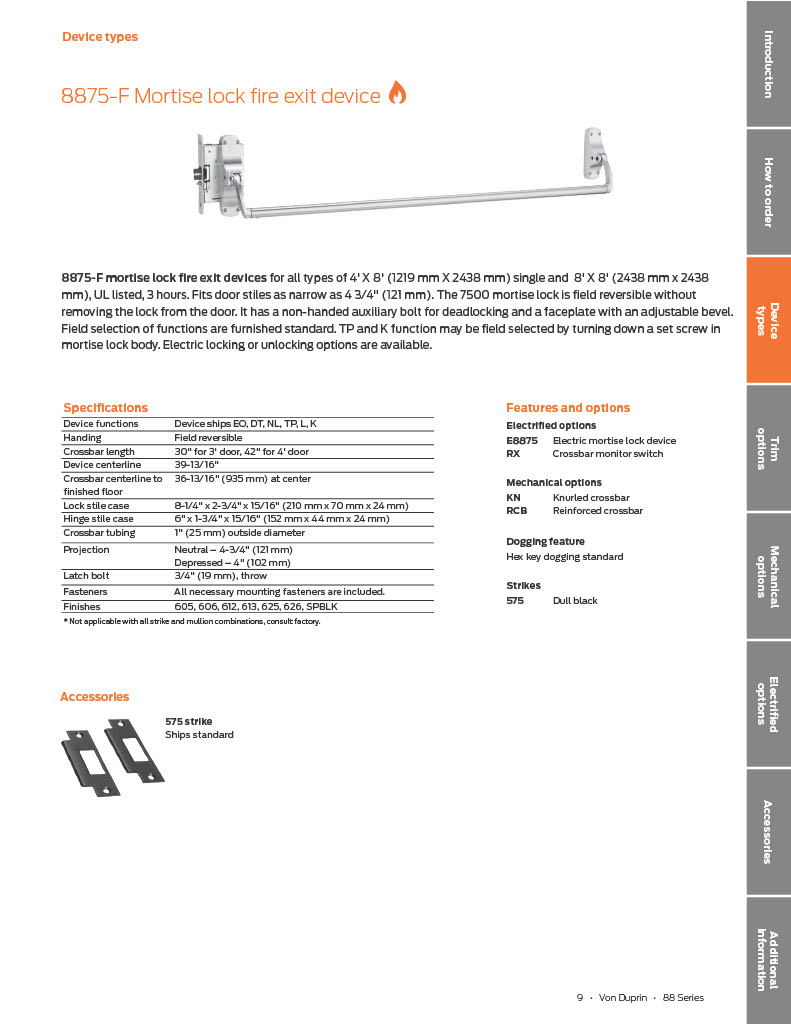

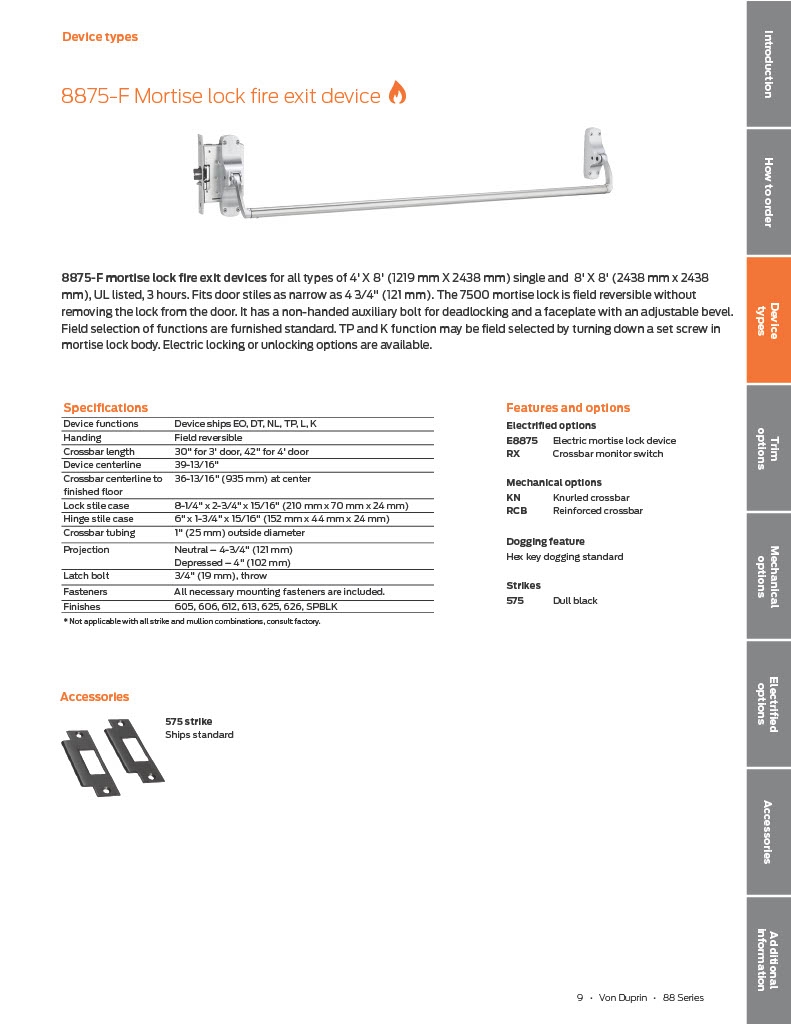

8875-F Fire Exit Mortise Lock Devices for All Types of 4' x 10' (1219mm x 3048mm) Single or 8' x 8' (2438mm x 2488mm) Double Doors, UL Listed, 3 Hours.

Fits stock hollow metal doors with 86 cutouts and door stiles as narrow as 4-3/4" (121mm).

Crossbar length:42" (1067mm) field sizeable.

Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome.

Strike:Device is furnished with standard 575 strike in dull black.

All necessary mounting fasteners are included.

Latch Bolt:3/4" (19mm) throw latch bolt.

Dimensions:

Crossbar height to finished floor:- 36 13/16" (935mm) at center

Latch bolt height to finished floor:- 40 3/32" (1018mm) at center

Crossbar projection:neutral - 4 7/8" (124mm), depressed - 4" (102mm)

Lock stile case:8-1/4" x 2" x 15/16" (210mm x 51mm x 24mm)

Hinge stile case:6" x 1 3/4" x 15/16" (152mm x 44mm x 24mm)

Crossbar tubing:1" (25mm)

Lock case:4 5/8" x 5 3/4" x 1 3/16" (117mm x 146mm x 46mm)

Face plate:1-1/4" x 8" x 7/32" (32mm x 203mm x 6mm)

Cylinder backset:2-3/4" (70mm)

All 88 series exit devices are UL listed from Accident Hazard and Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 1994, Grade 1.

Model:Von Duprin 8875F, 8875EOF, US3, US4, US10, US10B, US26, US26D
