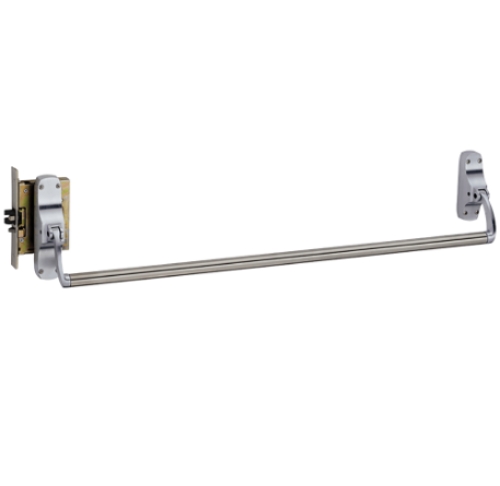

Von Duprin 8875EO Mortise Lock Crossbar Exit Device, For 4' Doors

Von Duprin 8875EO Mortise Lock Crossbar Exit Device - Exit Only

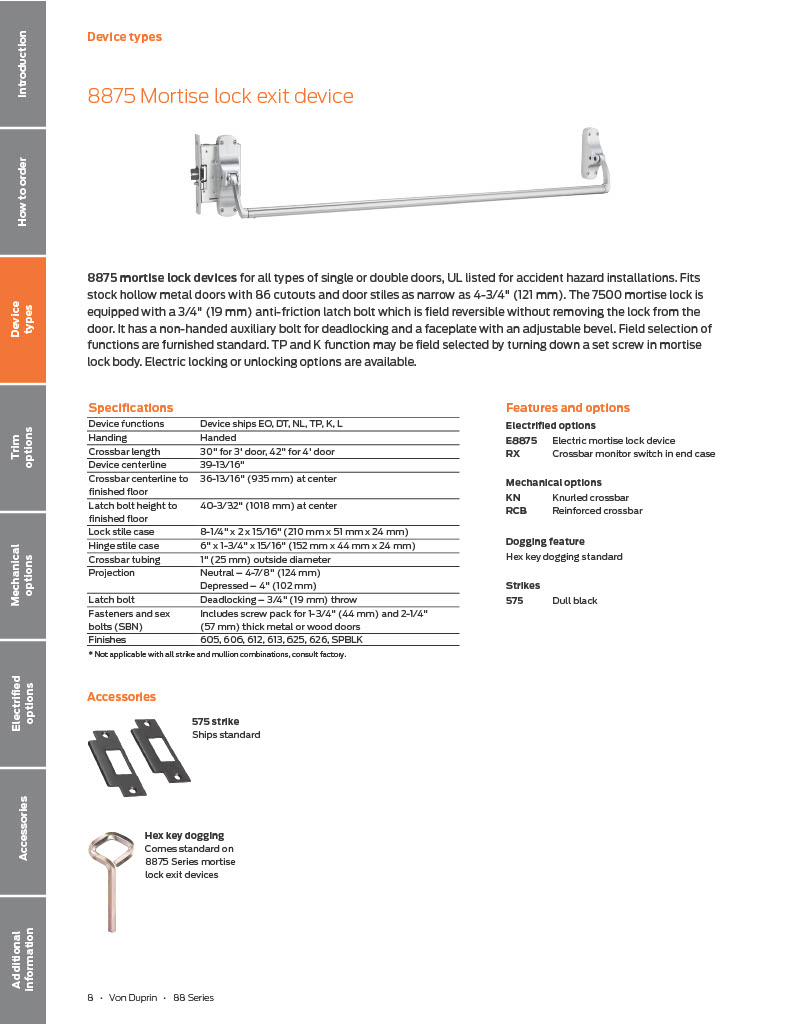

8875 mortise lock devices for all types of single or double doors, UL listed for accident hazard installations.

Fits stock hollow metal doors with 86 cutouts and door stiles as narrow as 4-3/4" (121mm).

Electric locking or unlocking options are available.

Crossbar length 42" (1067mm) field sizeable.

Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome.

Strike: Device is furnished with standard 575 strike in dull black.

Dogging Feature: Hex key dogging standard.

All necessary mounting fasteners are included.

Latch Bolt:3/4" (19mm) throw latch bolt.

Dimensions:

Crossbar height to finished floor:- 36 13/16" (935mm) at center.

Latch bolt height to finished floor:- 40 3/32" (1018mm) at center.

Crossbar projection:neutral - 4 7/8" (124mm), depressed - 4" (102mm).

Lock stile case:8-1/4" x 2" x 15/16" (210mm x 51mm x 24mm).

Hinge stile case:6" x 1 3/4" x 15/16" (152mm x 44mm x 24mm).

Crossbar tubing:1" (25mm).

Lock case :4 5/8" x 5 3/4" x 1 3/16" (117mm x 146mm x 46mm).

Face plate:1-1/4" x 8" x 7/32" (32mm x 203mm x 6mm).

Cylinder backset:2-3/4" (70mm).

All 88 series exit devices are UL listed from Accident Hazard and Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 1994, Grade 1.

Model:Von Duprin 8875, 8875EO, US3, US4, US10, US10B, US26, US26D
