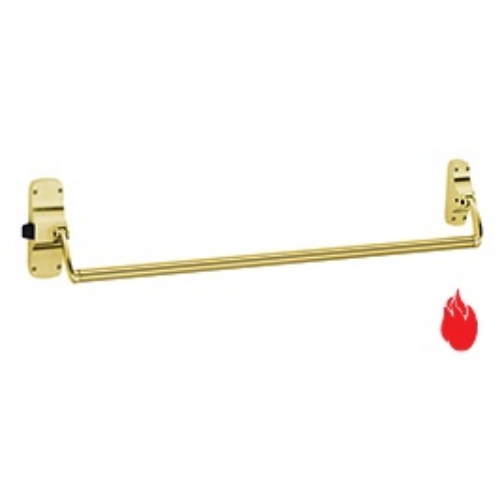

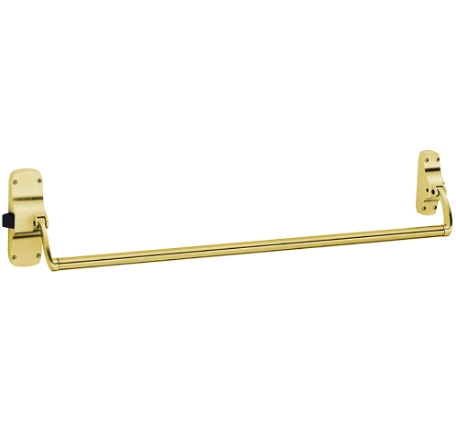

Von Duprin 88EO-F Rim Crossbar Exit Device, For 4' Doors - Fire Rated

Von Duprin 88EO-F Rim Panic Crossbar - Fire Rated Exit Device - Exit Only

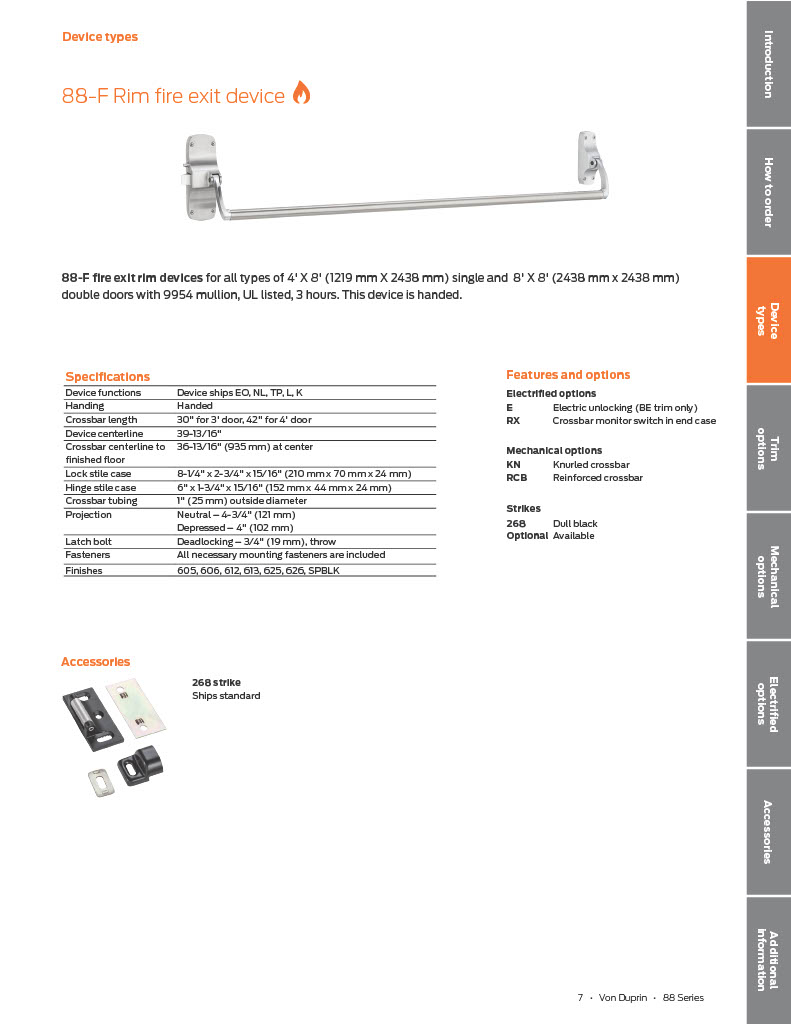

88-F fire exit rim devices for all types of 4' x 8' (1219mm x 2438mm) single and 8' x 8' (2438mm x 2438mm) double doors with 9954 mullion, UL listed, 3 hours.

Crossbar length 42" (1067mm) field sizeable

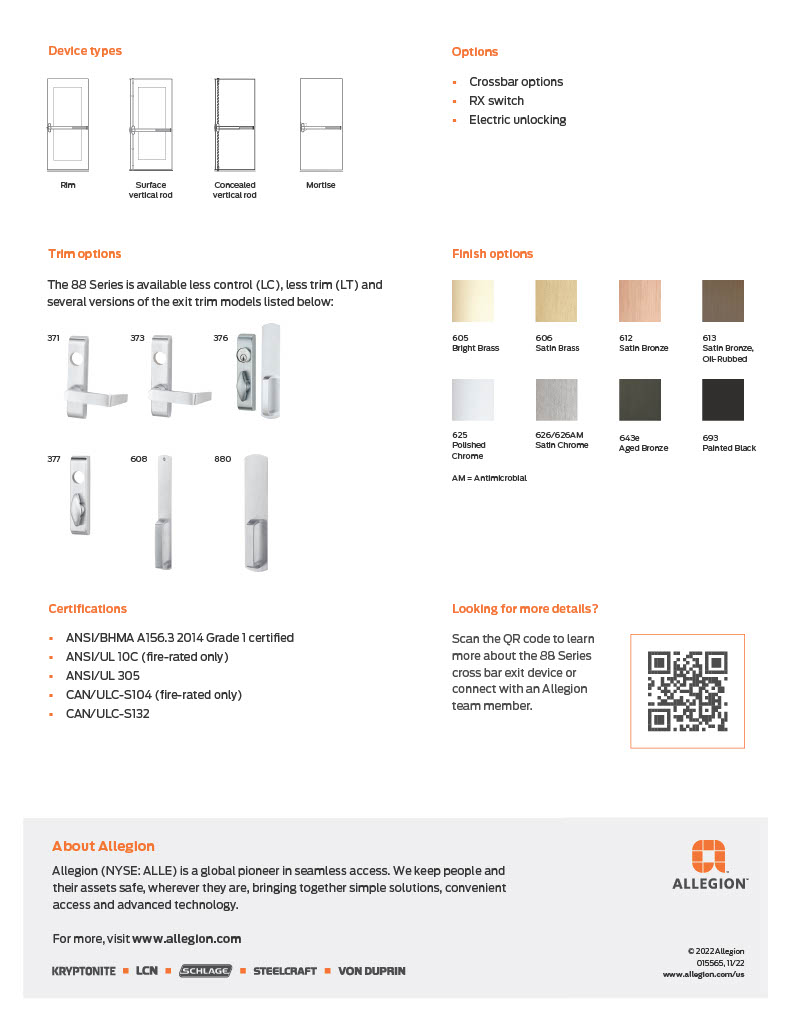

Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome

Strike: Device is furnished standard with 268 strike in dull black finish

Fasteners are included for 1-3/4" (44mm) thick doors

Latch Bolt: 3/4" (19mm) throw latch bolt

Dimensions

Crossbar height to finished floor 36-13/16" (1011mm) at center

Crossbar projection - neutral 4 7/8" (121mm), depressed 4" (102mm)

Crossbar length 42" (1067mm) field sizeable

Lock stile case 8 1/4" x 2 3/4" x 15/16" (210mm x 70mm x 24mm)

Hinge stile case 6" x 1 3/4" x 15/16" (152mm x 44mm x 24mm)

Crossbar tubing 1" (25mm)

All 88 series exit devices are UL listed from Accident Hazard and Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 1994, Grade 1.

Model: Von Duprin 88F, 88EOF, US3, US4, US10, US10B, US26, US26D
