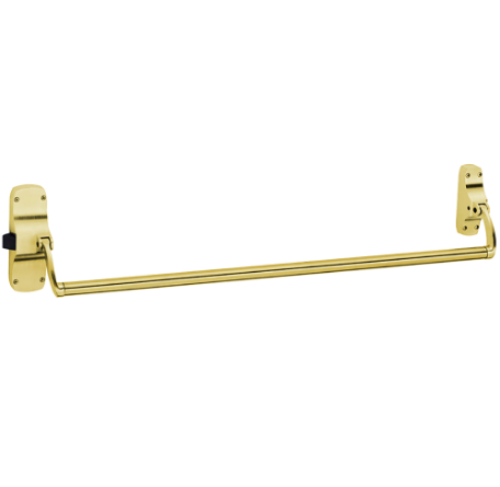

Von Duprin 88EO Rim Crossbar Exit Device, For 4' Doors

Von Duprin 88EO Rim Panic Crossbar Exit Device - Exit Only

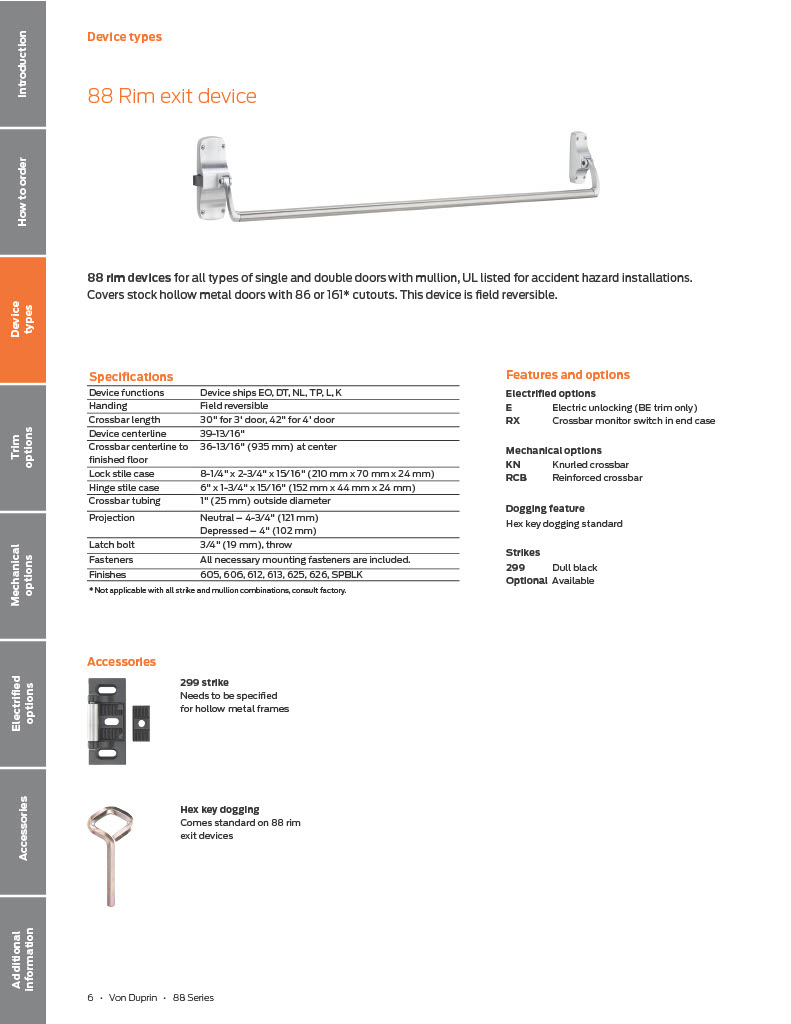

88 rim devices for all types of single and double doors with mullion, UL listed for accident hazard installations. Covers stock hollow metal doors with 86 or 161* cutouts.

Crossbar length:42" (1067mm) field sizeable.

Field reversible for RH or LH doors.

Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome.

Strike:Device is furnished with standard 299 strike in dull black finish.

Dogging Feature:Hex key dogging standard.

Fasteners are included for 1-3/4" (44mm) thick doors.

Latch Bolt:3/4" (19mm) throw latch bolt.

Dimensions

Crossbar height to finished floor:36-13/16" (1011mm) at center.

Crossbar projection:neutral 4 3/4" (121mm), depressed 4" (102mm).

Crossbar length: 42" (1067mm) field sizeable.

Lock stile case: 8 1/4" x 2 3/4" x 15/16" (210mm x 70mm x 24mm).

Hinge stile case: 6" x 1 3/4" x 15/16" (152mm x 44mm x 24mm).

Crossbar tubing: 1" (25mm).

All 88 series exit devices are UL listed from Accident Hazard and Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 1994, Grade 1.

Model:Von Duprin 88, 88EO, US3, US4, US10, US10B, US26, US26D
