Von Duprin 9847DT / 9947DT Concealed Mounted Vertical Rod Device, Dummy Function, Escutcheon Pull
Product Details
Von Duprin 9847DT / 9947DT Grade 1 Concealed*Vertical Rod Exit Bar, Wide Stile Pushpad, Dummy Function, Escutcheon Pull, Hex Key Dogging, Field Reversible*

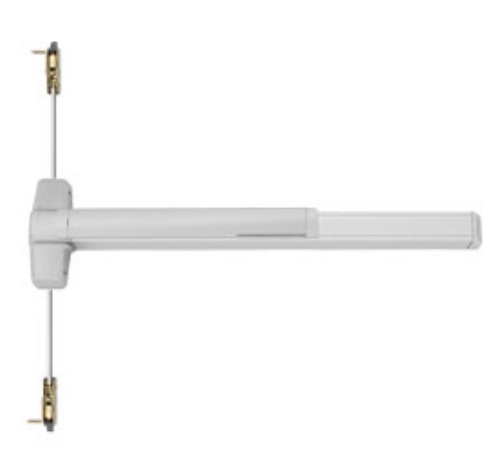

98247/9947 Concealed vertical rod device for all types of single or double doors, UL listed for Panic Exit Hardware.
Devices are ANSI A156.3 2001 Grade 1.

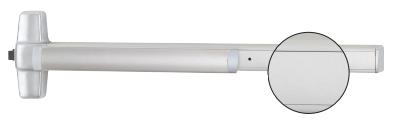

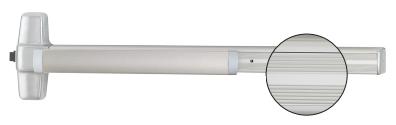

The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.
Device Handing:Non-Handed.
Device Lengths: 3' (914mm), 4' (1219mm).
Door Height:7' (2134mm) standard door height. Extension rods available for door heights up to 10'.
Covers stock hollow metal doors with 86 or 161 cutouts on single doors.
Dogging Feature:Hex key dogging standard.
Latch Bolt:Deadlocking Anti-friction Top & Bottom Bolt, 5/8" (16mm) throw.
Strike:Top - 299 Dull Black, Bottom 248L4 & 304L - Unfinished.
Fasteners:Includes screw pack for 1-3/4" (44mm) to 2-1/4" (57mm) thick metal or
wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Finishes:US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black,US32D - Satin Stainless Steel-available with 98 Series only
Dimensions:
Device lengths:
3' 2'4" to 3' (711mm to 914 mm) Door Size.
4' 2'10" to 4' (864 mm to 1219 mm) Door Size.
Device Centerline from Finished Floor:39-5/8" (1006 mm).
Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).
Mechanism Case Dimensions:2-1/4" x 2-1/4" (57mm x 57mm).
Top & Bottom Latch Case:4-1/2" x 2-1/2" x 1-1/2" (114mm x 54mm x 38mm).
Projection:
Pushbar Neutral 3-13/16" (97 mm).
Pushbar Depressed 3-1/16" (78 mm).
All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.
Model:Von Duprin 9847, 9947, 9847DT, 9947DT, RX9847DT, RX9947DT, US3, US4, US10, US10B, US26, US26D, US28, US32D
