Von Duprin 9875DT / 9975DT Mortise Panic Exit Device, Dummy Function, Escutcheon Pull

Product Details

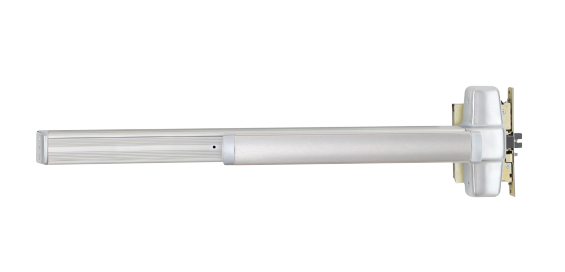

Von Duprin 9875DT / 9975DT Mortise Panic Exit Device, Dummy Function, Escutcheon Pull

9875/9975 mortise lock device for all types ofsingle or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 2001 Grade 1.

The 9875 device has a smooth mechanism case and the 9975 device has a grooved case.

Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm).

Dogging Feature: Hex key dogging standard

The 7500 Mortise lock is equipped with a 3/4" (19mm)anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.

Fasteners:Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available

Finishes:US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black, US32D - Satin Stainless Steel available with 98 Series only

Dimensions

Device lengths:3' 2'4' to 3' (711mm to 914 mm) Door Size                       4' 2'10" to 4' (864 mm to 1219 mm) Door Size

Device Centerline from Finished Floor:39-13/16" (1011 mm)                                                       39-11/16" (1008 mm) with Mullion

Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)

Projection:Pushbar Neutral 3-13/16" (97 mm)                 Pushbar Depressed 3-1/16" (78 mm)

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin 9875DT, 9975DT, US3, US4, US10, US10B, US26, US26D, US28, US32D

Von Duprin 9875DT / 9975DT Mortise Panic Exit Device, Dummy Function, Escutcheon Pull

SKU: 98/9975DT

In Stock

Model *

98 Series - Smooth mechanism case
98 Series - Smooth mechanism case
99 Series - Grooved mechanism case
99 Series - Grooved mechanism case

Size *

Finish *

Anodized, Aluminum - US28 (628)
Anodized, Aluminum - US28 (628)
Chromium, Dull - US26D (626) [+$115.50]
Chromium, Dull - US26D (626) [+$115.50]
Duranodic Dark Bronze - 313 (710) [+$74.58]
Duranodic Dark Bronze - 313 (710) [+$74.58]
Bronze, Dull - US10 (612) [+$159.06]
Bronze, Dull - US10 (612) [+$159.06]
Satin Stainless Steel - US32D (630) For 98 only [+$149.16]
Satin Stainless Steel - US32D (630) For 98 only [+$149.16]
Brass, Dull - US4 (606) [+$147.84]
Brass, Dull - US4 (606) [+$147.84]
Chromium, Polished - US26 (625) [+$352.44]
Chromium, Polished - US26 (625) [+$352.44]
Brass, Polished - US3 (605) [+$352.44]
Brass, Polished - US3 (605) [+$352.44]
Satin Nickel - US15 (619) For 98 only [+$352.44]
Satin Nickel - US15 (619) For 98 only [+$352.44]
Black - 315 (711) [+$663.96]
Black - 315 (711) [+$663.96]

$2,034.12

$3,082.00

You saved $1,047.88

About this item

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Von Duprin 9875DT / 9975DT Mortise Panic Exit Device, Dummy Function, Escutcheon Pull

9875/9975 mortise lock device for all types ofsingle or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 2001 Grade 1.

The 9875 device has a smooth mechanism case and the 9975 device has a grooved case.

Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm).

Dogging Feature: Hex key dogging standard

The 7500 Mortise lock is equipped with a 3/4" (19mm)anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.

Fasteners:Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available

Finishes:US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black, US32D - Satin Stainless Steel available with 98 Series only

Dimensions

Device lengths:3' 2'4' to 3' (711mm to 914 mm) Door Size                       4' 2'10" to 4' (864 mm to 1219 mm) Door Size

Device Centerline from Finished Floor:39-13/16" (1011 mm)                                                       39-11/16" (1008 mm) with Mullion

Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)

Projection:Pushbar Neutral 3-13/16" (97 mm)                 Pushbar Depressed 3-1/16" (78 mm)

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin 9875DT, 9975DT, US3, US4, US10, US10B, US26, US26D, US28, US32D
