Von Duprin CXA9847EO-F / CXA9947EO-F Chexit Surface Mounted Vertical Rod Device - Fire Rated

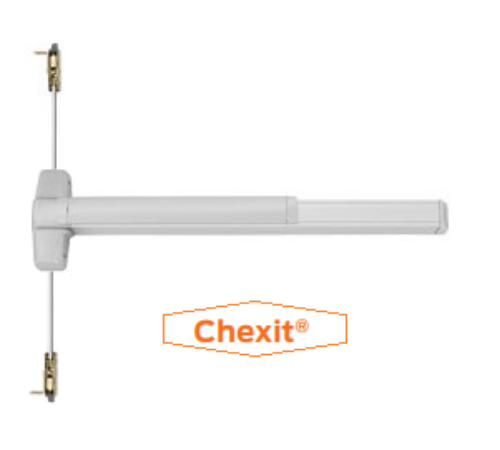

Von Duprin CXA9847EO-F / CXA9947EO-F  Chexit Concealed*Mounted Vertical Rod Device*- Exit Only - With Rod Guards - Fire Rated

Designed for use on delayed exit applications, the Chexit system is ideal for controlled areas.

All controls, auxiliary locking, local alarm, and remote signalling  are self-contained in the Chexit.

The Chexit device includes a 6" x 20" decal for application on door. PUSH UNTIL ALARM SOUNDS. DOOR CAN BE OPENED IN 15 SECONDS.

Solenoid Specifications: Continuous Duty 24VDC. Current Inrush 16 amperes. Current Holding .3 amperes.

Requires PS914  Power SupplyMore details see next tab>

CX9927 surface mounted vertical rod device for all types of single or double doors, UL listed for Panic Exit Hardware.

Devices are ANSI A156.3 2001 Grade 1.

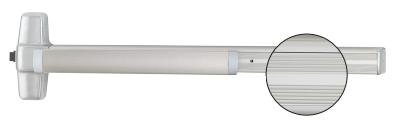

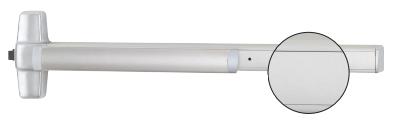

The 9927 device has a grooved mechanism case.

Device Handing:Non-Handed.

Device Lengths:3' (914mm), 4' (1219mm).

Door Height:7' (2134mm) standard door height. Extension rods available for door heights up to 10'.

Covers stock hollow metal doors with 86 or 161 cutouts on single doors.

Latch Bolt:Deadlocking Anti-friction Top & Bottom Bolt, 5/8" (16mm) throw.

Strike:Top - 299 Dull Black, Bottom 248L4 & 304L - Unfinished.

Fasteners:Includes screw pack for 1-3/4" (44mm) to 2-1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.

Finishes:US26D - Dull Chromium, 313 - Duranodic Dark Bronze.

Dimensions

Device lengths: Short 3' (914mm): 2'10" to 3' (864mm to 914mm) door size. Long 4'(1219mm): 3'4" to 4' (1016mm to 1219mm) door size.

Device Centerline from Finished Floor: - 39-13/16" (1011 mm). - 39-11/16" (1008 mm) with Mullion.

Center Case Dimensions: 8" x 2-1/4" x 2-3/4" (203mm x 57mm x 70mm).

Projection: - Pushbar Neutral 3-13/16" (97 mm). -  Pushbar Depressed 3-1/16" (78 mm).

All 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin CXA9947, CXA9947EOF, US26D, 313, US28

Request to ExitSwitch is built into the device to detect when someone attempts to exit. Applying less than 15 pounds to the push pad when the device is armed will cause this switch to start an irreversible alarm cycle.

Nuisance Alarm-When a Chexit is located in a public area, it can be desirable to limit false alarms. If the Nuisance Audible and Nuisance Delay options are set to off, the device will go into alarm as soon as the push pad is touched (when armed). Turning the Nuisance Delay on will require the push pad to be pressed for 2 seconds before the Chexit goes into alarm. If the Nuisance Audible and Nuisance Delay are both on, the alarm will sound as soon as the push pad is pressed, but the alarm sequence will stop unless the push pad is held for 2 seconds or more. Remote

Alarm- A set of relay contacts (rated 1 ampere, 24 VDC) are provided to give external alarm indication. These contacts close when the device is in an irreversible alarm condition (If Nuisance Audible is enabled, they will not close until the push pad has been held for more than 2 seconds). These contacts can be used to drive a horn, lamp, or other indicative device.

Key Switch- The Key Switch provides the means to arm, disarm, or reset the Chexit. The key can be removed in either the Arm or Disarm position. In cases where the key switch is not used for controlling the device, a blank cylinder can be used.

Indicator Lamp- The status of the Chexit can be determined by the Indicator Lamp. A masked bezel design provides wide angle viewing in any lighting condition. When the lamp is off, this indicates the device is disarmed and is functioning as a normal exit device (no delay). A continuously on lamp indicates the device has just been armed and as soon as the selectable rearm timer expires, the device will arm. A slow flashing lamp indicates the device is armed. A fast flashing indicator lamp indicates the device is in alarm.

Internal Horn- Whenever the device is in alarm or the push pad is pressed the internal horn will sound. The volume level of this horn exceeds 85 db at 6 feet. The user can select whether or not this horn sounds during a fire alarm condition.

Door Position Input-An external door position switch can be connected to the Chexit. Doing this gives added security to the opening and is recommended. If a door position switch is used, it will cause the alarm to sound if the door is not closed when the device is armed; it will sound the alarm if the door is forced open while the device is armed; it will provide anti-pass-back by cutting short the rearm time.

External Inhibit Input- This optional input is provided to allow remote override of the Chexit in the armed condition. It also allows remote reset of the Chexit in an alarmed condition. Typical device connections include card readers, wall-mounted key switches, or a remote security console. This input is controlled with a Normally closed switch (open = disarmed).

Fire Alarm Input- This input disables the Chexit immediately upon a fire alarm. The building's fire alarm system should provide normally closed contacts which open on alarm.

Internal Auxiliary Lock- The Auxiliary Lock is engaged when the Chexit is armed. The locking mechanism is specifically designed to hold securely even when the exit device is struck with forceful blows. The mechanism will also release upon command irregardless of the force applied to the push pad. An override spring prevents damage to internal components when more than 75 pounds of force are exerted on the push pad.
