Von Duprin DE5300 Logic Controller, For Delayed Exit Devices

Von Duprin DE5300 Logic Controller, For Delayed Exit Devices

Product Details

DE5300 Delayed Egress System Designed for controlled egress applications when used in conjunction with a magnetic lock. It meets both life safety and security needs, as well as the requirements of NFPA for "Special Locking Arrangement" and IBC "Special Egress-Control Devices". All control units, auxiliary locking, local alarm and remote signaling outputs are selfcontained in the DE5300 assembly.

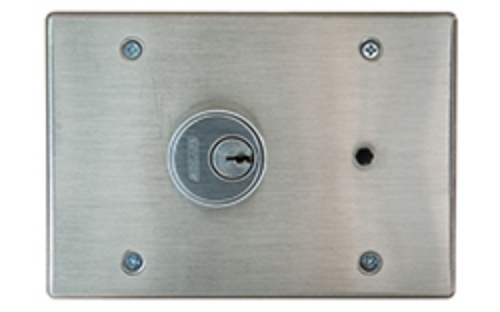

The DE5300 is commonly used on narrow stile doors where a standard or narrow stile Chexit is not practical. DE5300 Delayed Exit System uses a Chexit logic board and a Von Duprin RX-LC (low current request to exit) panic device to control a Schlage Electronics Direct Hold Magnetic Lock. The Chexit module for the DE5300 is installed in a control box and mounted in the wall adjacent to the door. Features and functions of the standard Chexit exit device are available on the DE5300. * *Specifications / Power supply requirements:*Size -3.75" x 5.57" x 2.50"Input voltage -24VDCInput current - 1AAlarm relay and Secure relay contact ratings *24VDC, 1AFire alarm, Inhibit and Door position switch inputs require normallyclosed dry contacts.
