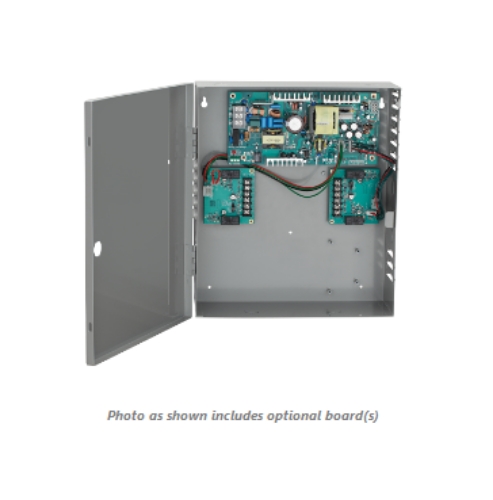

Von Duprin PS914-2RS-BBK Power Supply 2 Zone Control, Battery Backup Kit, Includes Two 7A/hour Batteries

Von Duprin PS914-2RS-BBK Power Supply 2 Zone Control, Battery Backup Kit, Includes Two 7A/hour Batteries

For Up To Two Electric Latch Retraction Exit Devices

Ps873 Replacement

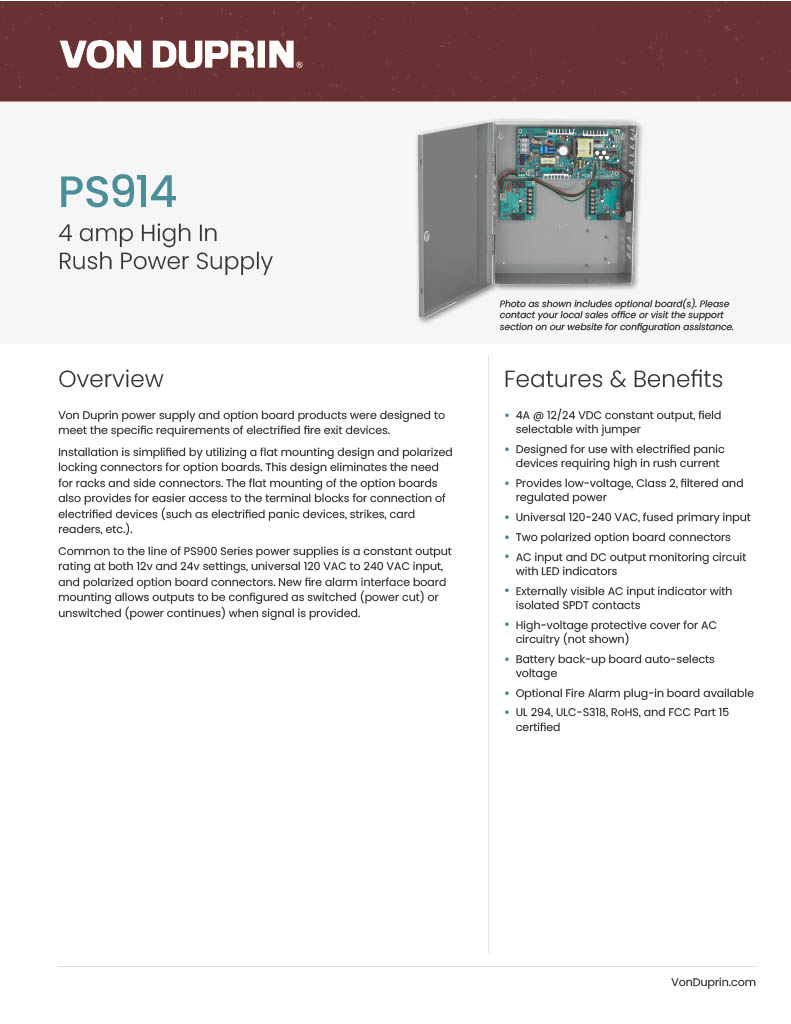

Von Duprin's power supply and option boards were designed to meet the specific requirements of electrified fire exit devices.

Installation is simplified by utilizing a flat mounting design and polarized locking connectors for option boards. This new design eliminates the need for racks and side connectors.

The flat mounting of the option boards also provides for easier access to the terminal blocks for connection of electrified devices (such as electrified panic devices, strikes, card readers, etc).

Common to the line of PS900 Series power supplies is a constant output rating at both 12v and 24v settings, universal 120 VAC to 240 VAC input, and polarized option board connectors. New fire alarm interface board mounting allows outputs to be configured as switched (power cut) or unswitched (power continues) when signal provided.

All PS900 Series of power supplies and option boards have been tested and certified to meet UL 294.

Features and Benefits

4A @ 12/24 VDC output, field selectable with jumper Designed with high in rush current for powering electrified panic devices Universal 120 -240 VAC input Low voltage DC, regulated and filtered Electronic power limiting foldback circuit for AC current overload protection Two polarized connectors for distribution boards Fused primary input AC status monitor - isolated SPDT contacts AC input and DC output LED status indicators Cover mounted AC input indication Hinged cover w/ lock down screws High voltage protective cover

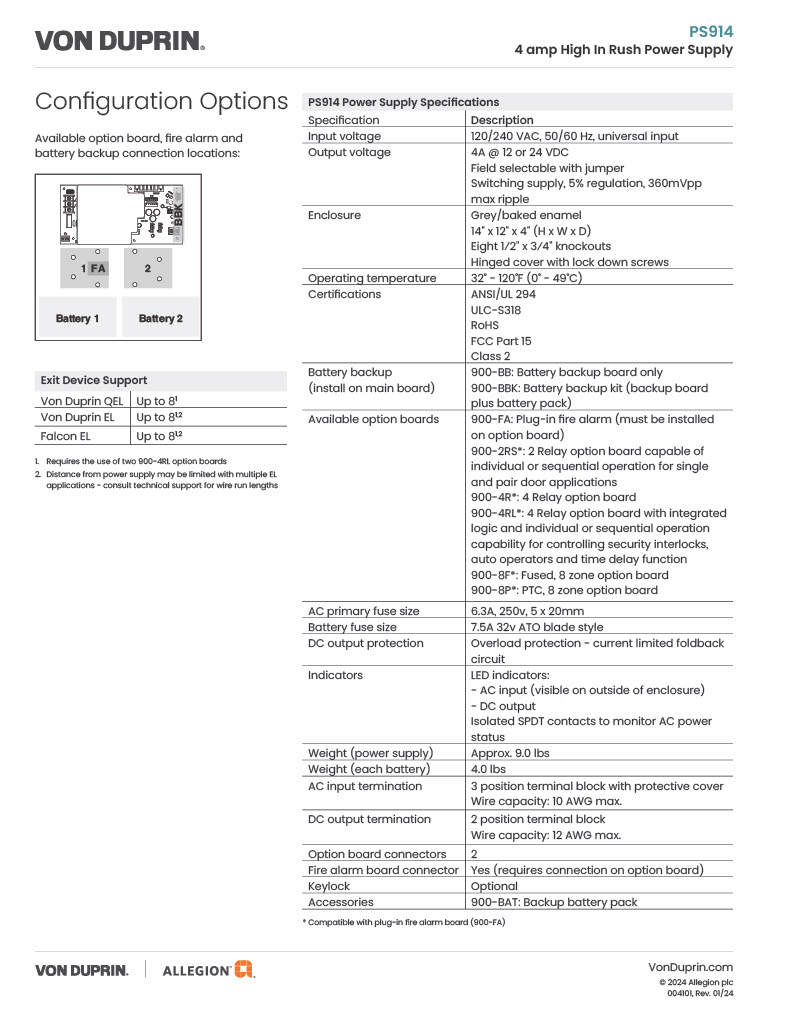

Model: Von Duprin PS9142RSBBK

Input Voltage: 120/240 VAC, 50/60 Hz, universal input

Output Voltage: 4A @ 12 or 24 VDC Field selectable with jumper Switching supply, 5% regulation, 360mVpp max ripple

Enclosure: Grey / Baked enamel 14"H x 12"W x 4"D Eight 1/2" x 3/4" Knockouts Hinged cover with lock down screws

Operating Temperature: 32 -120 F (0 -49 C)

Certifications: UL 294 RoHS FCC Part 15 Class 2

Option Board Compatibility: 900-BB: Battery Backup 900-BBK: Battery Backup Kit (backup board and battery pack)

900-FA: Fire Alarm (Must be installed on distribution boards)

900-2RS: 2 Relay Control Board 900-4R: 4 Relay Output Board 900-4RL: 4 Relay Logic Board 900-8F: Fused 8 Zone Distribution Board 900-8P: PTC 8 Zone Distribution Board

AC Primary Fuse: Size  6.3A, 250v, 5 x 20mm SLOW-BLOW

Battery Fuse Size: 7.5A 32v ATO blade style

DC Output Protection: Overload protection - current limited foldback circuit

Indicators:  LED indicators  -AC input (visible on outside of enclosure)  -DC output Isolated SPDT contacts to monitor AC power status

Weight (Power Supply)  Approx. 9.0 lbs

Weight (Each Battery)  4.0 lbs

AC Input Termination 3 position terminal block with protective cover Wire capacity: 10 AWG max.

DC Output Termination: 2 position terminal block Wire capacity: 12 AWG max.

Distribution board connectors: 2

Fire Alarm board connector: No

Keylock Optional
