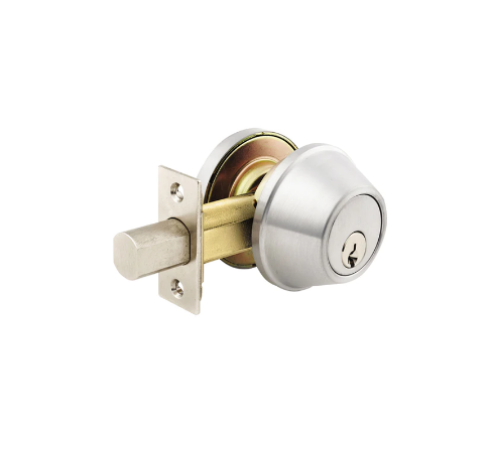

Arrow D61 Single Cylinder Deadbolt

Arrow D61, Grade 1,*Single Cylinder Deadbolt -ANSI-*E0151

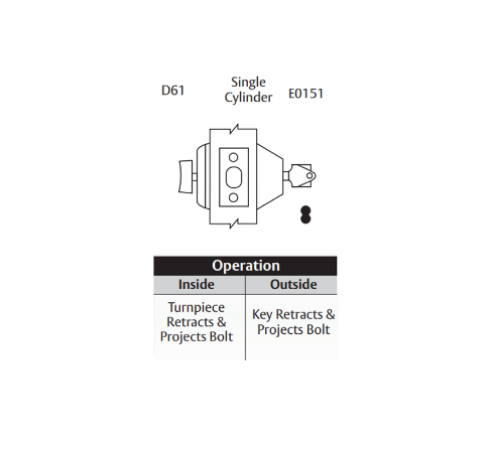

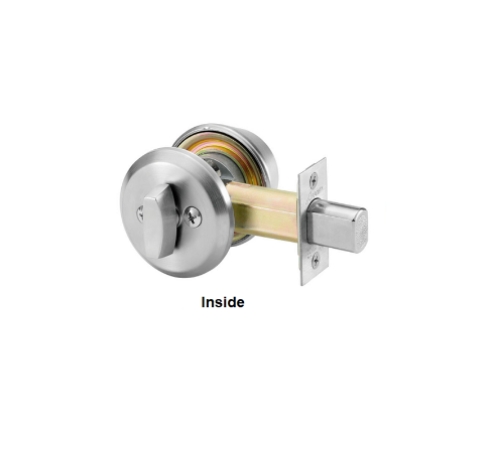

Throw or retract bolt by key outside, thumbturn inside.

Housing:Two-piece housing, with free-spinning outer ring to prevent wrenching. Concealed mounting screws are standard on double cylinder functions.

Deadbolt:1" (25.40 mm), solid steel deadbolt throw with hardened steel pin.

Backset:2-3/8" (60.32 mm), 2-3/4" (69.85 mm).

Deadbolt fronts:2-1/4" (57.15 mm) x 1" (25.40 mm) standard for 2-3/8" (60.32 mm) backset, 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm) standard for 2-3/4" (69.85 mm) backset. Drive-in deadbolts are available.

Doors:1-3/8" (34.925 mm) to 1-3/4" (44.45 mm) thick standard.

Strikes:Supplied standard with two strikes. #345 security strike for steel frame. #346 security strike for wood frame.

Handing:All functions are reversible.

Cylinder, Standard:Solid brass, ArrowAkeyway, drilled for 6 pins, pinned to 5. Supplied with two keys.

Cylinder Options:Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Bestor Falcontype cores. ASSA high security cylinders are available.

Finish: 03 - Bright Brass (US3) 04 - Satin Brass (US4) 05A - Antique Brass (US5) 10 - Satin Bronze (US10) 10B - Dark Oxide Bronze, Oil Rubbed  (US10B) 26 - Bright Chromium Plated (US26) 26D - Satin Chromium Plated (US26D)

Model:D613, D614, D615A, D6110, D6110B, D6126, D6126D, D61IC3, D61IC4, D61IC5A, D61IC10, D61IC10B, D61IC26, D61IC26D.

ANSIA156.5, Auxiliary Locks, Grade 1

UL- Underwriters Laboratories (UL and CUL) listed for use on A label or lesser doors when used in conjunction with a rated primary latching device
