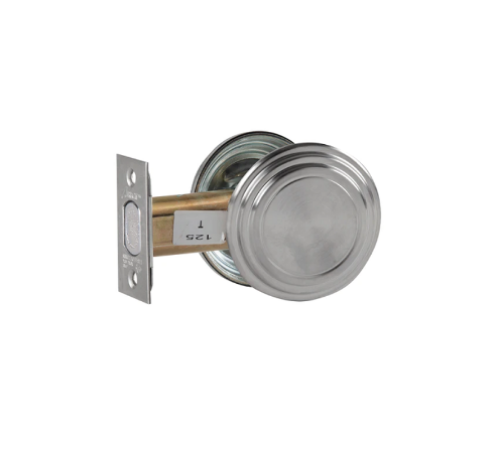

Arrow E60 Exit Deadbolt

Arrow E60 Exit Deadbolt*-ANSI-*E01112

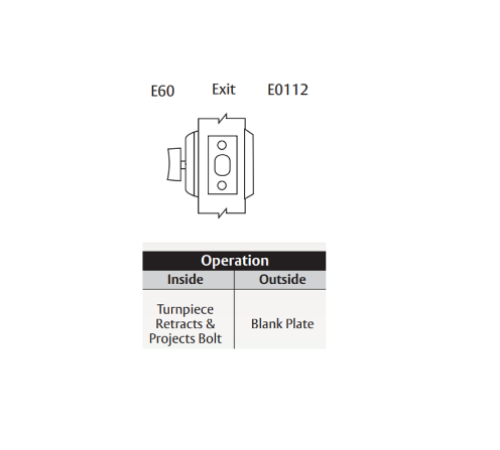

Dead bolt operated by turn piece from inside. Blank plate on outside.

HousingTwo-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.

Thru-boltingsupplied with two 1/4" (6.35mm) steel thru-bolts.

Deadbolt1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin insert.

Backset2-3/8" (60.32mm), 2-3/4" (69.85mm)

Deadbolt Fronts2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8" (60.32mm) backset, 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset. Drive-in deadbolts are available.

Doors1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard.

StrikesSupplied standard with two strikes. #345 security strike for steel frame. #346security strike for wood frame.

HandingAll functions are reversible.

Finish: 03 - Bright Brass (US3) 04 - Satin Brass (US4) 05A - Antique Brass (US5) 10 - Satin Bronze (US10) 10B - Dark Oxide Bronze, Oil Rubbed  (US10B) 15  - Nickel Plated (US15) 26 - Bright Chromium Plated (US26) 26D - Satin Chromium Plated (US26D)

Model:E603, E604, E605A, E6010, E6010B, E6026, E6026D

ANSI -  A156.5, Auxiliary Locks, Grade 2

UL - Underwriters Laboratories (UL and CUL) listed for use on 3 hour fire doors when used in conjunction with a rated primary latching device.
