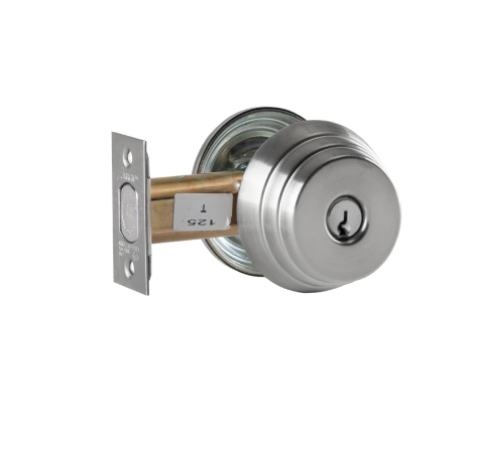

Arrow E64 Classroom Deadbolt

Arrow E64 Classroom Deadbolt*-ANSI-*E0172

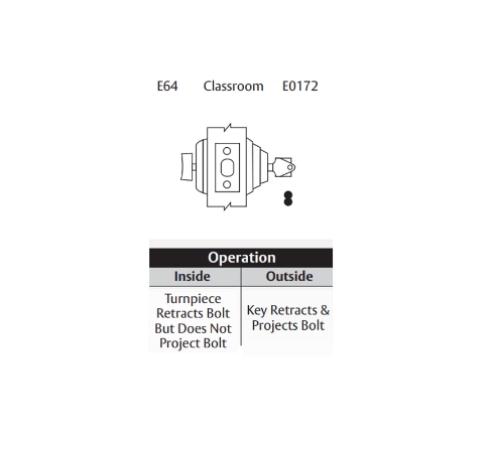

Dead bolt operated by key from outside. Turn piece retracts dead bolt but does not project it.

HousingTwo-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.

Thru-boltingsupplied with two 1/4" (6.35mm) steel thru-bolts.

Deadbolt1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin insert.

Backset2-3/8" (60.32mm), 2-3/4" (69.85mm)

Deadbolt Fronts2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8" (60.32mm) backset, 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset. Drive-in deadbolts are available.

Doors1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard.

StrikesSupplied standard with two strikes. #345 security strike for steel frame. #346 security strike for wood frame.

HandingAll functions are reversible.

Cylinder, StandardSolid brass, ArrowAkeyway, drilled for 6 pins, pinned to 5. Supplied with two brass keys. Available in Schlage CS keyway and other competitive keyways.

Cylinder OptionsAccepts 6 or 7 pin, small format, interchangeable cores. Supplied less cores.Will accept Best or Falcon cores.

Finish: 03 - Bright Brass (US3) 04 - Satin Brass (US4) 05A - Antique Brass (US5) 10 - Satin Bronze (US10) 10B - Dark Oxide Bronze, Oil Rubbed  (US10B) 15  - Nickel Plated (US15) 26 - Bright Chromium Plated (US26) 26D - Satin Chromium Plated (US26D)

Model:E643, E644, E645A, E6410, E6410B, E6426, E6426D, E64IC3, E64IC4, E64IC5A, E64IC10, E64IC10B, E64IC26, E64IC26D.

ANSI -  A156.5, Auxiliary Locks, Grade 2

UL - Underwriters Laboratories (UL and CUL) listed for use on 3 hour fire doors when used in conjunction with a rated primary latching device.
