Product Details

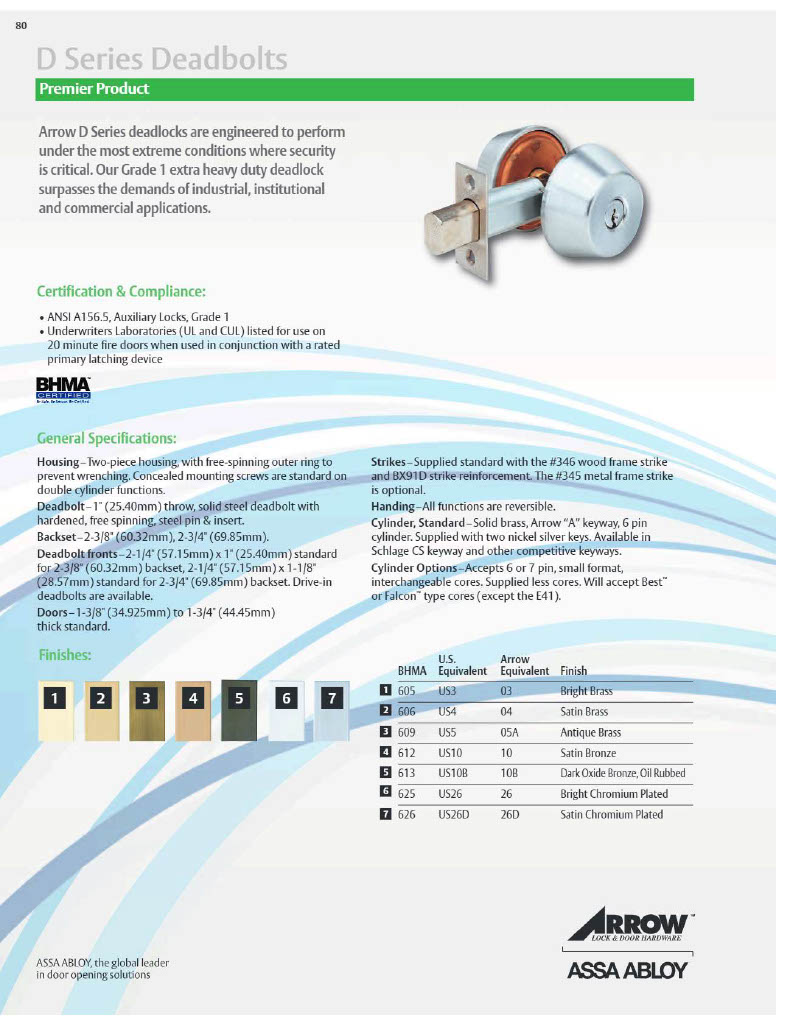

Arrow D64 Classroom Deadbolt*-ANSI-*E0171

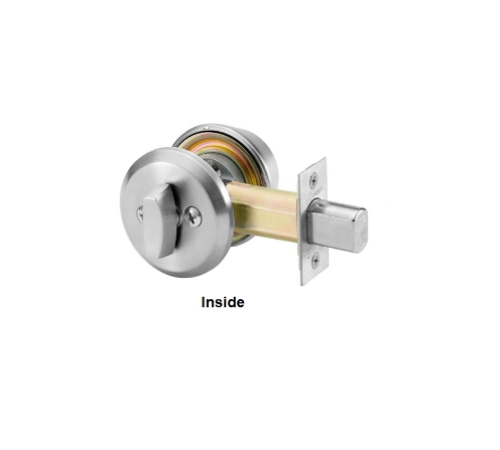

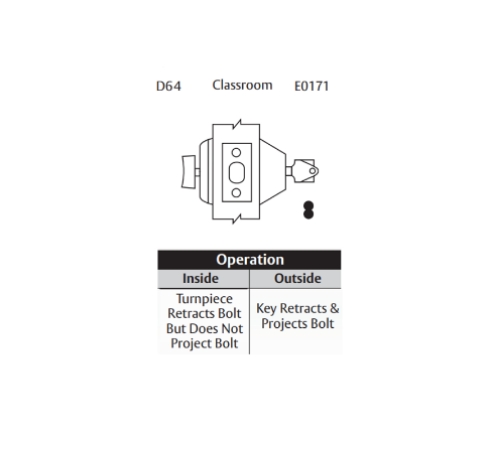

Throw or retract bolt by keyThumbturn will not throw bolt, only retract.
Housing:Two-piece housing, with free-spinning outer ring to prevent wrenching. Concealed mounting screws are standard on double cylinder functions.
Deadbolt:1" (25.40 mm), solid steel deadbolt throw with hardened steel pin.
Backset:2-3/8" (60.32 mm), 2-3/4" (69.85 mm).
Deadbolt fronts:2-1/4" (57.15 mm) x 1" (25.40 mm) standard for 2-3/8" (60.32 mm) backset, 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm) standard for 2-3/4" (69.85 mm) backset. Drive-in deadbolts are available.
Doors:1-3/8" (34.925 mm) to 1-3/4" (44.45 mm) thick standard.
Strikes:Supplied standard with two strikes. #345security strike for steel frame. #346security strike for wood frame.
Handing:All functions are reversible.
Cylinder, Standard:Solid brass, ArrowAkeyway, drilled for 6 pins, pinned to 5. Supplied with two keys.
Cylinder Options:Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Bestor Falcontype cores. ASSA high security cylinders are available.
Finish:
03 - Bright Brass (US3)
04 - Satin Brass (US4)
05A - Antique Brass (US5)
10 - Satin Bronze (US10)
10B - Dark Oxide Bronze, Oil Rubbed (US10B)
26 - Bright Chromium Plated (US26)
26D - Satin Chromium Plated (US26D)

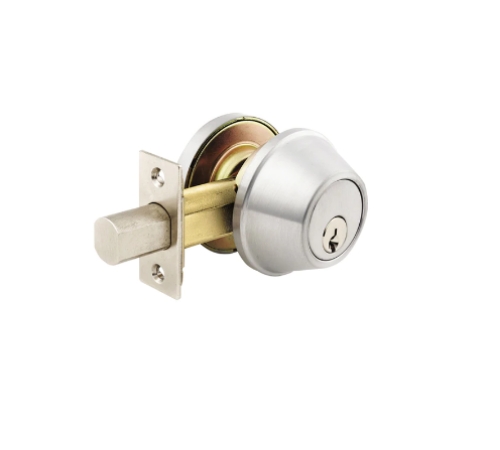

Model:D643, D644, D645A, D6410, D6410B, D6426, D6426D, D64IC3, D64IC4, D64IC5A, D64IC10, D64IC10B, D64IC26, D64IC26D.
