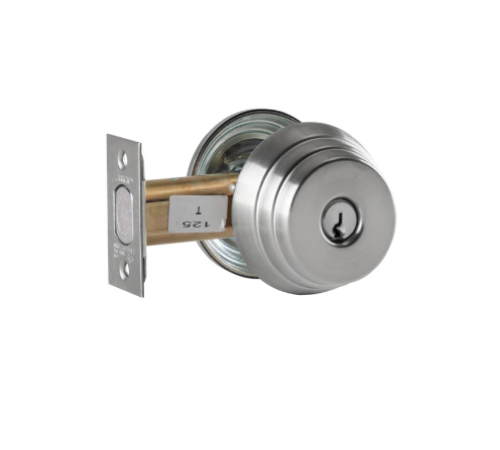

Arrow E62 Double Cylinder Deadbolt

Arrow E62, Grade 2,*Double Cylinder Deadbolt -ANSI-*E0142

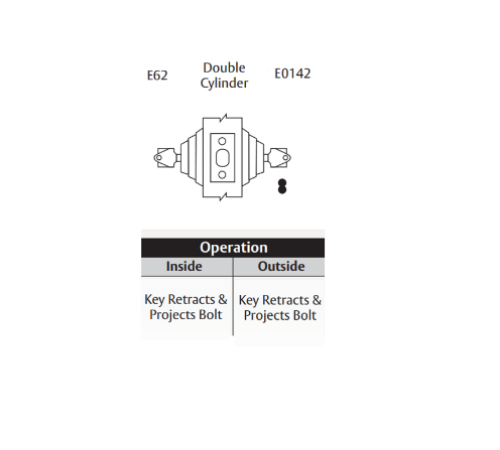

Dead bolt operated by key from either side.

HousingTwo-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.

Thru-boltingsupplied with two 1/4" (6.35mm) steel thru-bolts.

Deadbolt1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin insert.

Backset2-3/8" (60.32mm), 2-3/4" (69.85mm)

Deadbolt Fronts2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8" (60.32mm) backset, 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset. Drive-in deadbolts are available.

Doors1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard.

StrikesSupplied standard with two strikes. #345 security strike for steel frame. #346security strike for wood frame.

HandingAll functions are reversible.

Cylinder, StandardSolid brass, ArrowAkeyway, drilled for 6 pins, pinned to 5. Supplied with two brass keys. Available in Schlage CS keyway and other competitive keyways.

Cylinder OptionsAccepts 6 or 7 pin, small format, interchangeable cores. Supplied less cores.Will accept Best or Falcontype cores.

Finish: 03 - Bright Brass (US3) 04 - Satin Brass (US4) 05A - Antique Brass (US5) 10 - Satin Bronze (US10) 10B - Dark Oxide Bronze, Oil Rubbed  (US10B) 15  - Nickel Plated (US15) 26 - Bright Chromium Plated (US26) 26D - Satin Chromium Plated (US26D)

Model:E623, E624, E625A, E6210, E6210B, E6226, E6226D, E62IC3, E62IC4, E62IC5A, E62IC10, E62IC10B, E62IC26, E62IC26D.

ANSI -  A156.5, Auxiliary Locks, Grade 2

UL - Underwriters Laboratories (UL and CUL) listed for use on 3 hour fire doors when used in conjunction with a rated primary latching device.
